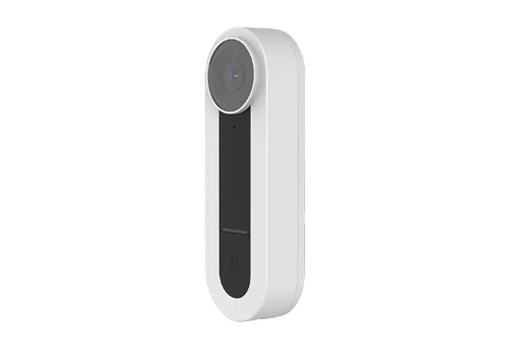

Bell 22F
Chuông cửa Wi-Fi 5MP
- 5MP (2592*1944)@25fps
- Chuẩn nén H.265, H.264
- Tích hợp Micro và loa
- Hỗ trợ chuông không dây
- Khoảng cách hồng ngoại 10m
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| Image Sensor | 1/2.7” 5Megapixel CMOS | ||||
| Effective Pixels | 2592(H) x 1944(V) | ||||
| Min. Illumination | Color 0.1Lux@F2.0, Black/White 0.01Lux@F2.0 |
||||
| IR Distance | Night visibility up to 10m | ||||
| Day/Night | Auto(ICR)/Color/B&W | ||||
| WDR | DWDR | ||||
| Lens&FOV | 2.4mm@F2.0, 90°/90°/135° | ||||
| Compression | H.265 | ||||
| Bit Rate | 32Kbps~2Mbps | ||||
| Frame Rate | 1~25fps | ||||
| Dual Stream | Yes | ||||
| Audio Input/Output | Built-in mic/speaker | ||||
| Alarm Trigger | Button triggering, motion detection | ||||
| Communication Protocol | HTTP, TCP/IP, DHCP, DNS, RTSP | ||||
| Interface Protocol | Private | ||||
| Wireless | 2.4G WIFI (IEEE802.11b/g/n) | ||||
| Supported Mobile Phone OS | iOS 9 or later, Android 5 or later | ||||
| Security | AES128 | ||||
| Operating Temperature | -20 °C to 50 °C | ||||
| IP Rating | IP65 | ||||
| Power Supply | AC 8~26V, DC 5V/1A | ||||
| Consumption | Max. 4.5W | ||||
| Storage | SD card(Max.128G), Cloud storage, NVR | ||||
| Dimensions | 46 × 38× 137mm | ||||
| Net Weight | 130g | ||||
