E3

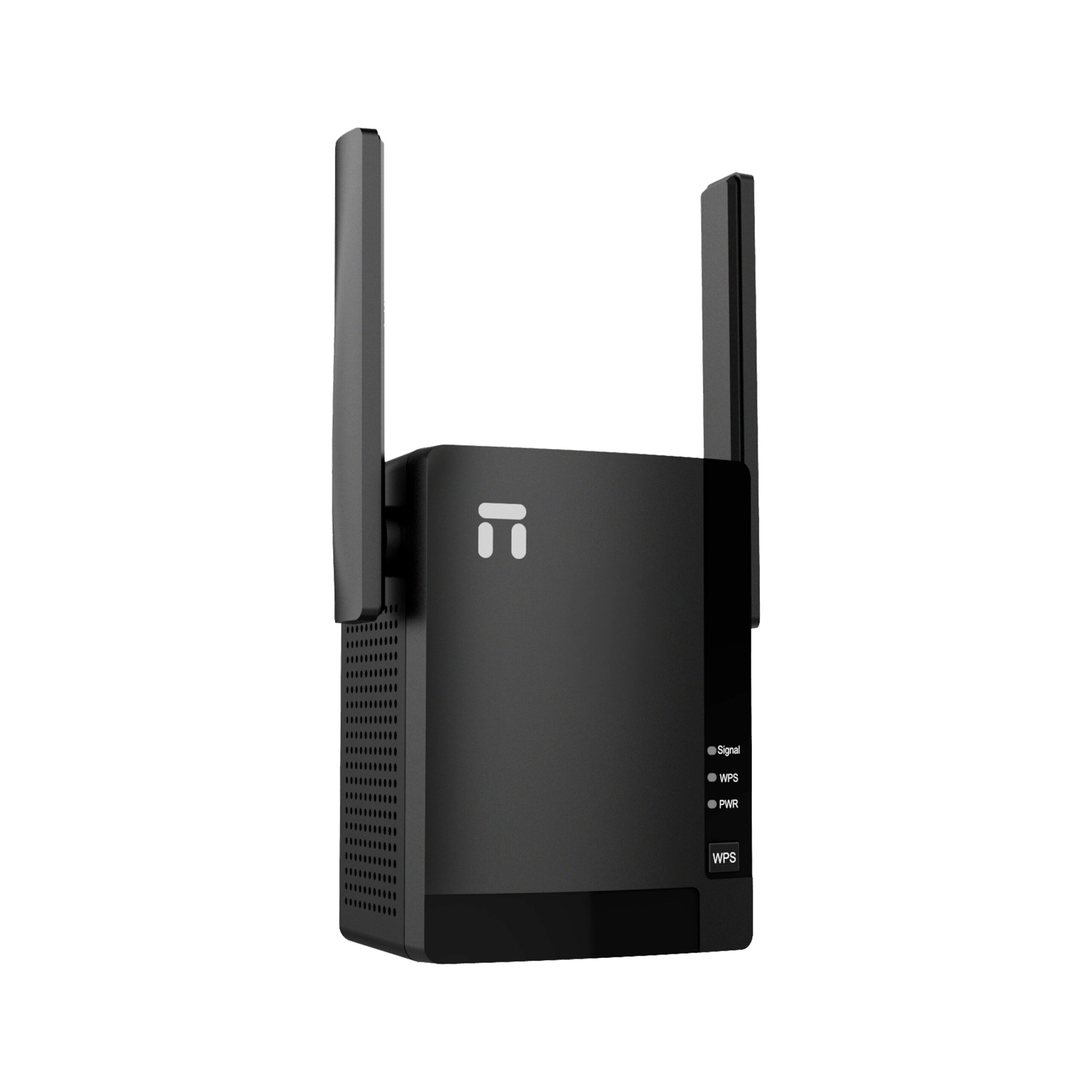

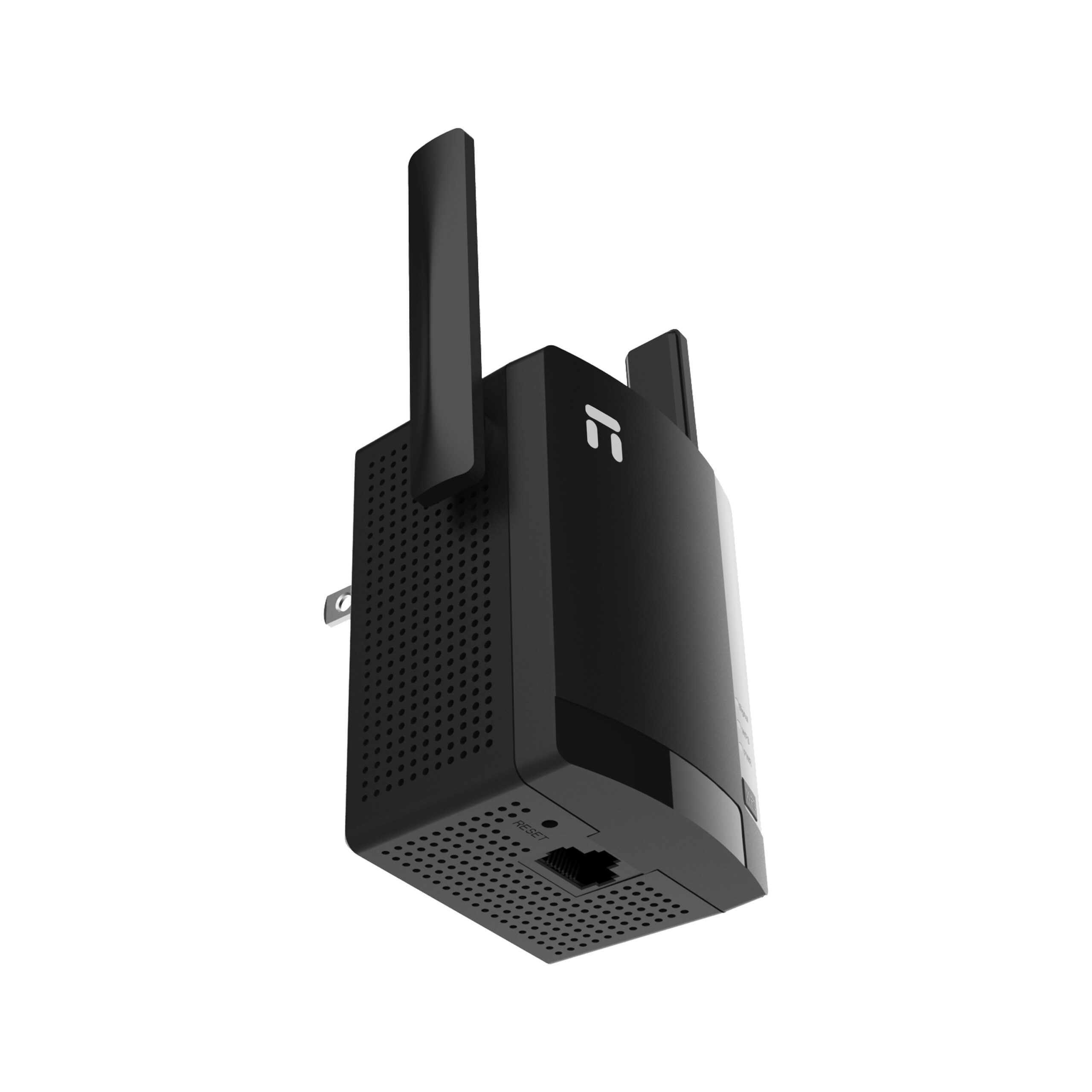

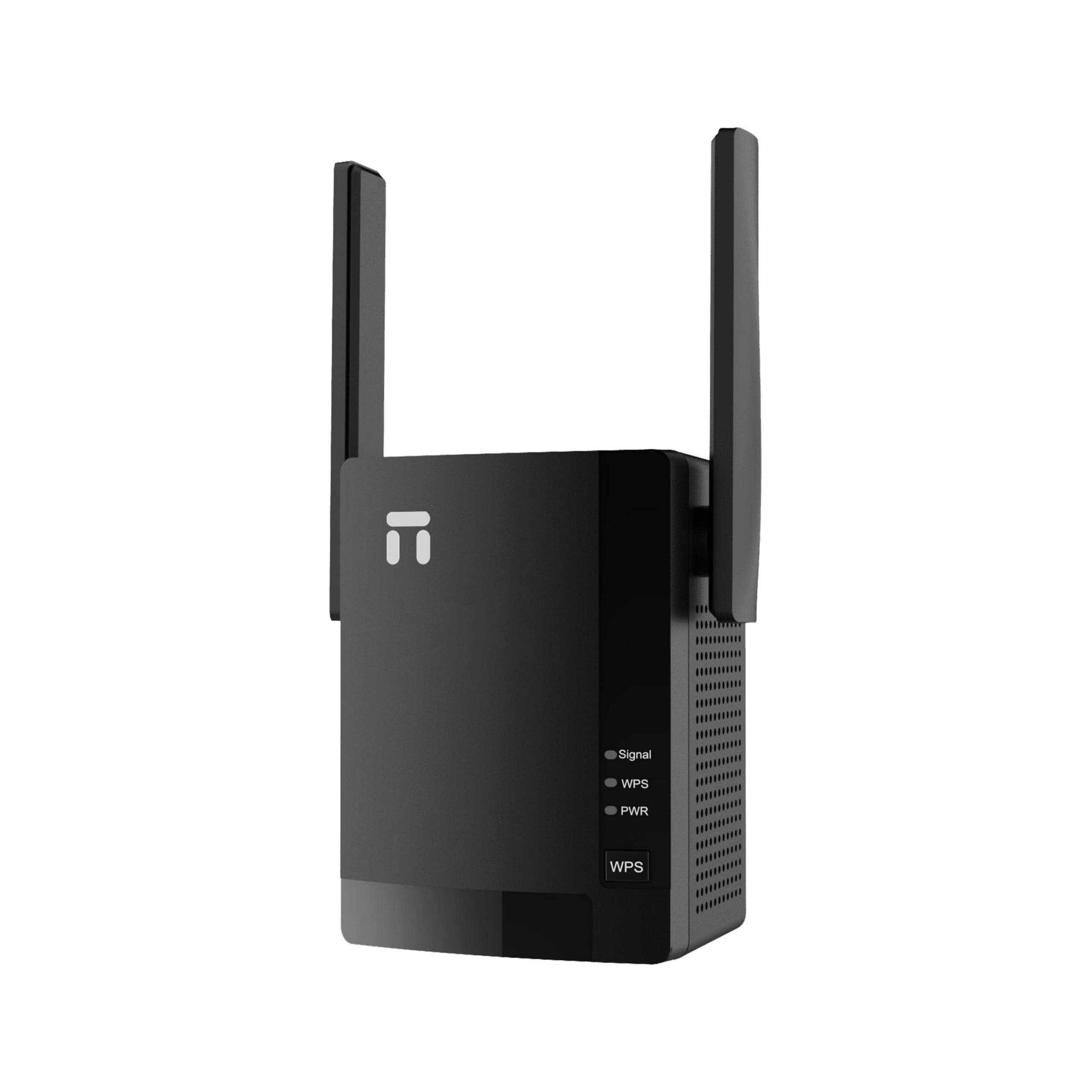

Thiết bị phát Wifi mini băng tần kép AC1200
- Băng tần kép (2.4Ghz:300Mbps+ 5GHz:867Mbps)
- Ăng-ten 4x5dBi;
- Kiểm soát băng thông thông minh
- Chế độ không dây: AP Router, Repeater
- Truy cập tối đa tối đa: 25-30 user
- 1 port x 10/100Mbps WAN
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Wireless
| Standards | IEEE 802.11b/g/n 2.4GHz IEEE 802.11a/n/ac 5GHz |
| Signal Rate | Up to 300Mbps2.4GHz UP to 867Mbps 5GHz |
| Frequency Range | 2.4~2.4835GHz and 5.150 ~5.85GHz |
| Transmit Power | 20dBm(MAX) |
| Data Transfer Rate | 802.11ac:80MHZ(433Mbps, 867Mbps) |
| 802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps) |
|
| Wireless Modes | AP, Repeater, Router |
| Wireless Security | None / WEP / WPA-PSK / WPA2-PSK / WPA2-Mixed IP Filtering/MAC Filtering/Domain Filtering/IPv6 Filtering |
Hardware
| Standards | IEEE 802.11b/g/n/ac |
| Interface | 1*10/100Mbps Auto MDI/MDIX RJ45 WAN port 2×2 11b/g/n/ac 2.4 / 5GHz dual band |
| LED Indicators | Power/Single Good/Single Poor/WPS |
| Buttons | 1x WPS button/1x Reset to default button |
| Antenna | 2x 3dBi 2.4G+3dBi 5G Dual band Omin Antenna |
| Power Supply | DC 3.35V/3A |
| Dimensions | 74 x 50 x1.6mm(L x W x H ) |
| Others | Support IPv4 / IPv6/DHCP server/LAN IP set /Firmware Upgrade/Diagnostic/Ping Watchdog /System Log |
Others
| Certification | FCC, CE, EAC |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package | 1* E3 1* Quick Installation Guide (Multilingual) |
