Hardware

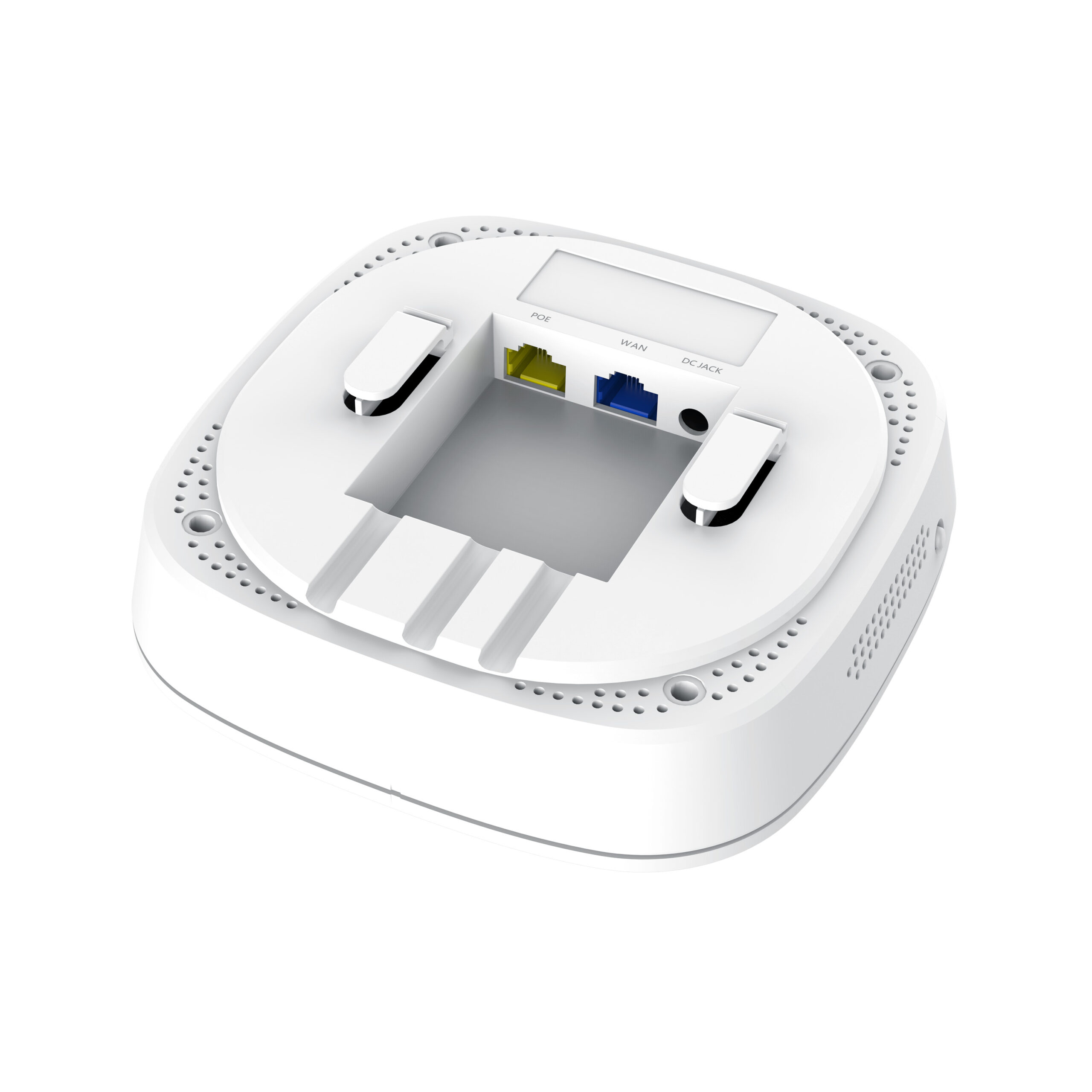

Interface | 1 * 10/100/1000M adaptive LAN port(POE power supply)
1 * 10/100/1000M adaptive WAN port |
Antenna | 4 * built-in high gain antenna |
Button | Default Button |
Power Supply | 48V standard POE or external DC 12V/1.5A power supply |
LED | 6 * red and blue LED |

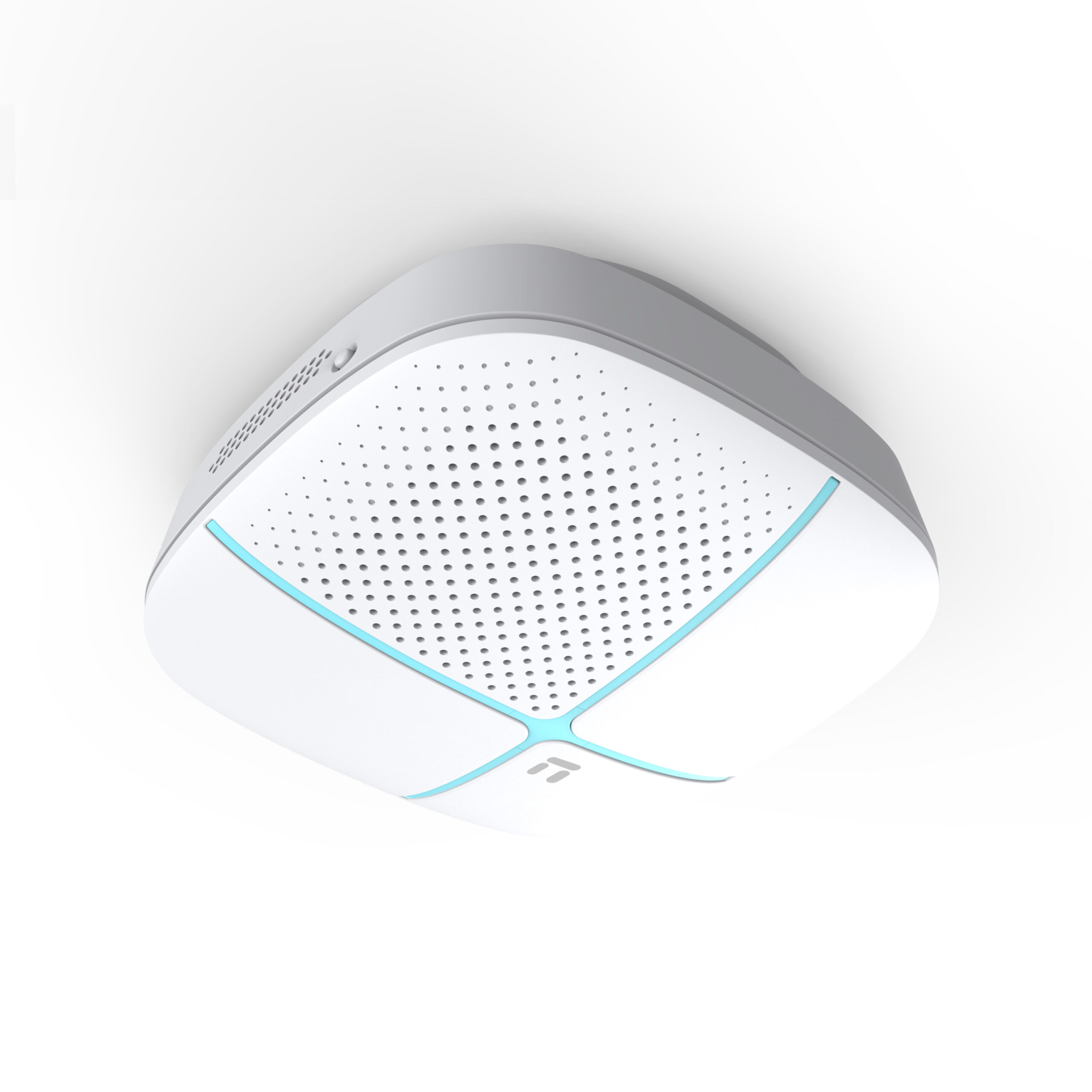

Mounting | Ceiling /Wall Mounting (Kits included) |
i
Memory | 128MB |
FLASH | 16MB |
Forwarding rate | 10/100/1000Mbps |
Wireless
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
Wireless Standards | IEEE802.11b/g/n/ac |
Features | Wireless terminal
Wireless network Intranet Settings Signal conditioning Host Black and white list Internet access Settings (routing mode/Bridge mode) Advanced Settings Port mapping Dynamic domain names(dyndns/noip/oray) Managing Passwords Time setting Initialization (Default restore) Schedule tasks (periodic restarts) Firmware upgrade (manual upgrade/online upgrade /AC upgrade) Dial-up log Device information Indicator light |
Others
Dimensions | 145 * 145 * 45mm |
Environment | Operating Temperature : 0℃ ~ 40℃
Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 90% RH non condensing |
