F2

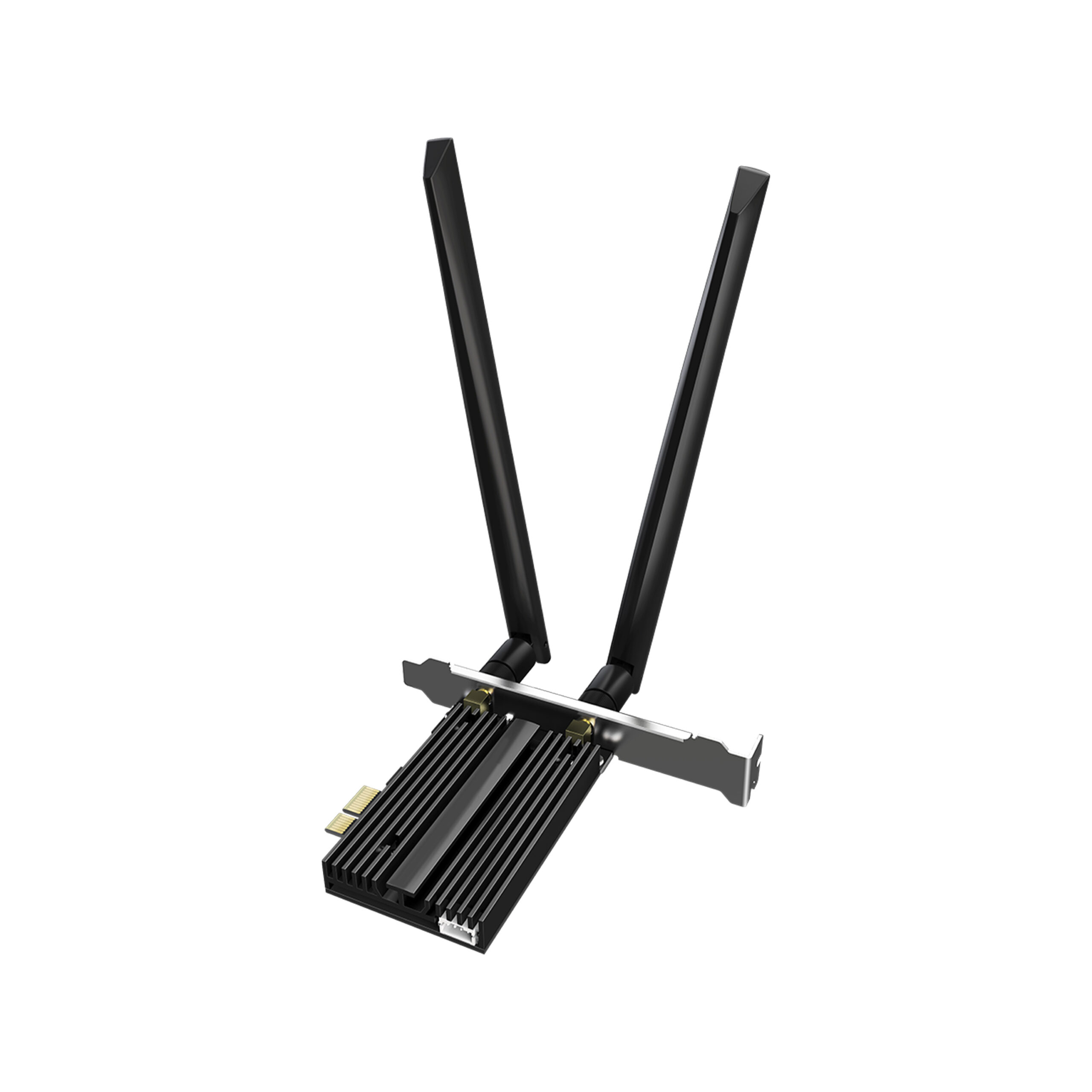

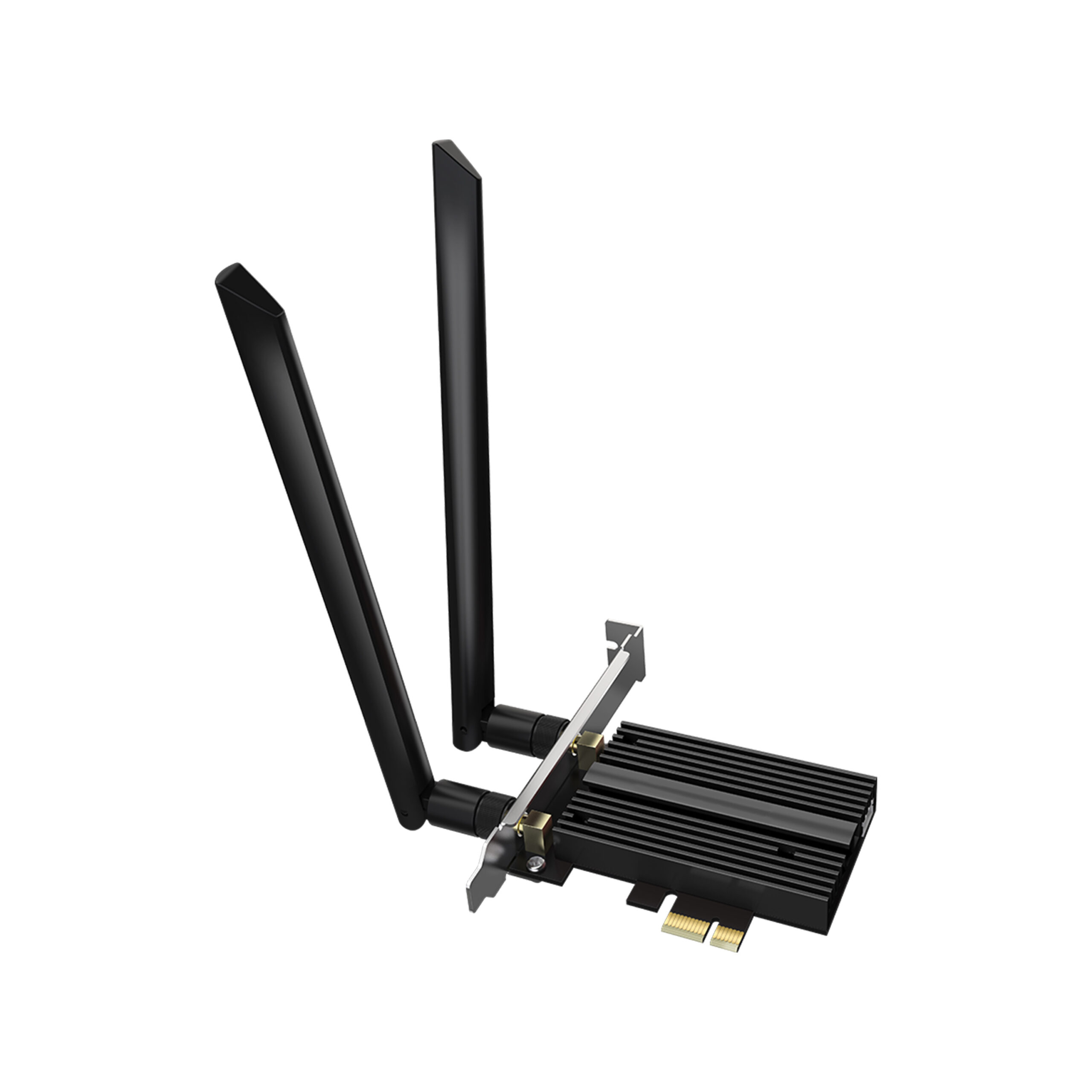

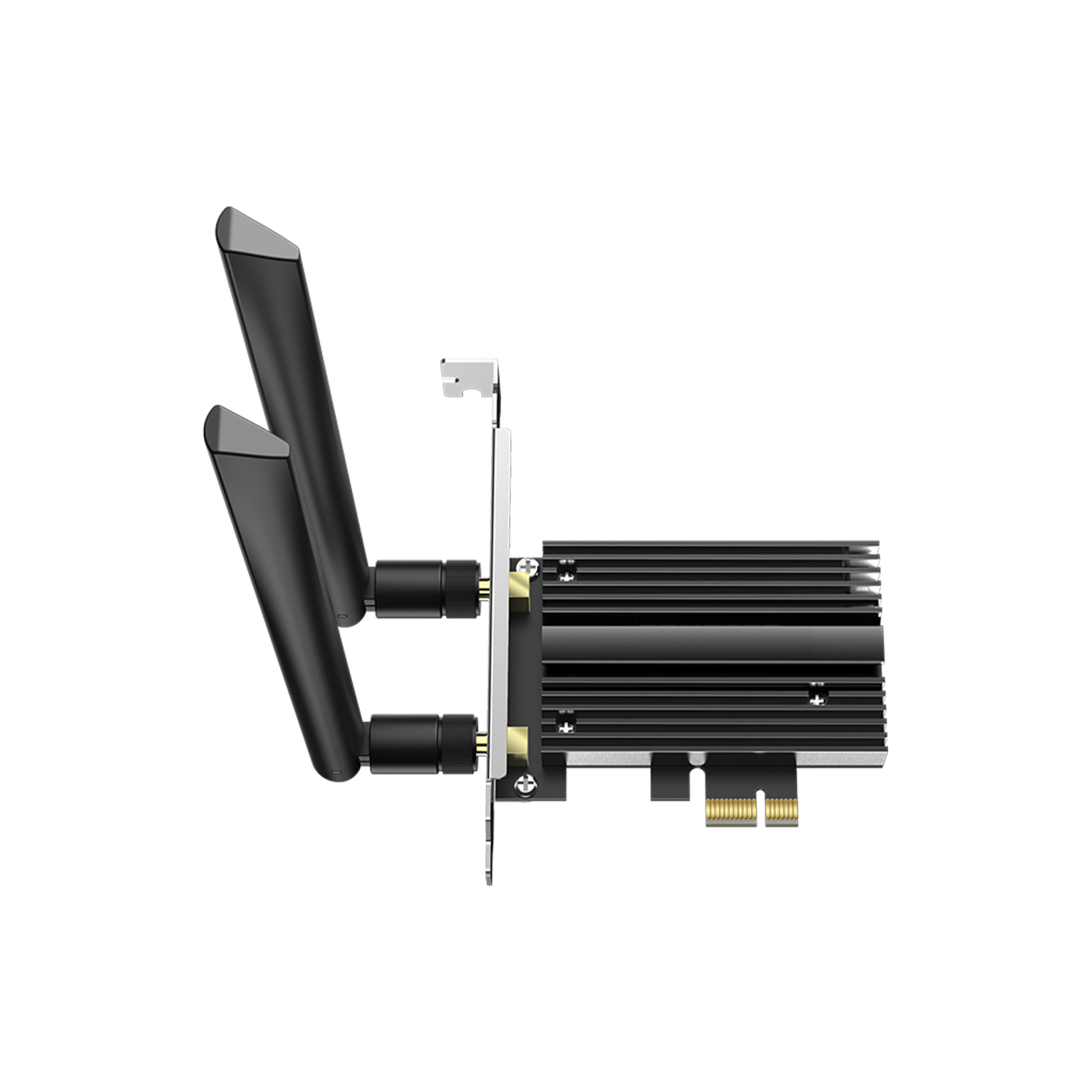

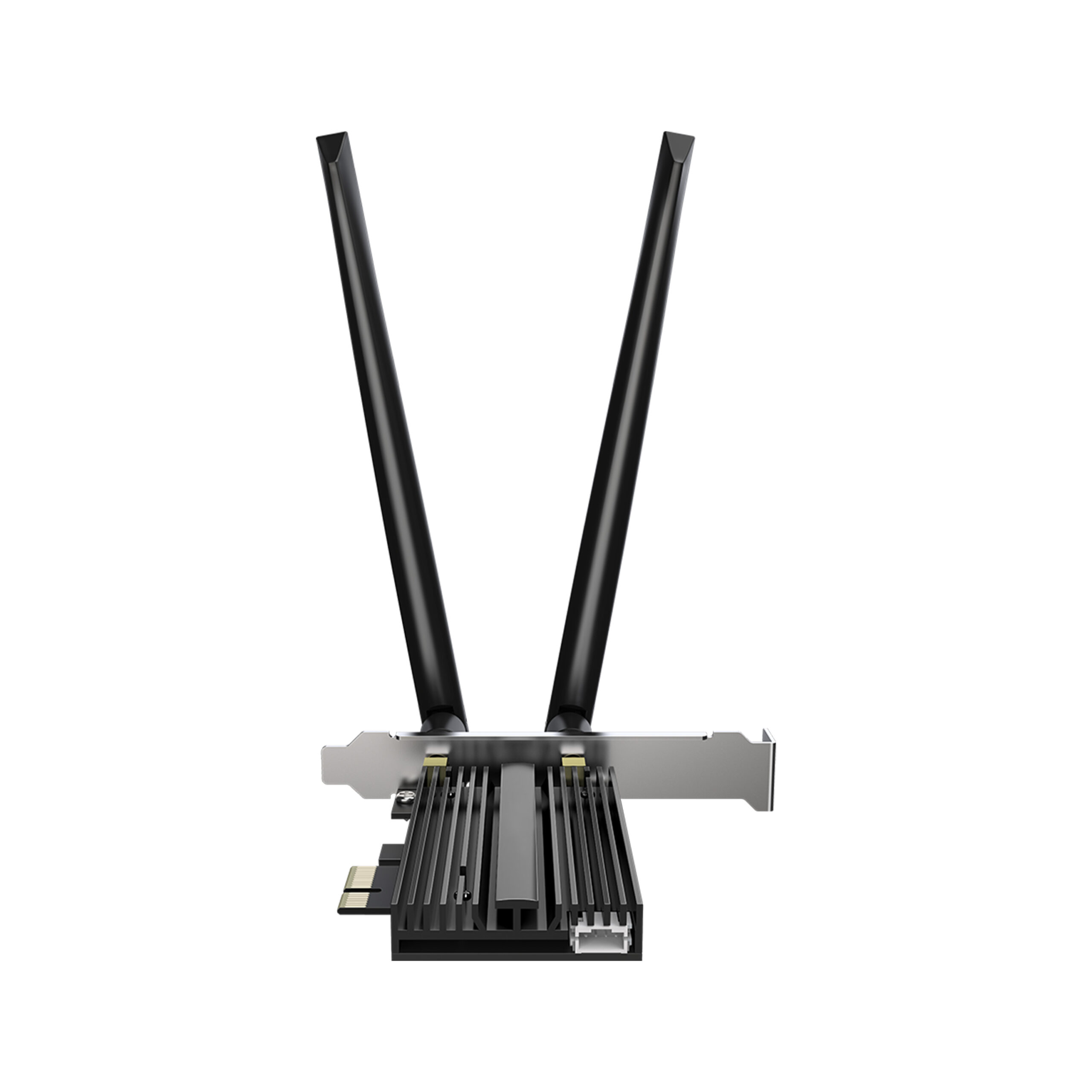

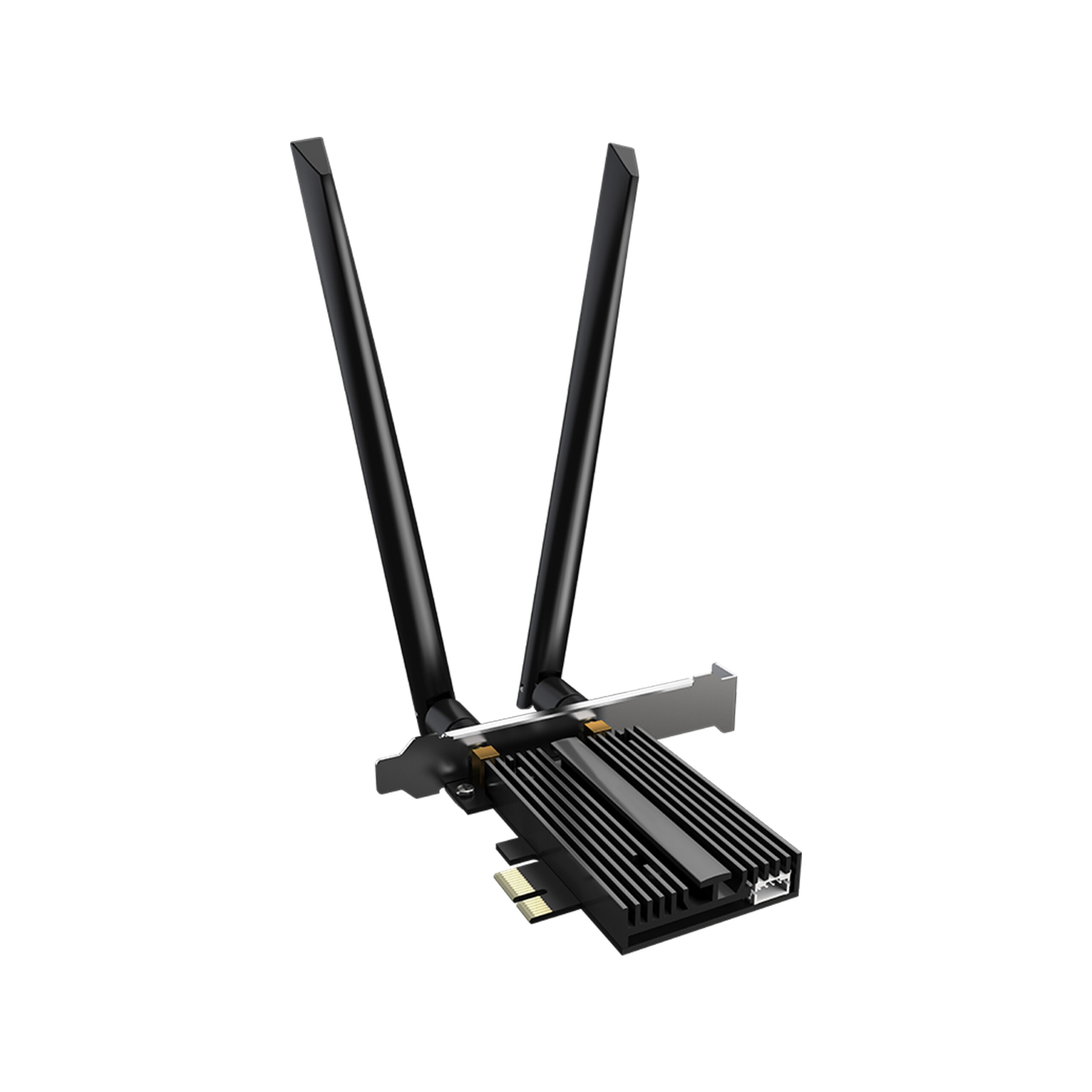

Card mạng Wireless PCI-E 5400Mbps
- Băng thông không dây (2.4Ghz:574Mbps + 5GHz:2402Mbps + 6GHz:2402Mbps)
- Ăng-ten 2*5dBi;
- Chuẩn không dây IEEE 802.11a/b/g/n/ac/ax
- Tương thích: Windows / Linux / Chrome
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Hardware
| Interface | PCI-E (Compatible Card slot: PCIE-16X,PCIE-4X,PCIE-8X,PCIE-1X; Graphics slot) |
| Blutooth | Blutooth 5.2 |
| Antenna Type | 2*5 dBi external antennas |
Button
| Dimensions | Size: 95*64mm; Antenna Size:173mm |
Wireless
| Wireless Standards | IEEE802.11a/b/g/n/ac/ax |
| Frequency | 2.412~2.484GHz
5.180~5.825GHz 6GHz |
| Data Rate | 6 GHz: 11ax: Up tp 2402Mbps 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Transmit Power | 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP) 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP) 6 GHz: 12dBm(FCC) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
Others
| Certification | CE,FCC |
| Package Contents | 1× F2 2× High-Gain Antennas 1× Low-Profile Bracket 1× Bluetooth Header Cable 1× Quick Installation Guide 1× Resource CD |
| System Requirements | Windows7 / 8 / 8.1 / 10(32 digit, 64 digit) / 11;
Windows XP, Mac, Linux systems need to download the |
| Environment | Operating Temperature: 0℃~40℃
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
