HC191@GHN-2C32S-OS

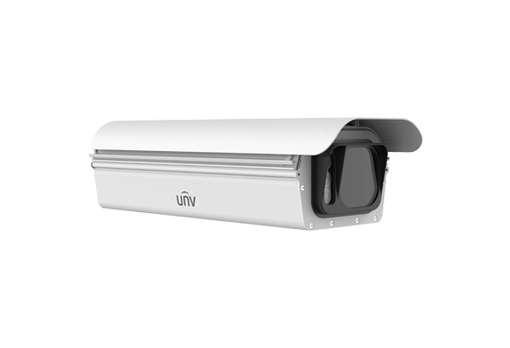

9MP Deep Intelligence Checkpoint Camera Unit(Sky-eye)
- Độ phân giải 9MP(4096×2160)@50fps
- Chuẩn nén H.265, H.264, MJPEG
- Phát hiện vi phạm: chạy quá tốc độ
- Nhận dạng đặc điểm của xe: biển số xe, màu xe, loại xe, logo, kiểu xe, v.v.
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| HC191@GHN-2C32S-OS | |
| Camera | |
| Sensor | 1.1’’ 9MP Global Shutter CMOS |
| Min. illumination | Color: 0.0001lx; black and white: 0.00005lx |
| Image settings | Shutter, gain, white balance, WDR |
| Image/video | |
| Acquisition format | 4096×2160@50fps |
| Video compression | H.265, H.264, MJPEG |
| Frame rate | Up to 50fps |
| Image resolution | 4096×2160 |
| Video resolution | Main stream: 4096×2160, 1920×1080, 1600×1200, 1280×720 Sub stream: 4096×2160, 1920×1080, 1600×1200, 1280×720, 720×576, 704×288, 352×288 Third stream: 720×576, 704×288, 352×288 |
| Video OSD | Supports various overlays such as date and time with adjustable font size, font style, font color, etc. |
| Image OSD | Supports various overlays with adjustable overlay position, overlay order, font size, font style, font color, etc. |
| ROI | Supports up to 8 ROIs |
| Functions | |
| Vehicle detection mode | Radar, induction loop, video |
| Illumination type | Built-in integrated strobe illuminator with adjustable brightness Optional external strobe illuminator or strobe and flash illuminator |
| Image composition | Support |
| Image size | Adjustable |
| Smart-PL | Built-in |
| Interface | |
| I/O control | 4 × synchronous signal output interface (switch) 8 × synchronous signal output interface (TTL) 8 × signal input interface (switch) 2 × standard relay interface Control interface: 4 × RS485, 1 × RS232 |
| Network | 2 × RJ45 10M/100M/1000M Base-T adaptive Ethernet interface |
| Reset button | 1 |
| Storage | |
| Front-end storage | 32GB eMMC, supports up to 256G micro SD (TF) card expansion |
| Automatic Network Replenishment (ANR) | Support |
| General | |
| Power supply | AC220V±25% |
| Power consumption | Camera 12W, heating 12W, fan 1W, built-in LED 10W |
| Dimensions | 530mm×211mm×149mm |
| Weight | 5.96kg |
| Operating environment | -40°C to 70°C, 10% to 90% RH (non-condensing) |
| Lightning and surge protection | Support |
| Ingress protection | IP66 |
| Certification | |
| EMC | CE LVD：IEC 62368-1:2014 |
| Safety | CE EMC：EN 55032:2015+A11:2020+A1:2020 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC 61000-3-2:2019+A1:2021 EN 50130-4:2011+A1:2014 |
| LPR | |
| Vehicle brand detection | Alfa Romeo,Aston Martin,Audi,Bentley,BMW,BYD,Chevrolet, Citroen,Ferrari,Fiat,Ford,Foton,Golden Dragon,Higer,Hino,Honda, Hyundai,Isuzu,Jaguar,Jeep,Kia,Land Rover,Lexus,Maserati,Maxus, Mazda,McLaren,Mercedes-Benz,MG,MINI,Mitsubishi,Nissan,Opel,ORA, Peugeot,Polestar,Porsche,Renault,Rolls-Royce,SEAT,SKODA,Smart, SsangYong,Subaru,Suzuki,Tesla,Toyota,Volkswagen,Volvo,Infinti,BAW,Dodge,DongFeng,FEIDIE,KingLong,Everus,Chery,SinoTruk,SAAB,Yutong,Proton,Chrysler,Daihatsu,Datsun,Geely,Hafei,Zotye,Man,Scion |
| Supports multiple countries | North America: USA, Canada Northeast Europe: Slovenia, Poland, Czech Republic, Slovakia, Latvia, Belarus, Ukraine, EU: France, Spain, Portugal, Germany, United Kingdom, Ireland, Bulgaria, romania, Hungary, Luxembourg, Serbia, Bosnia and Herzegovina, Greece, Croatia, Middle East: Iraq, Saudi Arabia, UAE (Dubai) Southeast Asia: Singapore, Malaysia, Indonesia, Northeast Asia: South Korea, Africa: Egypt |
