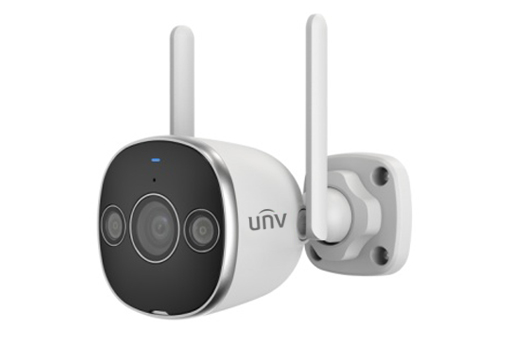

IPC-B2D-M3F4D
Camera Wi-Fi cố định ngoài trời 2MP
- 3MP (2304*1296)@25/20fps
- Ultra 265, H.265, H.264
- Tích hợp Micro và loa
- Smart IR, khoảng cách hồng ngoại 30m (98ft)
- Khoảng cách đèn LED 30m (98ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC-B2D-M3F3D | IPC-B2D-M3F4D | ||||||
| Camera | |||||||
| Sensor | 1/3.0″, 3.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.003 lux (F1.6 AGC ON) 0 lux with IR on |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| S/N | >52dB | ||||||
| WDR | DWDR | ||||||
| Lens | |||||||
| Lens Type | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||
| Iris | Fixed | ||||||
| Field of View (H) | 97.5° | 80.2° | |||||
| Field of View (V) | 52.9° | 42.9° | |||||
| Field of View (D) | 108.0° | 86.0° | |||||
| DORI | |||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.8mm | 46.7 | 18.7 | 9.3 | 4.7 | |||
| 4.0mm | 66.7 | 26.7 | 13.3 | 6.7 | |||
| Illuminator | |||||||
| IR Range | Up to 20m (66ft) | ||||||
| Warm Light Range | Up to 10m (33ft) | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 3MP (2304*1296) ), Max 25fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||||
| U-code | Support | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Video stream | Dual streams | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||
| Dewarping | N/A | ||||||
| HLC | N/A | ||||||
| BLC | N/A | ||||||
| Defog | Digital Defog | ||||||
| Events | |||||||
| Basic Detection | Motion detection, Ultra motion detection, Audio detection, Tampering alarm | ||||||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U, G.711A | ||||||
| Audio Bitrate | 64 Kbps | ||||||
| Two-way Audio | Support | ||||||
| Suppression | Support | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 128GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna | ||||||
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | ||||||
| Compatible Integration | API , SDK | ||||||
| User/Host | Up to 6 users. 2 user levels: administrator and common user | ||||||
| Client | Uniarch Client Uniarch APP |
||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | |||||||
| Audio I/O | N/A | ||||||
| Alarm I/O | N/A | ||||||
| Built-in Mic | Support | ||||||
| Built-in Speaker | Support | ||||||
| WIFI | Support | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
| Certifications | |||||||
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
||||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
||||||
| Safety | CE LVD (EN 62368-1) | ||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||
| Protection | IP67 (IEC 60529) | ||||||
| General | |||||||
| Power | DC 12V±25% | ||||||
| Power consumption: Max 5.7W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (L x W x H) | 148 × 78 × 78mm (5.8” × 3.1” × 3.1”) | ||||||
| Weight | 0.31 kg (0.68 lb) | ||||||
| Material | Metal + Plastic | ||||||
| Working Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 4KV | ||||||
| Reset Button | Support | ||||||
| LED indicator | 1, red/blue | ||||||
