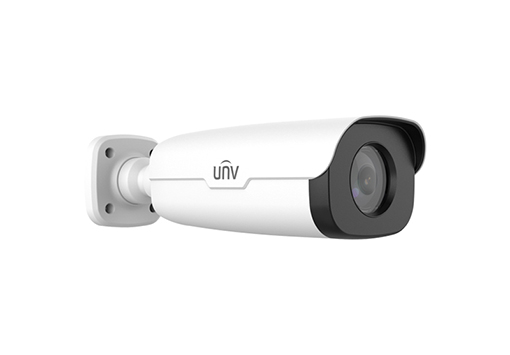

IPC254EB-DX22GK-I0
Camera IP LightHunter thân trụ zoom quang học 4MP
- 4MP (2688*1520)@30fps
- Ultra 265, H.265, H.264, MPEG
- Zoom quang học 22x
- Công nghệ True WDR 120dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Hồng ngoại 150m (492 ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC254EB-DX22GK-I0 | |
| Camera | |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Colour:0.001 lux (F1.5, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | 120dB |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| S/N | ＞56dB |
| Lens | |
| Focal Length | 6.5 ~ 143 mm |
| Digital Zoom | 16X |
| Optical Zoom | 22X |
| Iris | F1.5 |
| Field of View (H) | 3.49°~60.47° |
| Field of View (V) | 1.97°~36.30° |
| Field of View (D) | 4.12°~74.38° |
| DORI | |
| DORI Distance(Lens) | 6.5~143(mm) |
| DORI Distance(Detect) | 97.5m(319.9ft)~2145.0m(7037.4ft) |
| DORI Distance(Observe) | 39.0m(128.0ft)~858.0m(2815.0ft) |
| DORI Distance(Recognize) | 19.5m(64.0ft)~429.0m(1407.5ft) |
| DORI Distance(Identify) | 9.8m(32.0ft)~214.5m(703.7ft) |
| Illuminator | |
| Illumination Distance(IR) | 150 m (492.1 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Video | |
| Privacy Mask | Up to 4 areas |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple Streams |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 4MP (2688*1520), Max 30fps |
| Frame Rate-Sub Stream | 1080P (1920*1080), Max 30fps |
| Frame Rate-Third Stream | D1 (720*576), Max 30fps |
| Image | |
| Defog | Digital Defog |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | Support |
| Intelligent | |
| Exception Detection | Object Removed, Object Left Behind |
| People Counting | People counting, support people flow counting and crowd density monitoring |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
| Events | |
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output |
| Network | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 channel RS485 interface |
| Video Output | 1 BNC |
| Network | 1 x RJ45 10M/100M/1000M Base-TX Ethernet + 1 x 100M/1000M SFP |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | AC24V(±25%), PoE(IEEE 802.3at) |
| Power Consumption | Max 16W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | 395 x 137 x 112mm (15.6“ x 5.4“ x 4.4”) |
| Weight | 3.7kg(8.16lb) |
| Working Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
