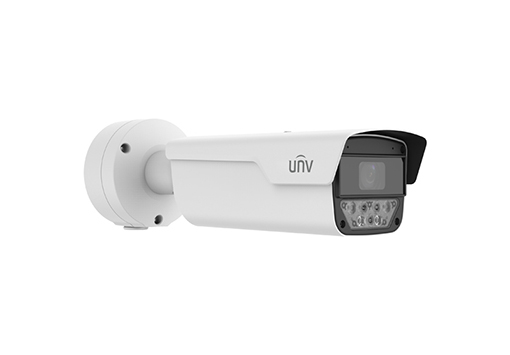

IPC264SA-AHDX4K-I1
Camera IP Dual-light thân trụ zoom quang học 4MP
- 4MP (2688*1520)@60fps
- Ultra 265, H.265, H.264, MPEG
- Zoom quang học 4x
- Công nghệ True WDR 130dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Tích hợp Micro và Loa
- Khoảng cách đèn LED 30m (98ft)
- Khoảng cách hồng ngoại 120m (394ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC264SA-AHDX4K-I1 | |
| Camera | |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Colour:0.001lux (F1.6, AGC ON) 0 lux with Light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 130dB |
| S/N | >56dB |
| Lens | |
| Focal Length | 8 ~ 32 mm |
| Iris Type | P-iris |
| Iris | F1.6 |
| Field of View (H) | 42.6°~15.2° |
| Field of View (V) | 23.5°~8.9° |
| Field of View (D) | 52.4°~17.9° |
| DORI | |
| DORI Distance(Lens) | 8~32(mm) |
| DORI Distance(Detect) | 165.7m(543.7ft)~444.4m(1458.1ft) |
| DORI Distance(Observe) | 66.3m(217.5ft)~177.8m(583.2ft) |
| DORI Distance(Recognize) | 33.1m(108.7ft)~88.9m(291.6ft) |
| DORI Distance(Identify) | 16.6m(54.4ft)~44.4m(145.8ft) |
| Illuminator | |
| Illumination Distance(IR) | 120 m (393.7 ft) |
| Illumination Distance(Warm Light) | 30 m (98.4 ft) |
| Wavelength | 750 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate-Main Stream | 4MP(2688*1520), Max 60fps |
| Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps |
| Frame Rate-Third Stream | D1 (720*576), Max 60fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| ROI | Up to 8 areas |
| Video Stream | Triple Streams |
| OSD | Up to 10 OSDs |
| Intelligent | |
| Traffic Monitoring | Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
| People Counting | People counting, support people flow counting and crowd density monitoring (Only Channel 1) |
| Image | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Flip Vertical, Flip Horizontal, Normal, 180°, 90°Clockwise, 90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Heatwave Reduction | N/A |
| Events | |
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| General | |
| Heater | Support |
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) |
| Power Consumption | Max 23W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | 406 x 126 x 130mm(16.0” x 5.0” x 5.1”) |
| Weight | 2.14kg(4.72lb) |
| Working Environment | -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| PTZ | |
| Home Position | Support |
| Interface | |
| Audio I/O | 2/1 |
| Alarm I/O | 3/2 |
| Serial Port | 1 channel RS485 interface |
| Built-in Mic | Built-in two mics |
| Built-in Speaker | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
