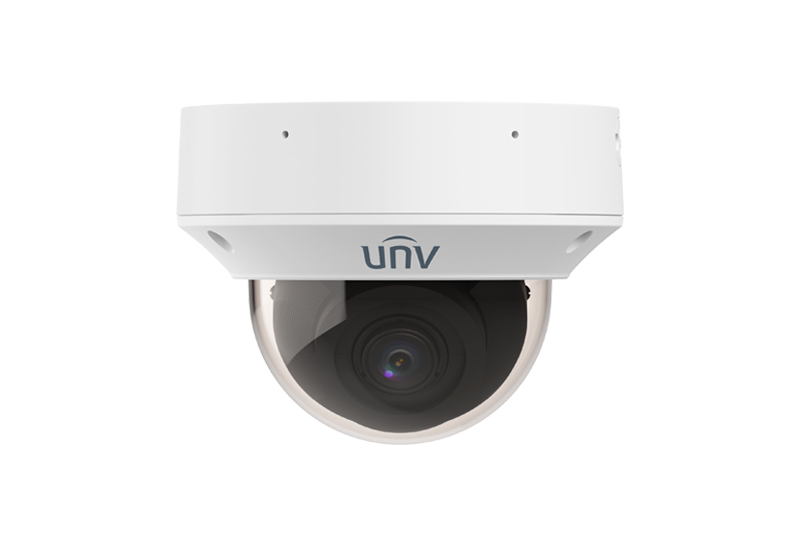

IPC3238EA-AHDZK-I1
Camera IP LightHunter Wise-ISP Dome zoom quang học 8MP
- 8MP (3840*2160)@60fps
- Ultra 265, H.265, H.264, MPEG
- Zoom quang học 4x
- LightHunter với công nghệ Wise-ISP đảm bảo hình ảnh đầy đủ màu sắc trong 24 giờ
- Công nghệ True WDR 140dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Phân tích siêu dữ liệu (Metadata analyse)
- Tích hợp Micro và Loa
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC3238EA-AHDZK-I1 | IPC3238EA-AHDX4K-I1 | |
| Camera | ||
| Sensor | 1/1.8″ CMOS | |
| Min. Illumination | Colour:0.001 lux (F1.2, AGC ON) B/W:0.0005 lux (F1.2, AGC ON) 0 lux with IR |
Colour:0.003 lux (F1.6, AGC ON) B/W:0.002 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|
| WDR | 140dB | |
| S/N | >56dB | |
| Lens | ||
| Focal Length | 2.8 ~ 12 mm | 8 ~ 32 mm |
| Optical Zoom | 4X | |
| Iris | F1.2 | F1.6 |
| Iris Type | P-iris | |
| DORI | ||
| DORI Distance(Detect) | 108.0m(354.3ft)~180.0m(590.6ft) | 240.3m(788.4ft)~644.4m(2114.2ft) |
| DORI Distance(Observe) | 43.2m(141.7ft)~72.0m(236.2ft) | 96.1m(315.4ft)~257.8m(845.7ft) |
| DORI Distance(Recognize) | 21.6m(70.9ft)~36.0m(118.1ft) | 48.1m(157.7ft)~128.9m(422.8ft) |
| DORI Distance(Identify) | 10.8m(35.4ft)~18.0m(59.1ft) | 24.0m(78.8ft)~64.4m(211.4ft) |
| Illuminator | ||
| Illumination Distance(IR) | 40 m (131.2 ft) | |
| Wavelength | 850 nm | |
| IR On/Off Control | Auto/Manual | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| Frame Rate-Main Stream | 8MP(3840*2160), Max 60fps | |
| Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps | |
| Frame Rate-Third Stream | D1 (720*576), Max 60fps | |
| Video Bit Rate | 128 Kbps ~ 16 Mbps | |
| ROI | Up to 8 areas | |
| Video Stream | Triple Streams | |
| OSD | Up to 10 OSDs | |
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | |
| Image | ||
| White Balance | Auto&Outdoor&Fine Tune&Sodium Lamp&Locked&Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal&Flip Vertical&Flip Horizontal&180°&90°Clockwise&90°Anti-clockwise | |
| HLC | Support | |
| Defog | Digital Defog | |
| Intelligent | ||
| Metadata Analyse | Support human body, , motor vehicle and non-motor vehicle image capture and attribute collection | |
| Recognition | face detection: Max support 16 face libraries; Max supports 100000 faces in face library | |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection | |
| People Counting | Support People Flow Counting and Crowd Density Monitoring | |
| Exception Detection | Object Removed, Object Left Behind, Scene Change, Defocus Detection | Object Removed, Object Left Behind |
| Events | ||
| Basic Detection | Motion detection&Audio detection&Tampering alarm | |
| General Function | Watermark&IP Address Filtering&Access Policy&ARP Protection&RTSP Authentication&User Authentication&HTTP authentication&Alarm input&Alarm output | |
| Audio | ||
| Audio Compression | G.711U&G.711A | |
| Audio Bitrate | 128 Kbps | |
| Two-way Audio | Support | |
| Suppression | Support | |
| Sampling Rate | 8 KHz, 16 KHz | |
| Storage | ||
| Edge Storage | Micro SD, up to 512 GB | |
| Network Storage | ANR&NAS(NFS) | |
| Network | ||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3 | |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS1.3 | |
| Client | EZStation& EZLive&EZView | |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above&Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |
| Interface | ||
| Audio I/O | 2/1 | |
| Alarm I/O | 3/2 | |
| Serial Port | 1 channel RS485 interface | |
| Built-in Mic | Support, built-in mic*2 | |
| Built-in Speaker | Support | |
| Network | 1 * RJ45 10M/100M/1000M Base-TX Ethernet | |
| Certification | ||
| EMC | CE EMC (EN 55032: 2015+A1:2020,EN 61000 3 3: 2013+A1: 2019,EN IEC 61000 3 2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4 2014) |
|
| Safety | CE LVD (EN 62368 1:2014+A11:2017) UL (UL 62368 1, 2nd Ed., Issue Date: 2014 12 01) |
|
| Environment | CE RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
|
| General | ||
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) | |
| Built-in DC12V Output | Support | |
| Power Consumption | Max 19W | |
| Power Interface | Ø 5.5 mm coaxial power plug | |
| Dimensions | Ø 148.0mm x 111.4mm(Φ5.8” x 4.4”) | |
| Weight | 1.04kg(2.29lb) | 1.07kg(2.36lb) |
| Working Environment | -40℃ ~60℃(-40°F~ 140°F) | |
| Surge Protection | 6KV | |
| Heater | Support | |
