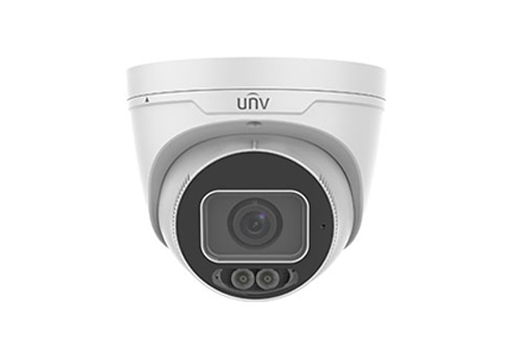

IPC3634SE-ADF28(40)K-WL-I0
Camera IP ColorHunter Dome ống kính cố định 4MP
- Hình ảnh chất lượng cao với cảm biến CMOS 4MP, 1/1.8″
- 4MP (2688*1520)@ 30/25fps
- Ultra 265, H.265, H.264, MPEG
- Công nghệ True WDR 120dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Khoảng cách đèn LED 30m (98ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC3634SE-ADF28K-WL-I0 | IPC3634SE-ADF40K-WL-I0 | ||||||
| Camera | |||||||
| Sensor | 1/1.8″, 4.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.0005 lux (F1.0, AGC ON) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | ||||
| WDR | 120dB | ||||||
| S/N | >56dB | ||||||
| Lens | |||||||
| Lens | 2.8mm@F1.0 | 4.0mm@F1.0 | |||||
| Iris | Fixed | ||||||
| Field of View (H) | 108.6° | 103.0° | |||||
| Field of View (V) | 81.3° | 69.2° | |||||
| Field of View (D) | 135.1° | 134.6° | |||||
| DORI | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 | |||
| 4.0 | 62.1 | 24.8 | 12.4 | 6.2 | |||
| Illuminator | |||||||
| LED Distance | Up to 30m (98ft) | ||||||
| LEDs Number | 2 | ||||||
| LED On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| U-code | Support | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Video Stream | Triple streams | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart Illumination | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Defog | Digital Defog | ||||||
| Intelligent | |||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||
| Recognition | Face capture | ||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||
| Events | |||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | ||||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Audio Bitrate | 64 Kbps | ||||||
| Two-way audio | Support | ||||||
| Suppression | Support | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
| Client | EZStation EZView EZLive |
||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | |||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| RS485 | N/A | ||||||
| Built-in Mic | Support | ||||||
| Built-in Speaker | N/A | ||||||
| WIFI | N/A | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
| Certifications | |||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max9.0W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (Ø x H) | Φ129 x 110mm (Φ5.1” x 4.3”) | ||||||
| Weight | 0.69kg (1.52lb) | ||||||
| Material | Metal | ||||||
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 4KV | ||||||
| Reset Button | Support | ||||||
