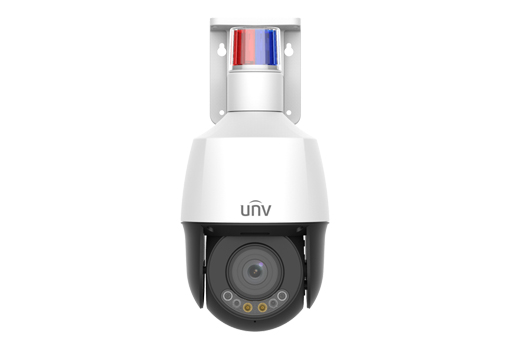

IPC675LFW-AX4DUPKC-VG
Camera PTZ mini 4X Dual-light 5MP
- 5MP (2880*1620)@30fps
- Zoom quang học 4X
- Ultra 265, H.265, H.264, MJPEG
- Công nghệ True WDR 120dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Cảnh báo âm thanh và đèn LED cảnh báo (xanh & đỏ)
- Tích hợp Micro và loa
- Khoảng cách hồng ngoại 50m (164 ft)
- Khoảng cách đèn LED 10m (49 ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC675LFW-AX4DUPKC-VG | |
| Camera | |
| Sensor | 1/2.7″ CMOS |
| Min. Illumination | Colour:0.003 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Focal Length | 2.8 ~ 12 mm |
| Optical Zoom | 4X |
| Iris | F1.6 |
| Field of View (H) | 104.1° ~ 30.6° |
| Field of View (V) | 54.9° ~ 17.4° |
| Field of View (D) | 108.3° ~ 34.4° |
| DORI | |
| DORI Distance(Lens) | 2.8~12(mm) |
| DORI Distance(Detect) | 63.0m~270.0m(206.7ft~885.8ft) |
| DORI Distance(Observe) | 25.2m~108.0m(82.7ft~354.3ft) |
| DORI Distance(Recognize) | 12.6m~54.0m(41.3ft~177.2ft) |
| DORI Distance(Identify) | 6.3m~27.0m(20.7ft~88.6ft) |
| Illuminator | |
| Illumination Distance(Warm Light) | 10 m (32.8 ft) |
| Illumination Distance(IR) | 50 m (164.0 ft) |
| Wavelength | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Privacy Mask | Up to 4 areas |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps Sub Stream: 720P (1280*720), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| ROI | Support |
| Video Stream | Triple Streams |
| OSD | Up to 8 OSDs |
| Image | |
| Defog | Digital Defog |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | N/A |
| Intelligent | |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
| Auto Tracking | Support, target filtering: human only |
| Events | |
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| PTZ | |
| Pan Range | 0° ~ 345° |
| Pan Speed | 0.1°/s ~ 50°/s |
| Tilt Range | -10° ~ 110° |
| Tilt Speed | 0.1°/s ~ 40°/s |
| Number of Presets | 256 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120s ~ 1800s |
| Home Position | Support |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 KHz |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Interface | |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | DC12V(±25%), PoE(IEEE 802.3af) |
| Power Consumption | MAX 18W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | Ø 133 x 185 x 276 mm(Ø 5.2″ x 7.3″ x 10.9″) |
| Weight | 0.87 kg (1.92lb) |
| Working Environment | -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Reset Button | Support |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
