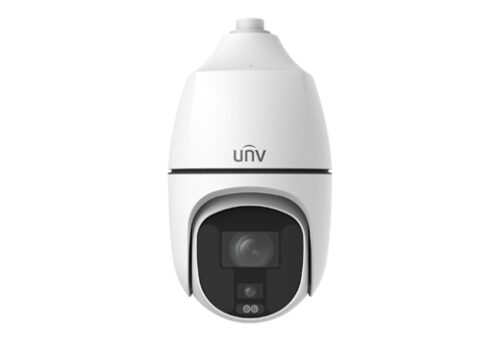

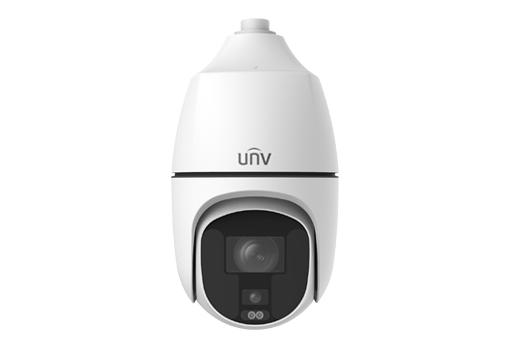

IPC68188EFW-X25-F40G-VH
Camera PTZ 25X Dual-Spectrum MultiView Laser 8MP
- 2*8MP (3840*2160)@30fps
- Zoom quang học 25X
- Ultra 265, H.265, H.264, MJPEG
- Hỗ trợ video ống kính kép được ghép thành một kênh, cho phạm vi giám sát rộng hơn
- Công nghệ True WDR 120dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Tích hợp Micro và loa
- Khoảng cách hồng ngoại 250m (820ft)
- Khoảng cách đèn LED 30m (98 ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC68188EFW-X25-F40G-VH | |
| Camera | |
| Sensor-Channel 1 | 1/1.8″, 8MP, CMOS |
| Min. Illumination-Channel 1 | Colour:0.0005 lux (F1.0, AGC ON) 0 lux with Warm light |
| Day/Night-Channel 1 | N/A |
| Sensor-Channel 2 | 1/1.2″, 8MP, CMOS |
| Min. Illumination-Channel 2 | Colour:0.0005 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night-Channel 2 | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| Lens | |
| Lens Type-Channel 1 | 4mm@F1.0 |
| Digital Zoom-Channel 1 | N/A |
| Optical Zoom-Channel 1 | N/A |
| Iris-Channel 1 | Fixed aperture |
| Field of View (H)-Channel 1 | 92.9° |
| Field of View (V)-Channel 1 | 49.1° |
| Field of View (D)-Channel 1 | 114.3° |
| Lens Type-Channel 2 | 10~250mm@F1.6, AF automatic focusing and motorized zoom lens |
| Digital Zoom-Channel 2 | 16X |
| Optical Zoom-Channel 2 | 25X |
| Iris-Channel 2 | Auto; F1.6(W)~F5.4(T) |
| Field of View (H)-Channel 2 | 58.3° ~ 3.0° |
| Field of View (V)-Channel 2 | 34.8° ~ 1.7° |
| Field of View (D)-Channel 2 | 71.7° ~ 3.6° |
| DORI | |
| DORI Distance (Lens)-Channel 1 | 4mm |
| DORI Distance (Detect)-Channel 1 | 62.1m(203.6ft) |
| DORI Distance (Observe)-Channel 1 | 24.8m(81.5ft) |
| DORI Distance (Recognize)-Channel 1 | 12.4m(40.7ft) |
| DORI Distance (Identify)-Channel 1 | 6.2m(20.4ft) |
| DORI Distance (Lens)-Channel 2 | 10~250(mm) |
| DORI Distance (Detect)-Channel 2 | 222.8m~4882.5m(730.8ft~16018.7ft) |
| DORI Distance (Observe)-Channel 2 | 89.1m~1953.0m(292.3ft~6407.5ft) |
| DORI Distance (Recognize)-Channel 2 | 44.6m~976.5m(146.2ft~3203.7ft) |
| DORI Distance (Identify)-Channel 2 | 22.3m~488.3m(73.1ft~1601.9ft) |
| Illuminator | |
| IR Range-Channel 1 | N/A |
| Warm Light Range-Channel 1 | 30m |
| Wavelength-Channel 1 | N/A |
| IR Range-Channel 2 | 250m |
| Warm Light Range-Channel 2 | N/A |
| Wavelength-Channel 2 | 850 nm |
| Light On/Off Control | Auto/Manual |
| Video | |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8MP (3840*2160),Max 30fps Sub Stream: 1080P (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple Streams |
| OSD | Up to 10 OSDs |
| Image | |
| Defog-Channel 1 | Digital Defog |
| Defog-Channel 2 | Optical Defog, Digital Defog |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | Support |
| Intelligent | |
| Metadata Analyse | Support human body, , motor vehicle and non-motor vehicle image capture and attribute collection |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
| Events | |
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm |
| General Function | Watermark, IP Address Filtering, Alarm Input, Alarm Output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| PTZ | |
| Pan Range | 360° |
| Pan Speed | 0.1°/s ~ 180°/s |
| Tilt Range | -15° ~ 90° |
| Tilt Speed | 0.1°/s ~ 180°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s ~ 1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Interface | |
| Video Output-Channel 1 | N/A |
| Video Output-Channel 2 | 1 BNC |
| Audio I/O | 1/1 |
| Alarm I/O | 7/2 |
| Serial Port | 1 * RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M/1000M Base-TX Ethernet + 1 x 100M/1000M SFP |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | DC24V (±25%), AC24V (±25%) |
| Power Consumption | MAX 63W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø 270 x 497mm(Ø 10.6″ x 19.6″) |
| Weight | 10.08kg (22.2lb) |
| Working Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
