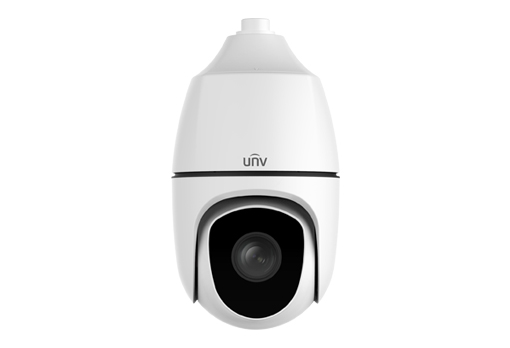

IPC6852ER-X45-VF
Camera PTZ 45X LightHunter 2MP
- 2MP (1920*1080)@30fps
- Zoom quang học 45X
- Ultra 265, H.265, H.264, MJPEG
- Công nghệ True WDR 120dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Khoảng cách hồng ngoại 250m (820ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC6852ER-X45-VF | |
| Camera | |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Focal Length | 5.7 ~ 256.5 mm |
| Digital Zoom | 16X |
| Optical Zoom | 45X |
| Iris | F1.2 ~ F4.6 |
| Field of View (H) | 59.5° ~ 2.2° |
| Field of View (V) | 35.6° ~ 1.2° |
| Field of View (D) | 73.19° ~ 2.60° |
| DORI | |
| DORI Distance(Lens) | 5.7~256.5(mm) |
| DORI Distance(Detect) | 88.4m~3980.2m(290.2ft~13058.3ft) |
| DORI Distance(Observe) | 35.4m~1592.1m(116.1ft~5223.3ft) |
| DORI Distance(Recognize) | 17.7m~796.0m(58.0ft~2611.7ft) |
| DORI Distance(Identify) | 8.8m~398.0m(29.0ft~1305.8ft) |
| Illuminator | |
| Illumination Distance(IR) | 250m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Video | |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple Streams |
| OSD | Up to 10 OSDs |
| Intelligent | |
| Exception Detection | Object Removed, Object Left Behind |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
| Image | |
| EIS | Support |
| Defog | Digital Defog, Optical Defog |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | Support |
| Events | |
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output |
| PTZ | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 180°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 180°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s ~ 1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 7/2 |
| Serial Port | 1 * RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt) |
| Power Consumption | Max 61W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø 270 x 497mm(Ø 10.6″ x 19.6″) |
| Weight | 10.3kg(22.66lb) |
| Working Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
