IPC8544EA-KM-I1

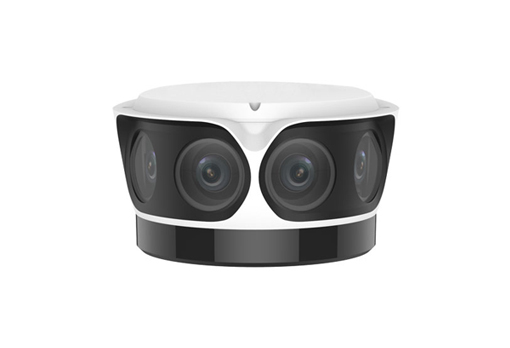

Camera IP Starlight OmniView góc nhìn 180° ống kính cố định 16MP
- Hình ảnh chất lượng cao với cảm biến CMOS 4MP, 1/1.8″
- 16MP (4800*2688)@30fps
- Công nghệ ghép 4 ống kính cho góc nhìn ngang 180,00°
- Công nghệ True WDR 120dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Ultra 265, H.265, H.264, MJPEG
- Khoảng cách hồng ngoại 50m(164ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC8544EA-KM-I1 | |||||
| Sensor | 1/1.8″ progressive scan, 4.0 megapixel, CMOS | ||||
| Min. Illumination | Colour: 0.001lux (F1.6,AGC ON) 0lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| WDR | Digital WDR | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Lens | 4×2.8mm lens | ||||
| Iris | F1.6 | ||||
| Field of View (H) | 180° | ||||
| Field of View (V) | 90° | ||||
| Field of View (D) | 221.4° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | |
| Illuminator | |||||
| IR Range | Up to 50m (164ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 4800×2688:Max. 30 fps; Sub Stream: 2688×1520:Max. 30 fps; Third Stream: 1280×720: Max. 30 fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Two-way Audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation EZLive EZView |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Network | 10M/100M/1000M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
| General | |||||
| Power | AC24V±25%/DC24V±25%, PoE(IEEE 802.3at) | ||||
| Power consumption: Max 34W | |||||
| Dimensions (Ø x H) | 258.8mmx211.0mmx115.0mm(10.2”×8.3”×4.5”) | ||||
| Weight | 2.271kg(5.01lb) | ||||
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) | ||||
| Storage Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) | ||||
| surge protection | 6KV | ||||
