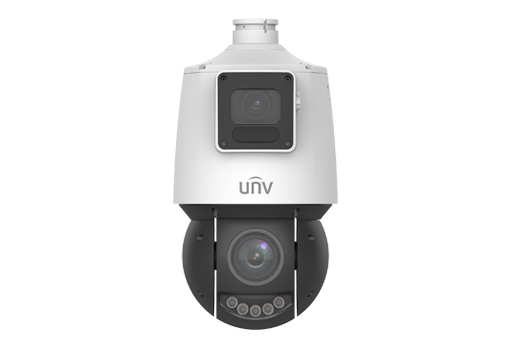

IPC94144SR-X25-F40C
Camera PTZ Dual-lens 25X LightHunter 4MP+4MP
- 2*4MP (2688*1520)@30fps
- Zoom quang học 25X
- Ultra 265, H.265, H.264, MJPEG
- Công nghệ True WDR 120dB cho phép hình ảnh rõ nét trong bối cảnh ánh sáng mạnh
- Tích hợp Micro và loa
- Khoảng cách hồng ngoại 100m (328ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| IPC94144SR-X25-F40C | |
| Camera | |
| Sensor-Panorama | 1/2.7″, 4MP, CMOS |
| Min. Illumination-Panorama | Color:0.003 lux (F1.6, AGC ON) 0 lux with IR |
| Sensor-Detail | 1/2.7″, 4MP, CMOS |
| Min. Illumination-Detail | Color:0.003 lux (F1.5, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| Lens | |
| Lens Type-Panorama | 4mm@F1.6 |
| Optical Zoom-Panorama | N/A |
| Iris-Panorama | Fixed aperture; F1.6 |
| Field of View (H)-Panorama | 91.3° |
| Field of View (V)-Panorama | 46.7° |
| Field of View (D)-Panorama | 112.3° |
| Lens Type-Detail | 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens |
| Optical Zoom-Detail | 25X |
| Iris-Detail | Auto; F1.5(W)~F3.8(T) |
| Field of View (H)-Detail | 55.46° ~ 3.09° |
| Field of View (V)-Detail | 32.94° ~ 1.73° |
| Field of View (D)-Detail | 68.22° ~ 3.65° |
| DORI | |
| DORI Distance (Lens)-Panorama | 4mm |
| DORI Distance (Detect)-Panorama | 90.0m(295.3ft) |
| DORI Distance (Observe)-Panorama | 36.0m(118.1ft) |
| DORI Distance (Recognize)-Panorama | 18.0m(59.1ft) |
| DORI Distance (Identify)-Panorama | 9.0m(29.5ft) |
| DORI Distance (Lens)-Detail | 4.8~120(mm) |
| DORI Distance (Detect)-Detail | 123.8m~2475.0m(406.0ft~8120.1ft) |
| DORI Distance (Observe)-Detail | 49.5m~990.0m(162.4ft~3248.0ft) |
| DORI Distance (Recognize)-Detail | 24.8m~495.0m(81.2ft~1624.0ft) |
| DORI Distance (Identify)-Detail | 12.4m~247.5m(40.6ft~812.0ft) |
| Illuminator | |
| IR Range-Panorama | 30m |
| Wavelength | 850 nm |
| IR Range-Detail | 100m |
| Light On/Off Control | Auto/Manual |
| Video | |
| Frame Rate-Panorama | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| Frame Rate-Detail | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Privacy Mask-Panorama | Up to 4 areas |
| Privacy Mask-Detail | 24 areas, up to 4 areas per scene |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple Streams |
| OSD | Up to 8 OSDs |
| Image | |
| Defog | Digital Defog |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Heatwave Reduction | Support |
| Intelligent | |
| -Panorama | Support, Face attributes: Gender, Age range, Glasses, Mask |
| -Detail | Support |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Linkage Function-Panorama | Support. Triggered by fixed lens via smart intrusion prevention function to track target |
| Linkage Function-Detail | N/A |
| Smart Intrusion Prevention | Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
| Events | |
| Basic Detection | Motion Detection, Audio Detection, Tampering Alarm |
| Auto Tracking-Panorama | N/A |
| Auto Tracking-Detail | Support, target filtering: human, non-motor vehicle and vehicle |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| PTZ | |
| Pan Range-Panorama | N/A |
| Pan Speed-Panorama | N/A |
| Tilt Range-Panorama | 18° ± 5° |
| Tilt Speed-Panorama | N/A |
| Pan Range-Detail | 360° |
| Pan Speed-Detail | 0.1°/s ~ 80°/s |
| Tilt Range-Detail | –15° ~ 90° |
| Tilt Speed-Detail | 0.1°/s ~ 80°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s ~ 1800s |
| Preset Image Freeze | N/A |
| Home Position | Support |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 * RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | DC12V (±25%), PoE+(IEEE 802.3at) |
| Power Consumption | MAX 24W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | Ø 304 x 195 x 163mm(Ø 12.0″ x 7.7″ x 6.4″) |
| Weight | 2.27kg (5.00lb) |
| Working Environment | -40 ℃ ~ 65 ℃ (-40 °F ~ 149 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
| Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
