Model |

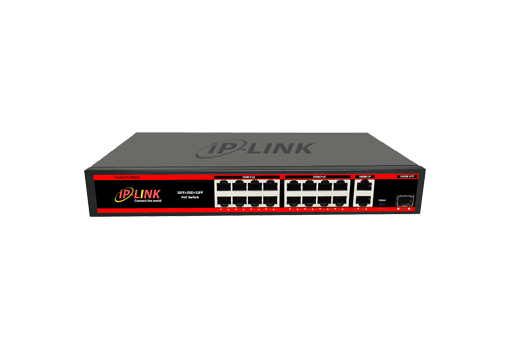

IPL-SW162 | |
Fixed Port | 16*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-TX uplink RJ45 port (Data) 1*1000Mbps SFP Slot |
|
Ethernet Port | Port 1-16 support 10/100Base-T(X) auto-sensing, full/half duplex
MDI/MDI-X self-adaption |
|
Function Switch |
1 (1,2) two-position dip switch, the default state “OFF”, “ON” after opening the function description as follows. | |
1 is the “ON” state, port 1-16 can support AI self-healing (mode watchdog function); when”OFF”, no communication self-healing function. | ||
2 is the “ON” state, port 1-16 can support long-distance transmission 10M/250m+VLAN transmission mode,when “OFF”, 100 meters transmission. | ||
Watchdog function | When camera stops working for 2mins , the port will restart and recover automatically the camera. | |
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |
|
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 9.2Gbps | |
Forwarding Rate@64byte | 4.702Mpps | |
MAC | 8K | |
Buffer Memory | 4M | |
Twisted pair Transmission | 10BASE-T : Cat3,4,5 UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(≤100 meter)
|
|
PoE Port | Port 1 to 16 IEEE802.3af/at @ POE | |
Power Supply Pin | 1/2 (+), 3/6 (-),4 cores supply power | |
Single-port Max Power | 30W,IEEE802.3af/at | |
Total PWR/ Input Voltage | 300W (52VDC) | |
Power Supply | External power adapter,AC100~240V 50-60Hz 1A | |
Power Consumption | Standby<4W, Full load<300W | |
Operation TEMP/Humidity | -20°C+55°C, 5%~90% RH Non condensing | |
Storage TEMP/Humidity | -40°C+75°C, 5%~95% RH Non condensing | |
Dimension (L*W*H) | 310mm*183mm*45mm | |
Weight | 2.06kg | |
Installation | Desktop.Wall-mounted | |
Lightning protection /
protection level |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
