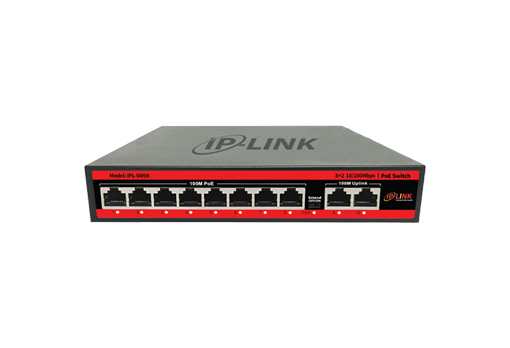

IPL-SW08
Switch 8 port PoE + 2 Uplinks – chuyên dụng cho CCTV
- 8 Port PoE 10/100 Mbps + 2 Port RJ45 10/100 Mbps
- Port 1-8 cổng hỗ trợ IEEE 802.3af/at (PoE/PoE+)
- Tổng công suất 120W
- Truyền dữ liệu trên đường cáp 4 lõi, Khoảng cách MAX 250m
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| Model | IPL-SW08 | ||
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 120W(52V 2.3A) | ||
| Network Connector | Network Port | PoE Ethernet Port | 1～8 Port : 10/100Mbps |
| Ethernet port | 9~10 Uplink Port : 10/100Mbps | ||
| Transmission Distance | 1～8 Port :
100Mbps:0~100m; 10Mbps: 0~250m; |
||
| Uplink Port : 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE802.3/802.3u,
IEEE802.3x, IEEE802.ab |
|
| Switching Capacity | 2.0Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 1.488Mpps | ||
| MAC Table | 1K | ||
| Packet Forwarding rate | 10Mbps:14880pps/port; 100Mbps: 148800pps/port | ||
| Power Over Ethernet | PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 1/2 + ,3/6- ;4 cores power supply | ||
| PoE Power | af=15.4W,at=30W for each port | ||
| RJ45 port | Port Function | Power priority mechanism,fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
| LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;
PoE Status Indicator; Power indicator;Extender |
|
| Environmental | Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
| Mechanical | Dimension (L×W×H) | 190mm*125mm*38mm | |
| Color | Grey | ||
