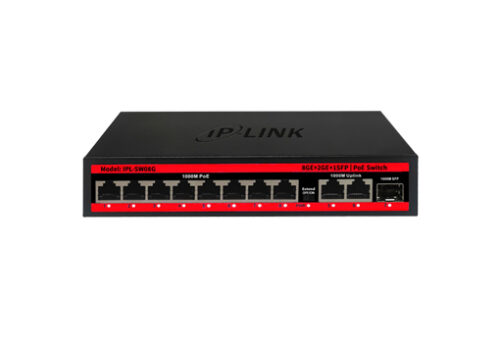

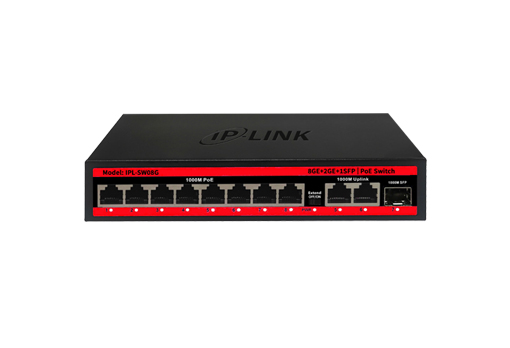

IPL-SW08G
Switch 8 port Gigabit PoE + 2 Uplinks- chuyên dụng cho CCTV
- 8 Port PoE 10/100/1000 Mbps + 2 Port RJ45 10/100/1000 Mbps + 1 SFP
- Port 1-4 cổng hỗ trợ IEEE 802.3af/at (PoE/PoE+)
- Tổng công suất 120W
- Truyền dữ liệu trên đường cáp 4 lõi, Khoảng cách MAX 250m
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| Model | IPL-SW08G | |
| Fixed Port | 8*10/100/1000Base-TX PoE ports (Data/Power)
2*10/100/1000Base-TX uplink RJ45 port (Data) 1*1000Mbps SFP Slot |
|
| Ethernet Port | Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/half duplex
MDI/MDI-X self-adaption |
|
|
Function Switch |
1 (1,2) two-position dip switch, the default state “OFF”, “ON” after opening the function description as follows. | |
| 1 is the “ON” state, port 1-8 can support AI self-healing (mode watchdog function); when”OFF”, no communication self-healing function. | ||
| 2 is the “ON” state, port 1-8 can support long-distance transmission 10M/250m+VLAN transmission mode,when “OFF”, 100 meters transmission. | ||
| Watchdog function | When camera stops working for 2mins , the port will restart and recover automatically the camera. | |
| Network Protocol | IEEE802.3 10BASE-T； IEEE802.3i 10Base-T；
IEEE802.3u 100Base-TX； IEEE802.3ab 1000Base-T； IEEE802.3z 1000Base-X； IEEE802.3x |
|
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 22Gbps | |
| MAC | 2K | |
| Buffer Memory | 1M | |
| Twisted pair Transmission | 10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000Base-TX: Cat 5e or better UTP(≤100 meter) |
|
| PoE Port | Port 1 to 8 IEEE802.3af/at @ POE | |
| Power Supply Pin | 1/2 (+), 3/6 (-),4 cores supply power | |
| Single-port Max Power | 30W，IEEE802.3af/at | |
| Total PWR/ Input Voltage | 120W (52VDC) | |
| Power Supply | External power adapter,AC100~240V 50-60Hz 1A | |
| Power Consumption | Standby <3W, Full load <120W | |
| Operation TEMP/Humidity | -20°C+55°C, 5%~90% RH Non condensing | |
| Storage TEMP/Humidity | -40°C+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 190mm*125mm*38mm | |
| Weight | 0.7kg | |
| Installation | Desktop | |
| Lightning protection / protection level | Port lightning protection: 6KV 8/20us, Protection level: IP30 | |
