IPS-HC268@HDX4-IR-I1

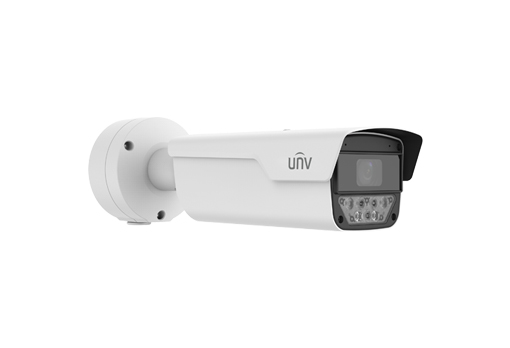

8MP Super LightHunter WDR VF LPR Bullet Network Camera
- Độ phân giải 8MP(3840*2160)@60fps
- Chuẩn nén Ultra 265, H.265, H.264, MJPEG
- ANPR hỗ trợ chụp và nhận dạng biển số xe
- Nhận dạng đặc điểm của xe: Biển số xe, Loại xe, Màu xe, Nhãn hiệu xe
- Công nghệ Wise-ISP đảm bảo hình ảnh đầy đủ màu sắc trong 24 giờ
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| HDX4-IR-I1 | HDX4-WH-I1 | ||||
| Camera | |||||
| Sensor | 1/1.8″ CMOS | ||||
| Min. Illumination | Colour:0.003 lux (F1.6, AGC ON) B/W:0.002 lux (F1.6, AGC ON) 0 lux with IR |
Colour:0.003 lux (F1.6, AGC ON) 0 lux with Light |
|||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s |
||||
| WDR | 140dB | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Focal Length | 8 ~ 32 mm | ||||
| Digital Zoom | 16X | ||||
| Optical Zoom | 4X | ||||
| Iris | F1.6 | ||||
| Iris Type | P-iris | ||||
| Field of View (H) | 42°~15.3° | ||||
| Field of View (V) | 22.6°~8.8° | ||||
| Field of View (D) | 51.7°~18.1° | ||||
| DORI | |||||
| DORI Distance(Detect) | 240.3m(788.4ft)~644.4m(2114.2ft) | ||||
| DORI Distance(Observe) | 96.1m(315.4ft)~257.8m(845.7ft) | ||||
| DORI Distance(Recognize) | 48.1m(157.7ft)~128.9m(422.8ft) | ||||
| DORI Distance(Identify) | 24.0m(78.8ft)~64.4m(211.4ft) | ||||
| Illuminator | |||||
| Illumination Distance(Warm Light) | 40 m (131.2 ft) | ||||
| Illumination Distance(IR) | 40 m (131.2 ft) | ||||
| Wavelength | 850 nm | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate-Main Stream | 8MP(3840*2160), Max 60fps | ||||
| Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps | ||||
| Frame Rate-Third Stream | D1 (720*576), Max 60fps | ||||
| Frame Rate Recommendation | 3840*2160@60fps+1080P@60fps+D1@60fps | ||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | ||||
| U-code | Support | ||||
| ROI | Up to 8 areas | ||||
| Video Stream | Triple Streams | ||||
| OSD | Up to 10 OSDs | ||||
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | ||||
| Image | |||||
| White Balance | Auto,Outdoor,Fine Tune,Sodium Lamp,Locked,Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | N/A | |||
| Flip | Normal,Flip Vertical,Flip Horizontal,180°,90°Clockwise,90°Anti-clockwise | ||||
| HLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligent | |||||
| ANPR | Up to 4 car lanes can be set: Support pedestrian, motor vehicle and non-motor vehicle image capturing; Support recognizing car license plate more accurately by choosing different country/region and attribute collection |
||||
| Supports Multiple Countries | North America: United States, CanadaEU: France, Spain, Portugal, Germany, UK, Ireland, Bulgaria, Latvia, Romania, Slovenia, Poland, Hungary, Serbia, Czech Republic, Slovakia, Bosnia and Herzegovina, Greece, Croatia, Ukraine Asia Pacific: South Korea, Indonesia, Malaysia, SingaporeMiddle East: Iraq, Saudi Arabia, United Arab Emirates | ||||
| Events | |||||
| Basic Detection | Motion detection,Audio detection,Tampering alarm | ||||
| General Function | Watermark,IP Address Filtering,Access Policy,ARP Protection,RTSP Authentication,User Authentication,HTTP authentication,Alarm input,Alarm output | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 128 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 16KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 512 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3 | ||||
| Compatible Integration | API,SDK,ONVIF (Profile S, Profile G, Profile T) | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS1.3 | ||||
| Client | EZStation, UNV-Link, UNV-Link Pro | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Interface | |||||
| Audio I/O | 2/1 | ||||
| Alarm I/O | 3/2 | ||||
| Serial Port | 1 channel RS485 interface | ||||
| Built-in Mic | Support, built-in mic*2 | ||||
| Built-in Speaker | Support | ||||
| Network | 1 * RJ45 10M/100M/1000M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC 61000-3-2: 2019+A1: 2021, EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4 2014) |
||||
| Safety | EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01 ) |
||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||
| General | |||||
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) | ||||
| Power Consumption | Max 18W | Max 22W | |||
| Power Interface | Ø 5.5 mm coaxial power plug | ||||
| Dimensions | 406 x 125 x 130mm(16.0” x 4.9” x 5.1”) | ||||
| Weight | 1.86Kg(4.10lb) | ||||
| Working Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 6KV | ||||
