MW5360
Thiết bị phát Wifi sử dụng SIM 4G LTE
- Băng tần 2.4GHz
- Ăng-ten 2x5dBi LTE, 2x5dBi WiFi
- Kiểm soát băng thông thông minh
- Chế độ không dây: AP/APR, Multi-SSID
- 2 port x 10/100Mbps LAN, 1 port x 10/100Mbps WAN
- Truy cập tối đa: 30-35 user
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Wireless
| Standards | IEEE 802.11b/g/n 2.4GHz |
| Signal Rate | Up to 300Mbps2.4GHz |
| Frequency Range | 2.4-2.4835GHz;5.180-5.825GHZ |
| Transmit Power | 20dBm(MAX) 802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps) |
| Wireless Modes | AP/APR, Multi-SSID |
| Wireless Security | None / WEP / WPA-PSK / WPA2-PSK / WPA2-Mixed/WPS |
4G LTE
| Band for LTE
|
FDD-LTE:B1/B3/B5/B8
TDD-LTE: B38/B39/B40/B41 HSPA/UMTS:B1/B5/B8 GSM/GPRS/EDGE:B3/B8 TD-SCDMA:B34/B39 EVDO/CDMA:BC0 |
| Mode
|
FDD-LTE、TDD-LTE、TD-SCDMA、HSPA+、HSUPA
HSDPA、UMTS、EVDO、EDGE、GPRS、GSM、CDMA1x |
| Card Speed
|
FDD-LTE: 150 Mbps DL, 50 Mbps UL
TDD-LTE: 132 Mbps DL, 30 Mbps UL TD-HSUPA:2.8Mbps DL TD-HSUPA:2.2Mbps UL DC-HSPA+:42 Mbps DL HSPA+:21 Mbps DL HSUPA:5.76Mbps UL WCDMA: 384 Kbps DL, 384Kbps UL CDMA2000 EVDO: 3.1Mbps DL, 1.8Mbps UL EDGE: 237 Kbps DL, 118Kbps UL GPRS:85.6 Kbps DL, 85.6 Kbps UL |
Hardware
| Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX |

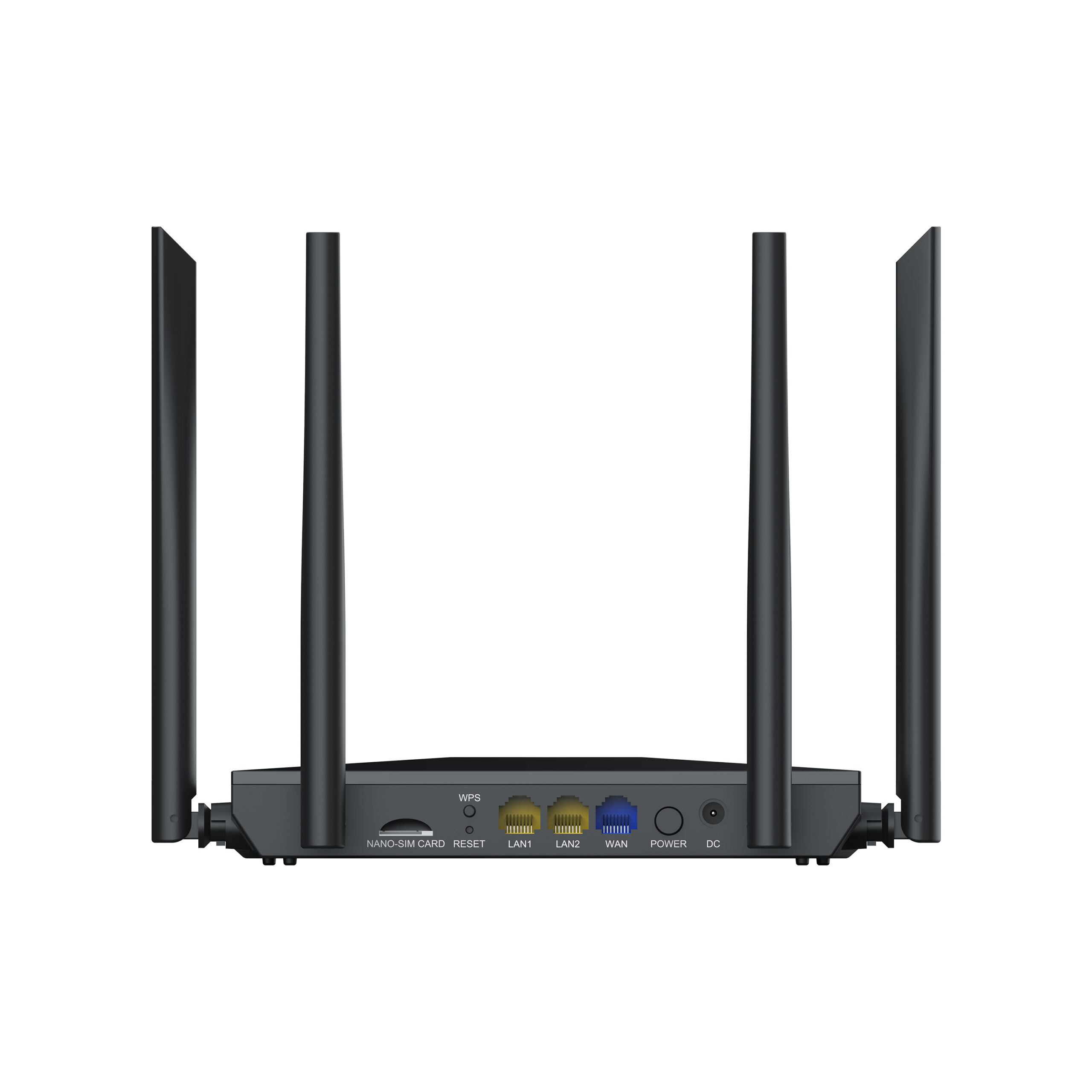

| Interface | 1*10/100Mbps Auto MDI/MDIX RJ45 WAN port 2*10/100Mbps Auto MDI/MDIX RJ45 LAN port SIM card slot |
| LED Indicators | Power, LAN All, WiFi/WPS,EWAN, LTE Strong, LTE Middle, LTE Weak |
| Buttons | Default, WPS |
| Antenna | 2* 5dBi WiFi antennas, 2 SMA detachable 4G antennas |
| Power Supply | DC 12V/1.0A(Output) |
| Dimensions
(L x W x H ) |
182mm*108mm*25mm |
| WAN Type | WAN: DHCP / Static IP / PPPoE / Russia PPPoE / L2TP / PPTP / 3G&4G |
| Others | Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ, VPN Pass-through, Dynamic DNS, Static Routing |
Others
| Certification | FCC, CE, EAC |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package | 1* MW3560 1* 12V/1.0A Power Adapter 1* Quick Installation Guide (Multilingual) |
