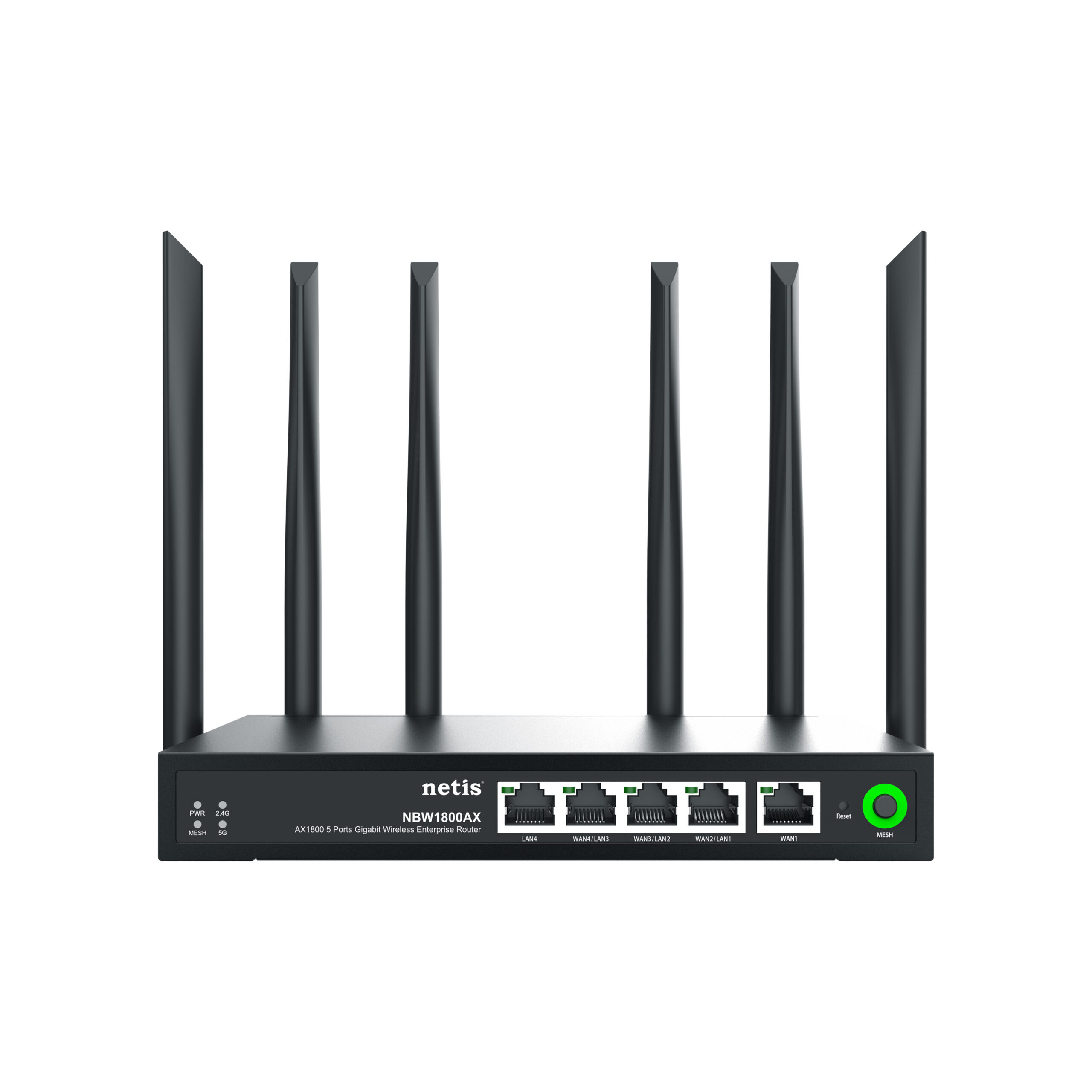

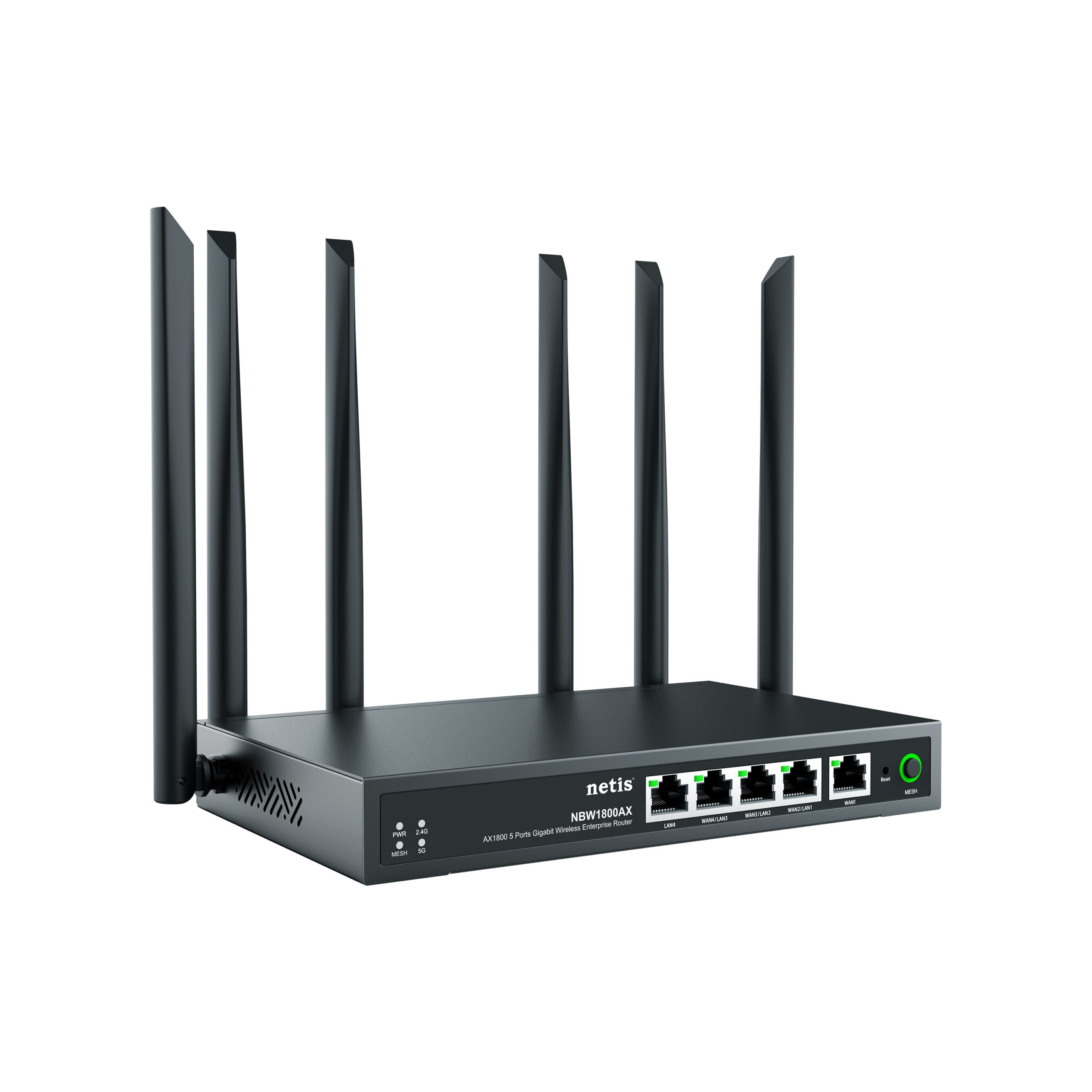

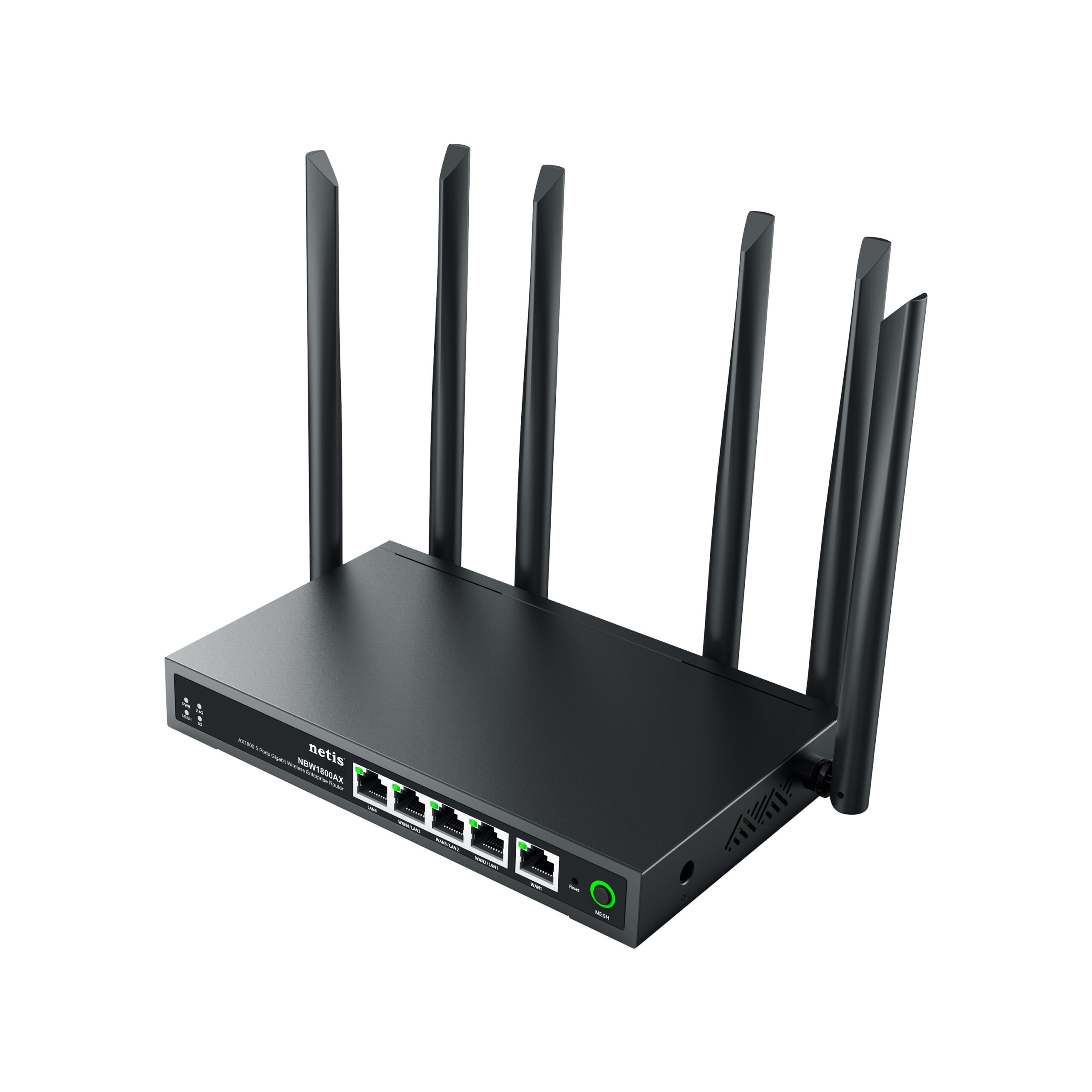

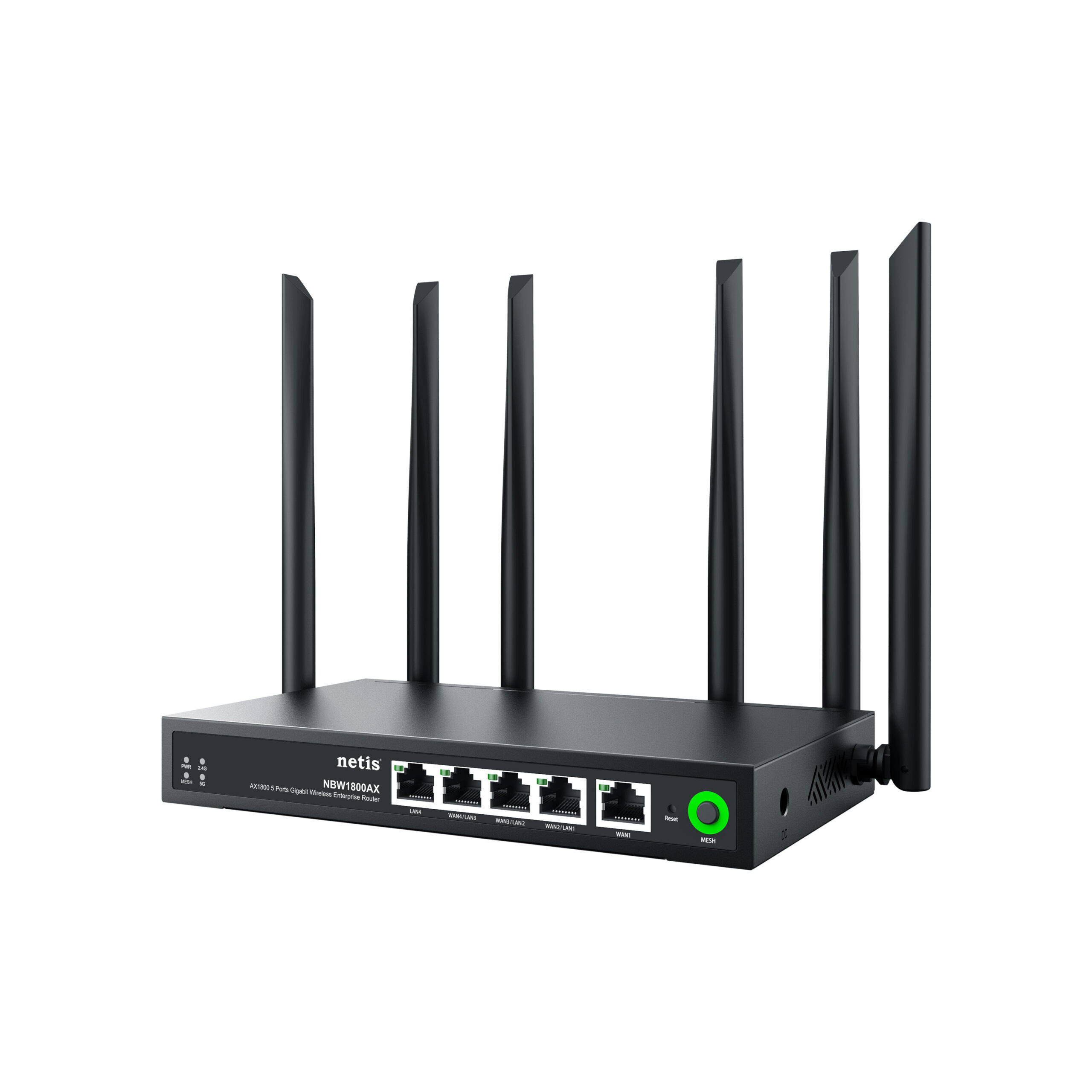

NBW1800AX
Bộ định tuyến Gigabit Wifi băng tần kép AC1800
- Băng tần kép (2.4Ghz:574Mbps+ 5GHz:1201Mbps)
- Ăng-ten 6 * 7dBi
- Kiểm soát băng thông thông minh
- Chế độ không dây: AP Router, Repeater, EASY MESH
- Truy cập tối đa tối đa: 100 user
- 5 * Gigabit RJ45 port (4WAN/4LAN)
- WAN: PPPoE Dial-up, DHCP Client, Static IP, MAC Cloning
- Hỗ trợ quản lý APP: BeeWiFi
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Hardware
| Interface | LAN : 4 * 10/100/1000M AUTO MDI/MDIX RJ45 port
WAN: 1 * 10/100/1000M AUTO MDI/MDIX RJ45 port |
| Antenna | 4 * 2.4G and 2 * 5G high-gain omnidirectional antennas |
| Button | Reset Button, MESH Button |
| Power Supply | External DC 12V/1A |
| LED | PWR、SYS、2.4G、5G、WAN1、WAN2/LAN1、WAN3/LAN2、WAN4/LAN3、LAN4 |
| Mounting | Ceiling /Wall Mounting (Kits included) |
Software
| Memory | 256MB |
| FLASH | 16MB |
| CPU | Dual core 1.6GHz |
| Forwarding rate | 10/100/1000Mbps |
| Modules | Home Page : Log out, Official website, Internet, Network speed, Running time, Gateway, Restart, MESH status, MESH management, Add new node, Networking equipment, Wireless network, Intranet Settings, Internet Settings
Network : Signal conditioning, Guest network, MESH, IPTV, WISP, WPS, Advanced Settings, Access contro, Policy routing, AC control
Applications : Port mapping, Dynamic domain name, Remote access
System:Managing Passwords, Time setting, Initialization, Schedule tasks, Firmware upgrade, Dial-up log, Router information, Indicator light |
Wireless
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574Mbps at 2.4GHz, 1201Mbps at 5GHz |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.1x, IEEE802.11 b/g/n/ac/ax |
Others
| Dimensions | 200*124.4*28mm |
| Environment | Operating Temperature : 0℃ ~ 40℃
Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 90% RH non condensing |
