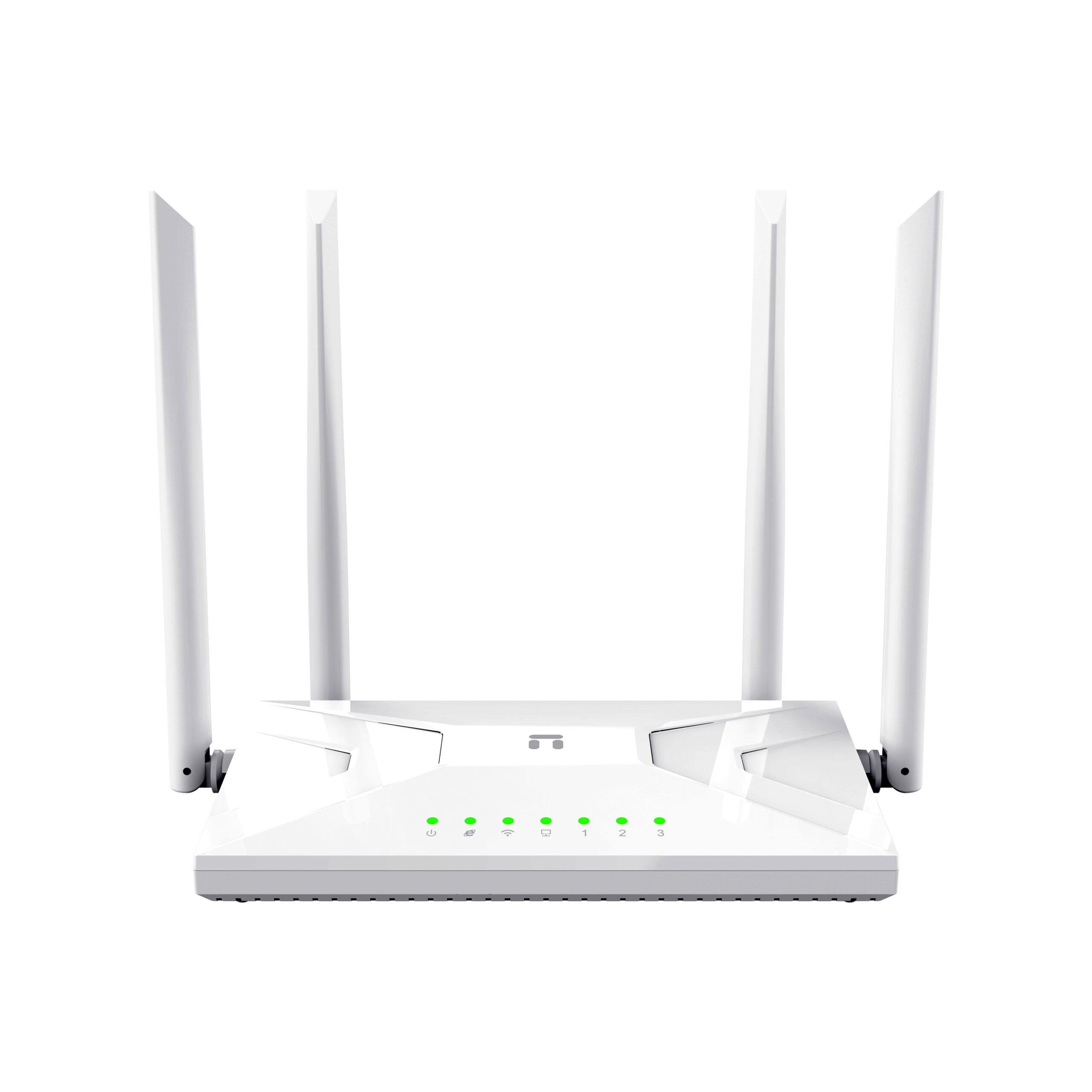

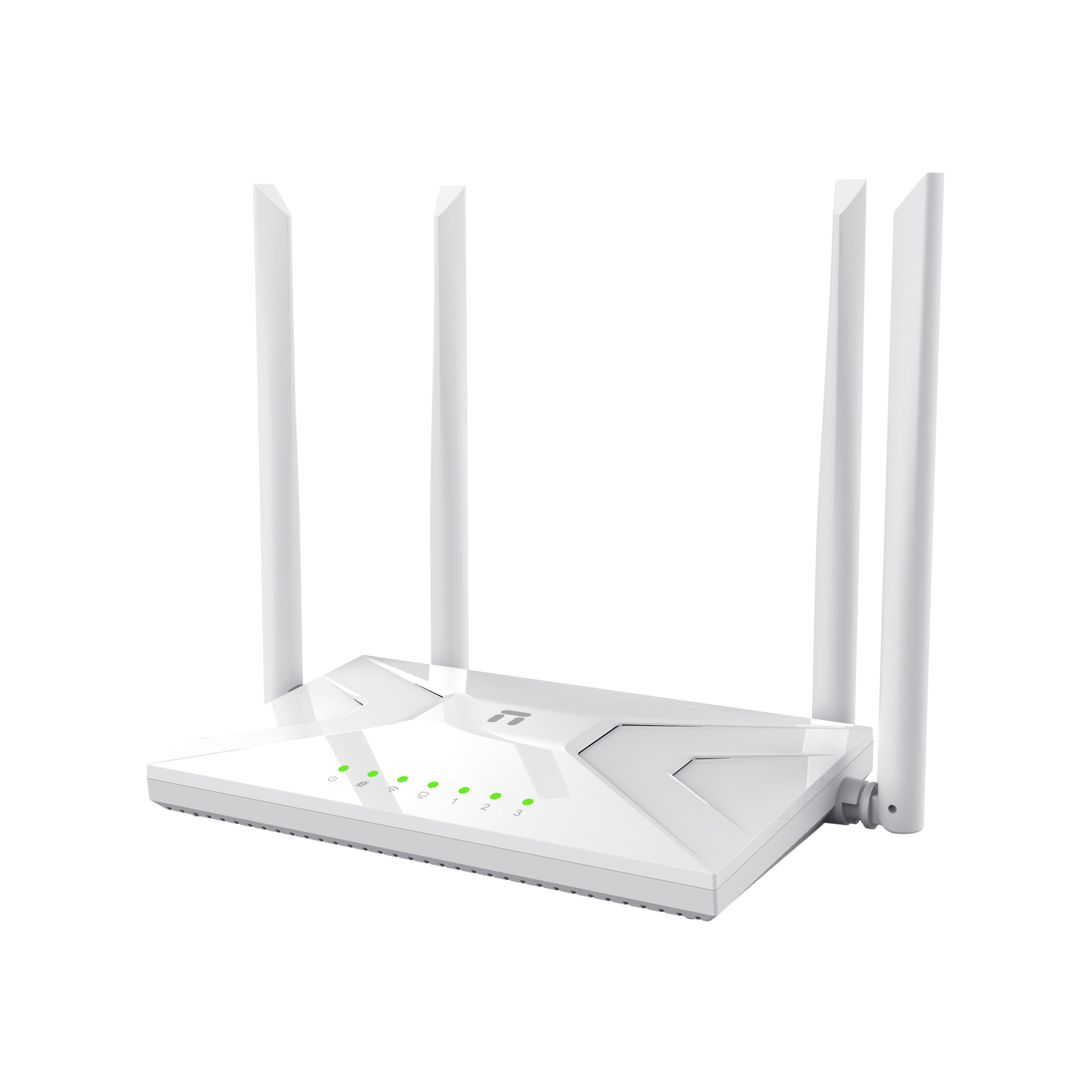

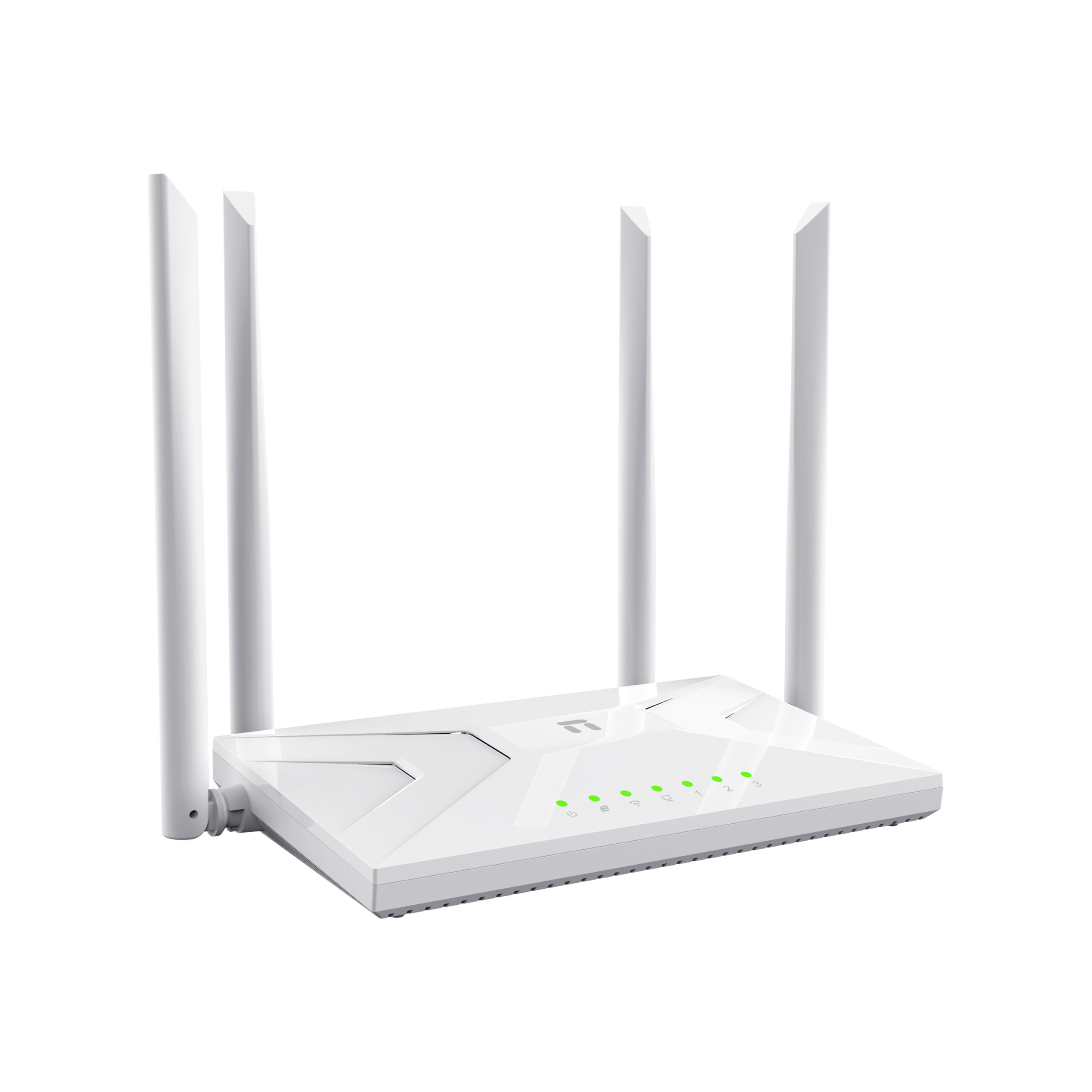

NC21
Thiết bị phát Wifi không dây băng tần kép AC1200
- Băng tần kép (2.4Ghz:300Mbps+ 5GHz:867Mbps)
- Ăng-ten 4x5dBi
- MU-MIMO, Công nghệ Beamforming
- Kiểm soát băng thông thông minh
- Chế độ không dây: AP Router, Repeater
- Truy cập tối đa tối đa: 25-30 user
- 3 port x 10/100Mbps LAN, 1 port x 10/100Mbps WAN
- Hỗ trợ quản lý APP: BeeWiFi
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| WIRELESS | |
| Standards | WiFi 5
IEEE802.11ac/n 5GHz IEEE802.11b/g/n 2.4GHz |
| WiFi Speeds | AC1200
5GHz: 867 Mbps (802.11ac) 2.4GHz: 300 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses
4x Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | Dual-BandAllocate devices to different bands for optimal performance
OFDM Simultaneously communicates with multiple Wi-Fi 5/4 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes | AP Router Mode, AP Mode, WISP Mode, Client Mode, Repeater Mode |
| HARDWARE | |
| Processor | 1GHz CPU |
| Main Chipset | RTL8197FH-VG5+RTL8812FR |
| DDR/FLASH | 128MB/8MB |

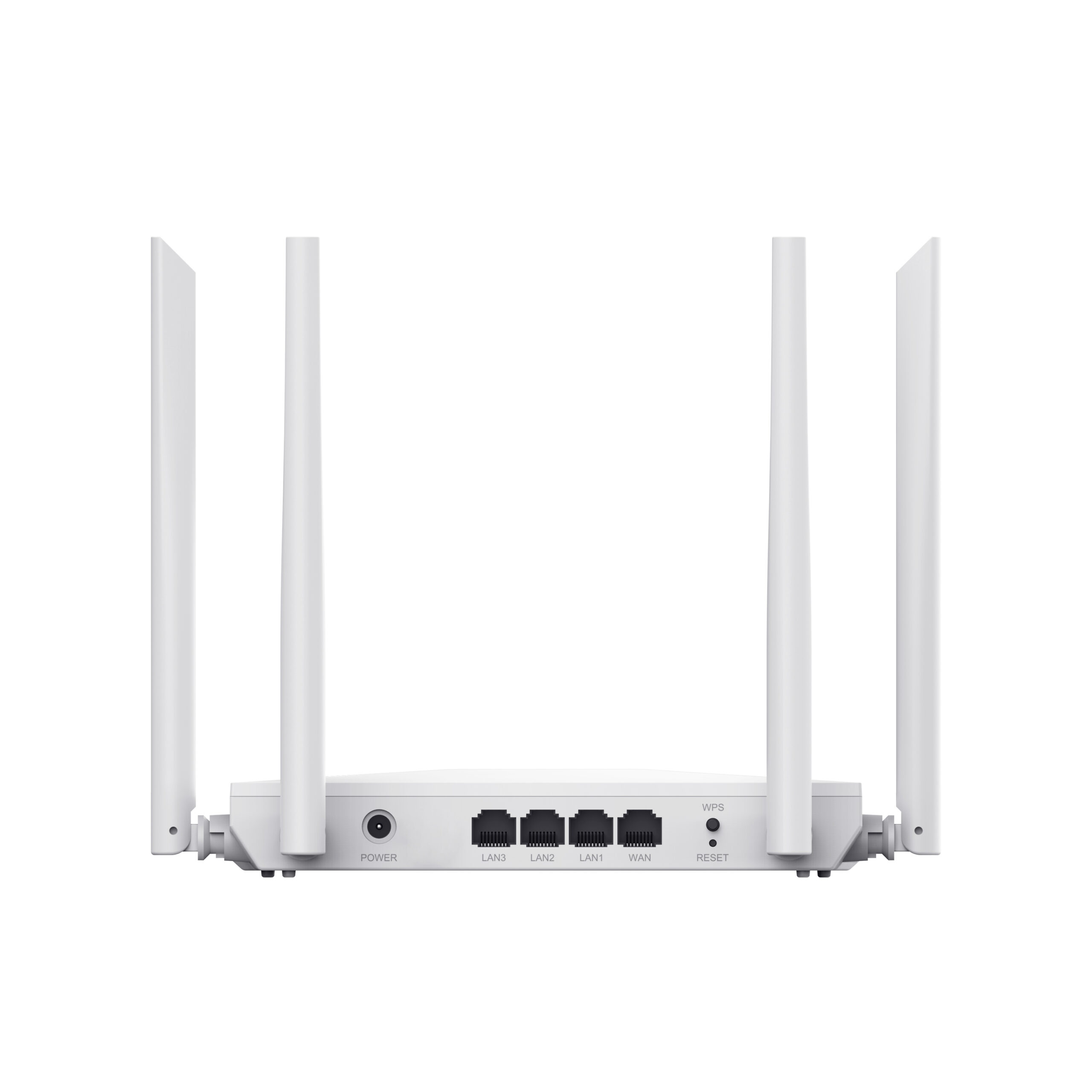

| Interface | 1x Fast WAN Port + 3x Fast LAN Ports |
| Buttons | WPS、RESET |
| Power | 12V1A |
| SOFTWARE | |
| WiFi Encryption | WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
| Network Security | Access Control, IP & MAC Binding |
| Guest Network | 4*5GHz Guest Network /4*2.4GHz Guest Network |
| Protocols | IPv4, IPv6 |
| WAN Types | DHCP, Static IP, PPPoE, L2TP, PPTP |
| Quality of Service | QoS by Device |
| Forwarding | Virtual Servers, DMZ, UPnP |
| IPTV | Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, DHCP Server |
| Access Control | IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering |
| Dynamic DNS | DynDns, no-ip |
| IGMP | IGMP Proxy, IGMP Snooping |
| VPN | PPTP Pass-through, L2TP Pass-through, IPSEC Pass-through, SIP Pass-through |
| Others | Bandwidth Control, Multiple SSID, FOTA, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore |
| PHYSICAL | |
| Dimensions(W×D×H) | 228*134*188mm |
| Package Contents | 1* NC21
1* Power Adapter 1* RJ45 Ethernet Cable 1* Quick Installation Guide |
