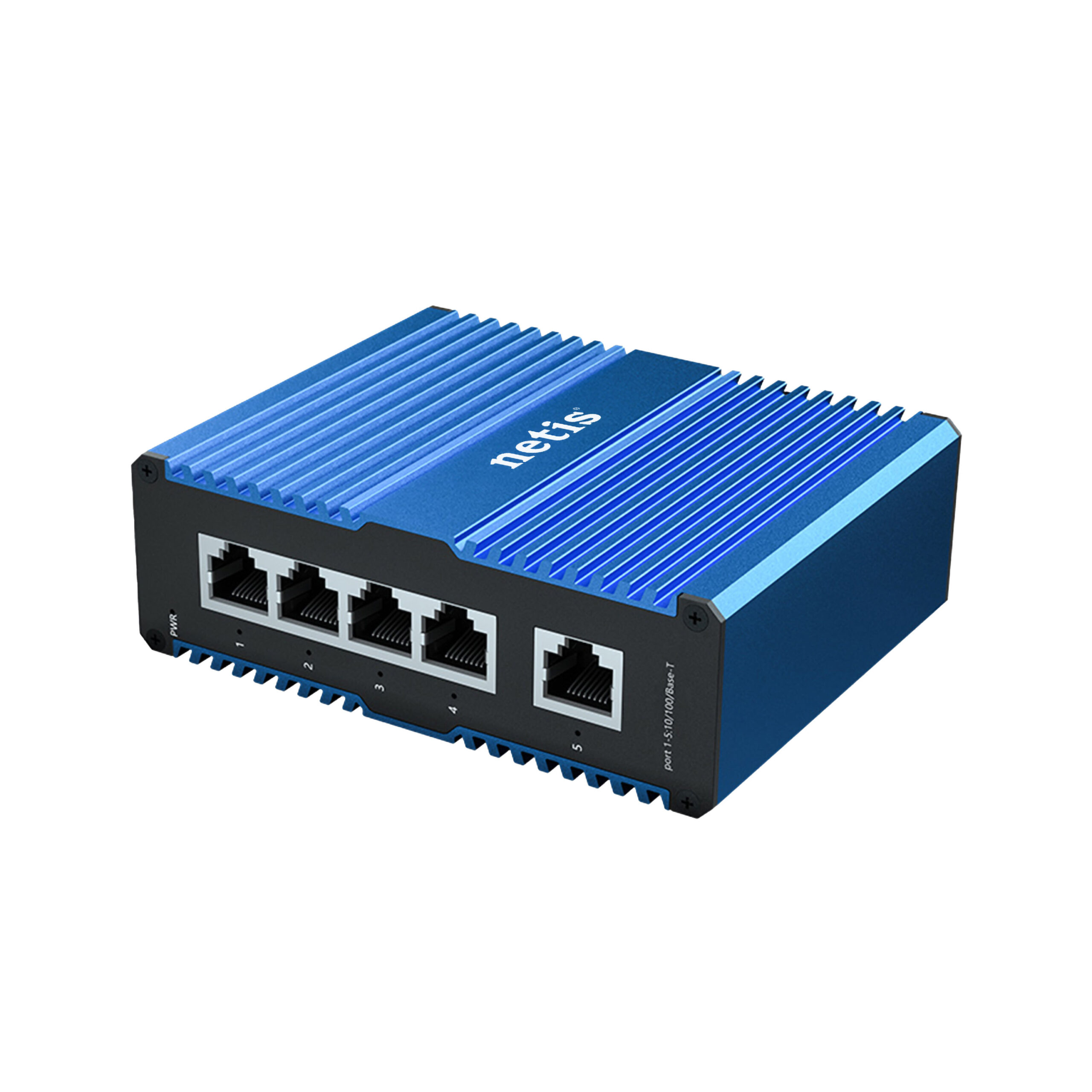

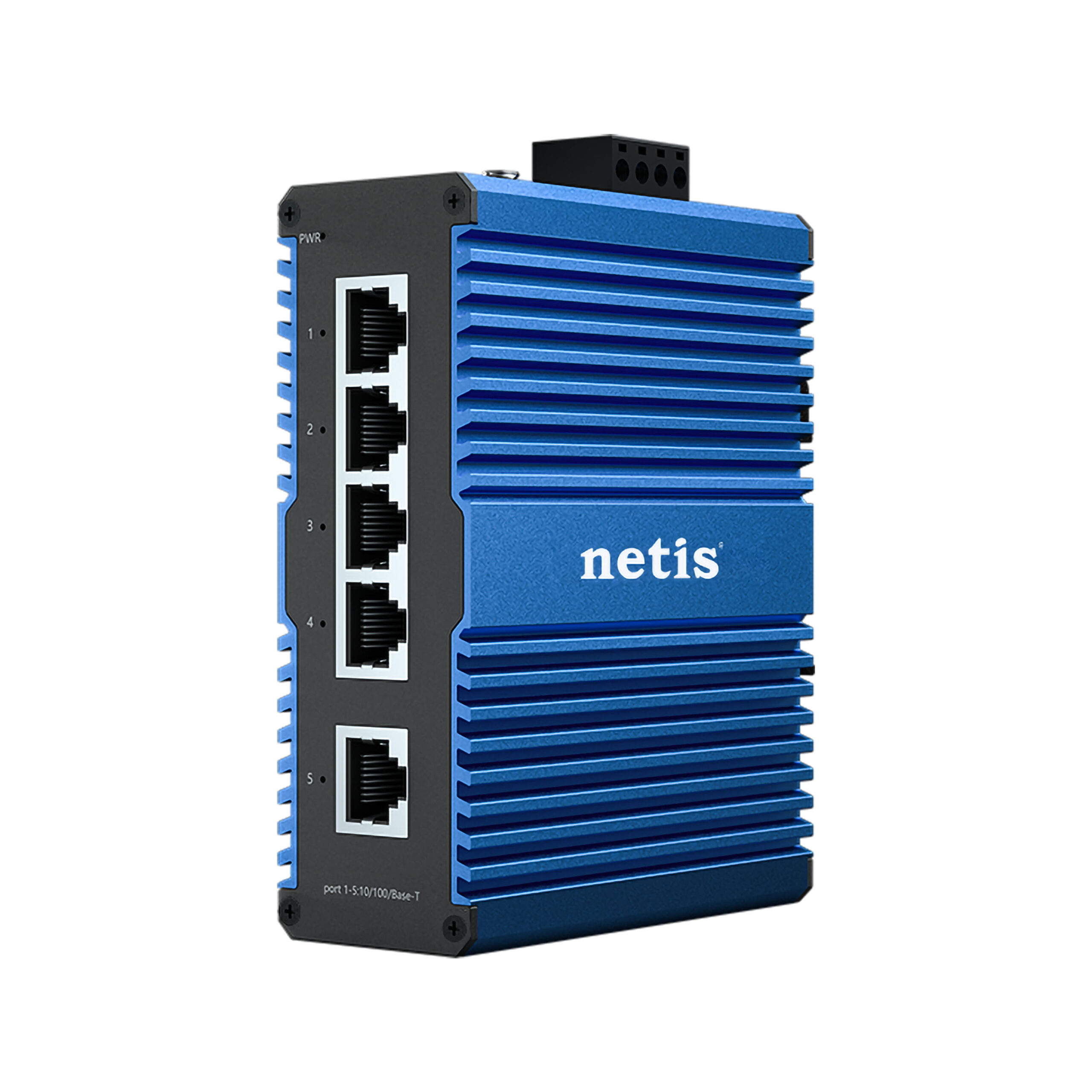

NIS1005 PRO
5 Port Industrial Ethernet Switch
- Tiêu chuẩn: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-Tx
- 5 * 10/100M RJ45 port
- Bộ nhớ lưu trữ MAC: 2K
- Khả năng chuyển đổi: 1Gbps
- Nguồn: DC 12-36V
- Tiêu chuẩn: IP40
- Chống sét: 6KV
- Nhiệt độ làm việc: -40°C ~ 75°C
- Kích thước (mm): 110mm x 87mm x 36mm
Hotline: 0868 527 555
Hardware
| Interface | Electrical Ports: 5 10/100Base-Tx (RJ45) |

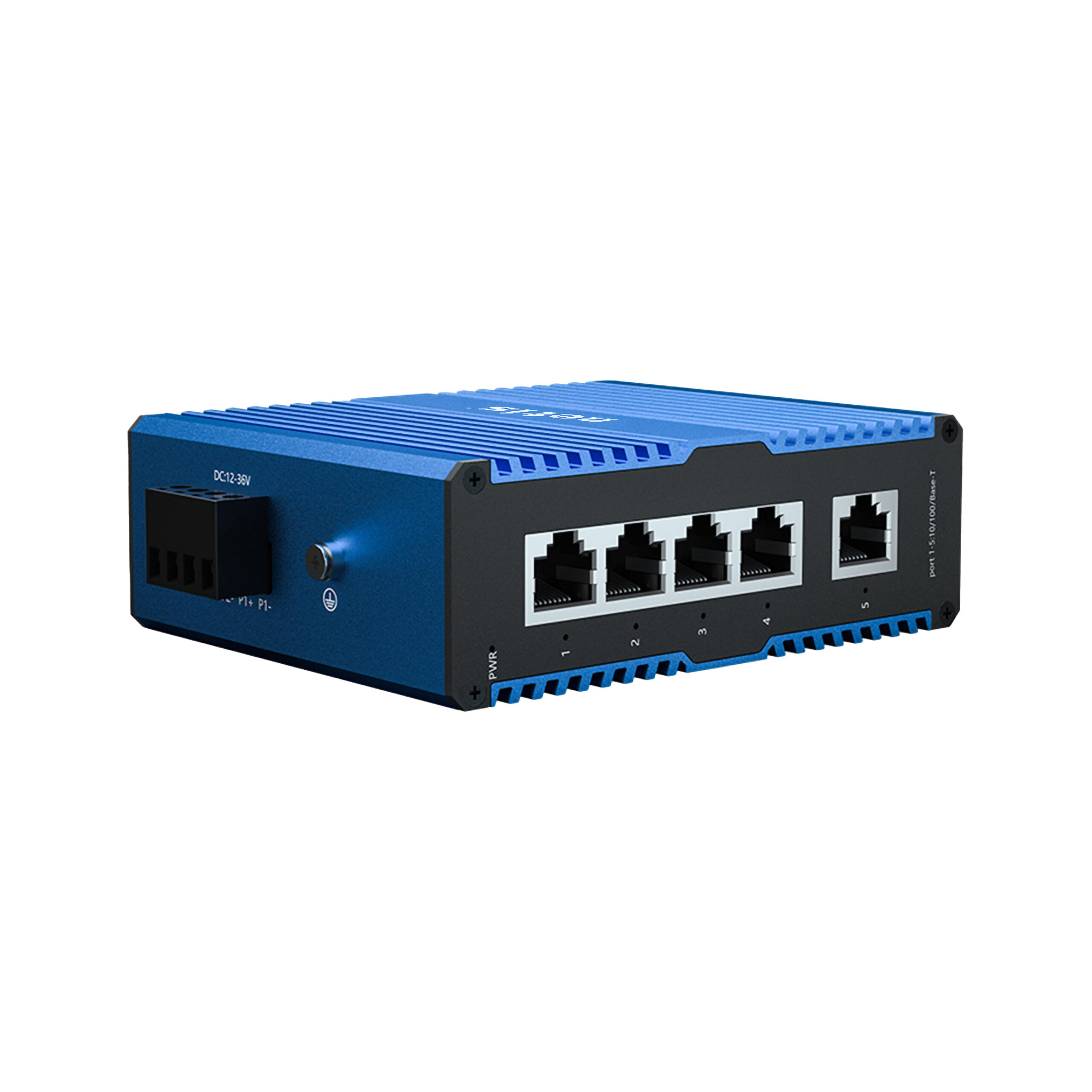

| Power | Power Terminal: 5-pin 3.81mm-spacing plug-in terminal block
Input Voltage: 12-36V Full load power consumption: < 2W Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support |

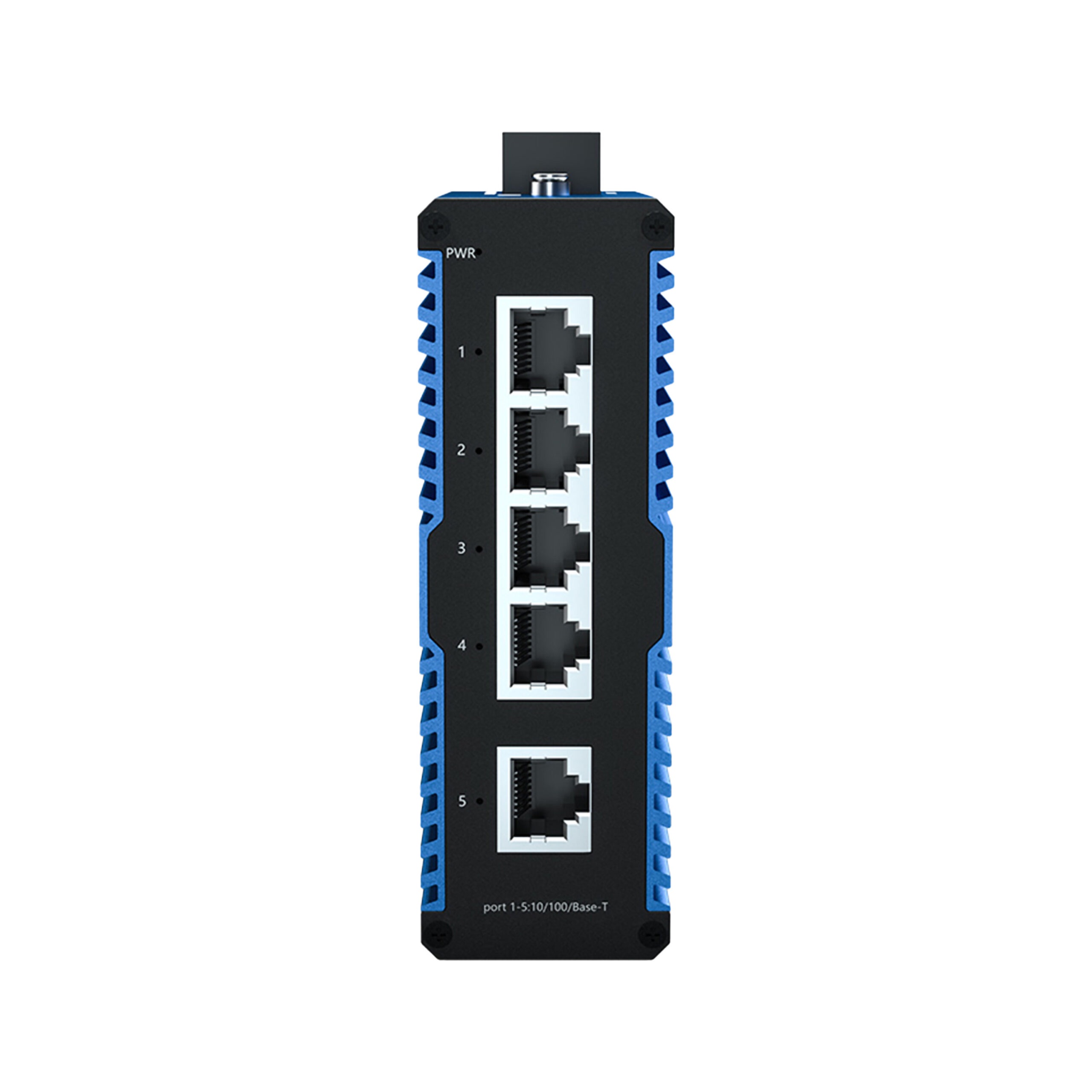

| LED | Power LED: PWR
Interface LED: RJ45 (Link&ACT) |
| Switch Properties | MAC Table: 2K
Switch Capacity: 1Gbps Packet Forwarding Rate: 0.744Mpps Switching Delay: <10us |
| Physical | Housing: Metal, Fanless

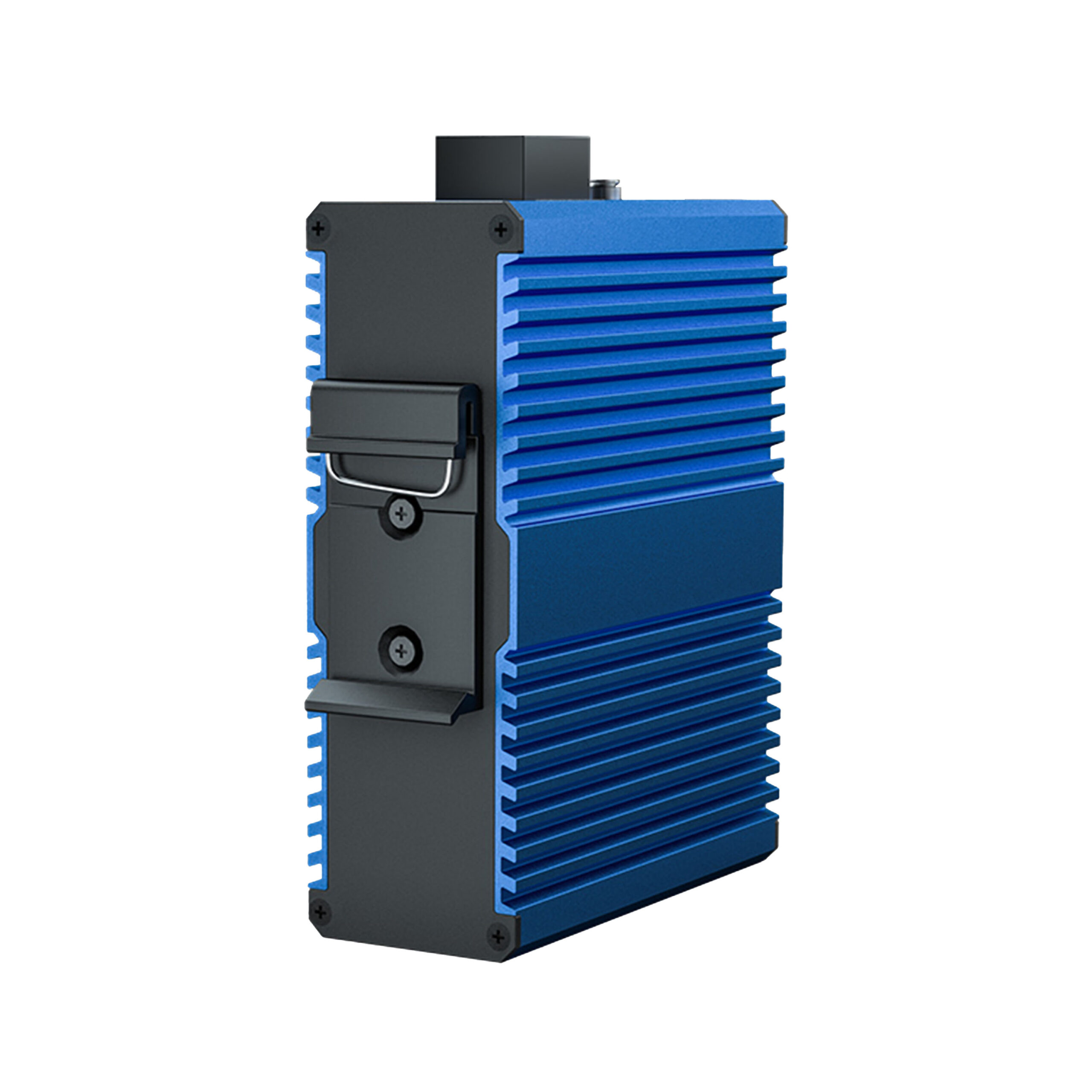

Protection Class: IP40 Dimensions: 110mm x 87mm x 36mm(W×D×H) Weight: 0.4kg Mounting: DIN-Rail |
Industrial Standard
| EMI | FCC CFR47 Part 15, EN55022/CISPR22, Class A |
| EMS | IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Machinery | IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
| Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-Tx |
Others
| Environment | Operating Temperature: -40°C to 85°C
Storage Temperature: -45°C to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Dimensions | 125*115*34mm(L*W*H) |
