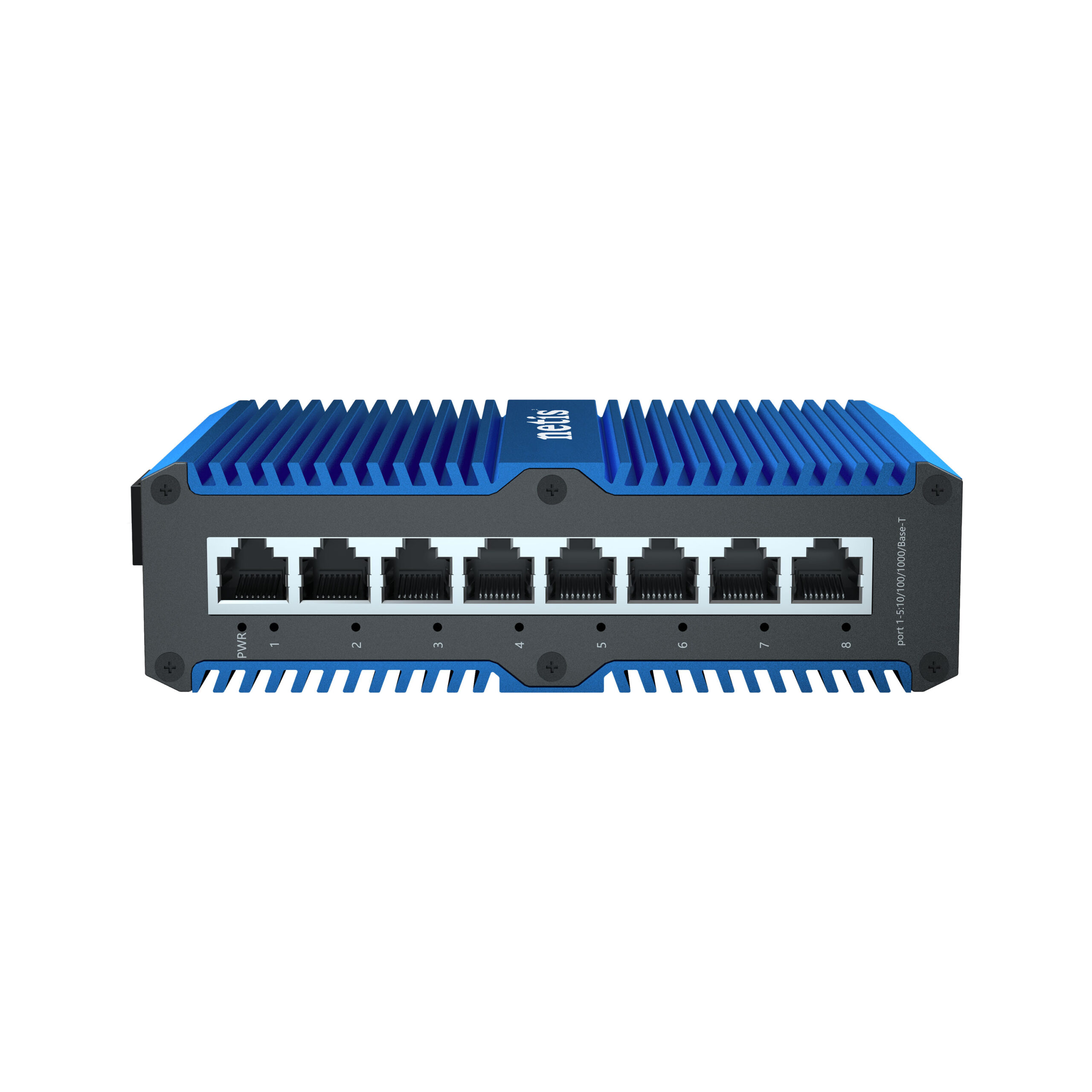

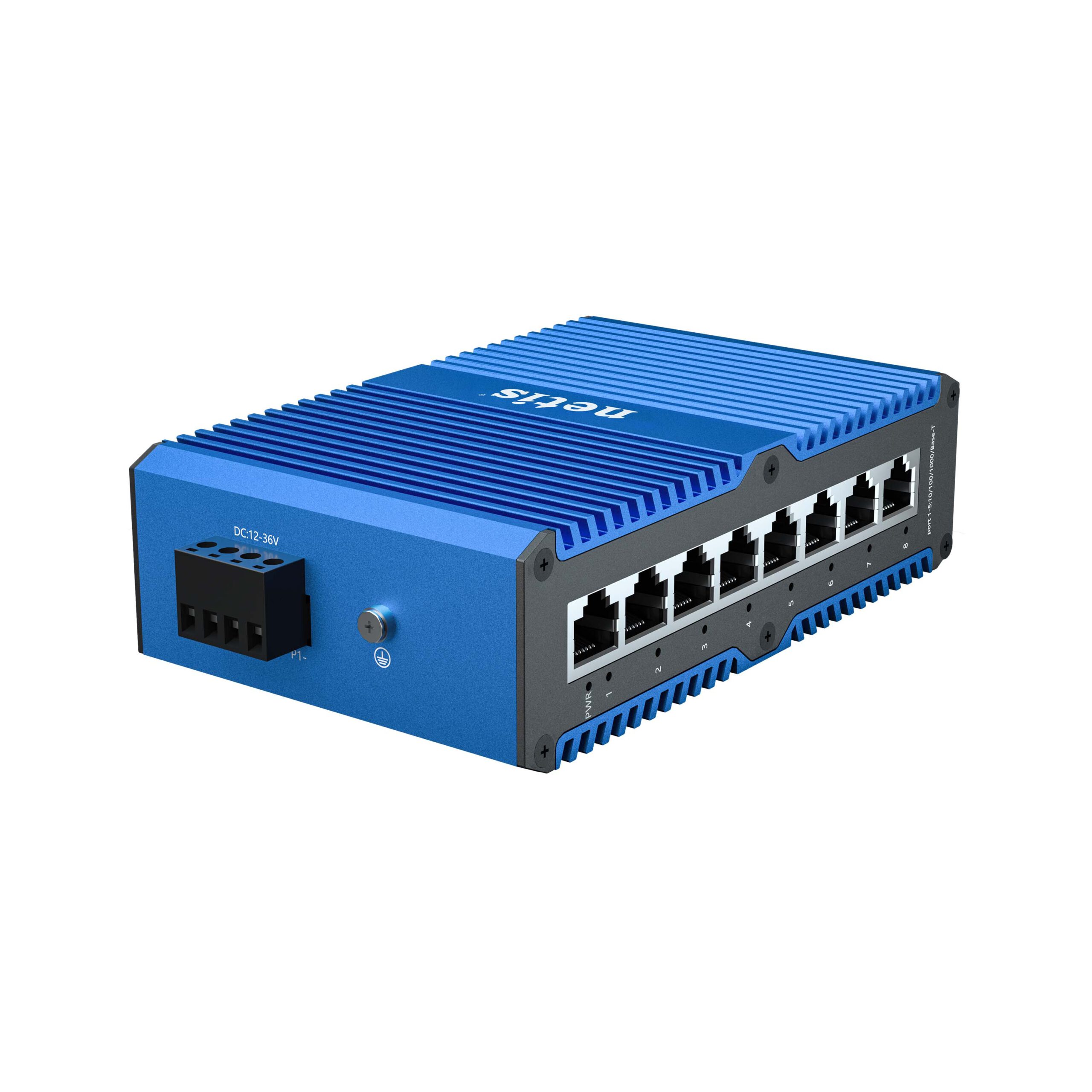

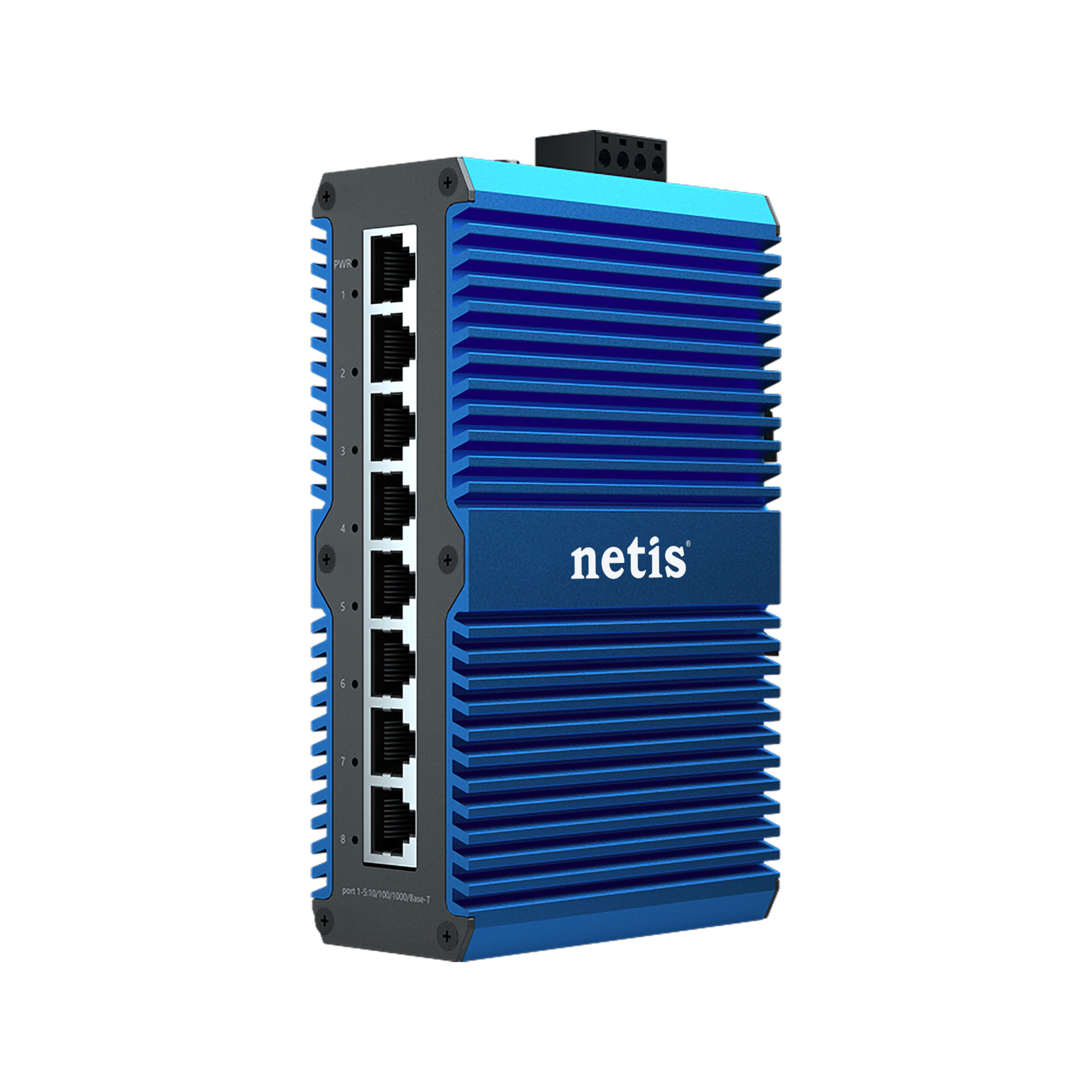

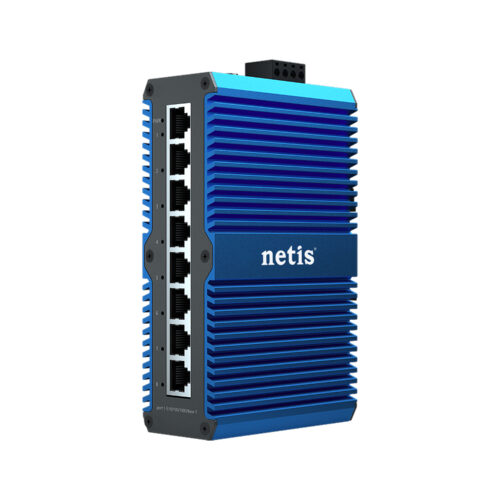

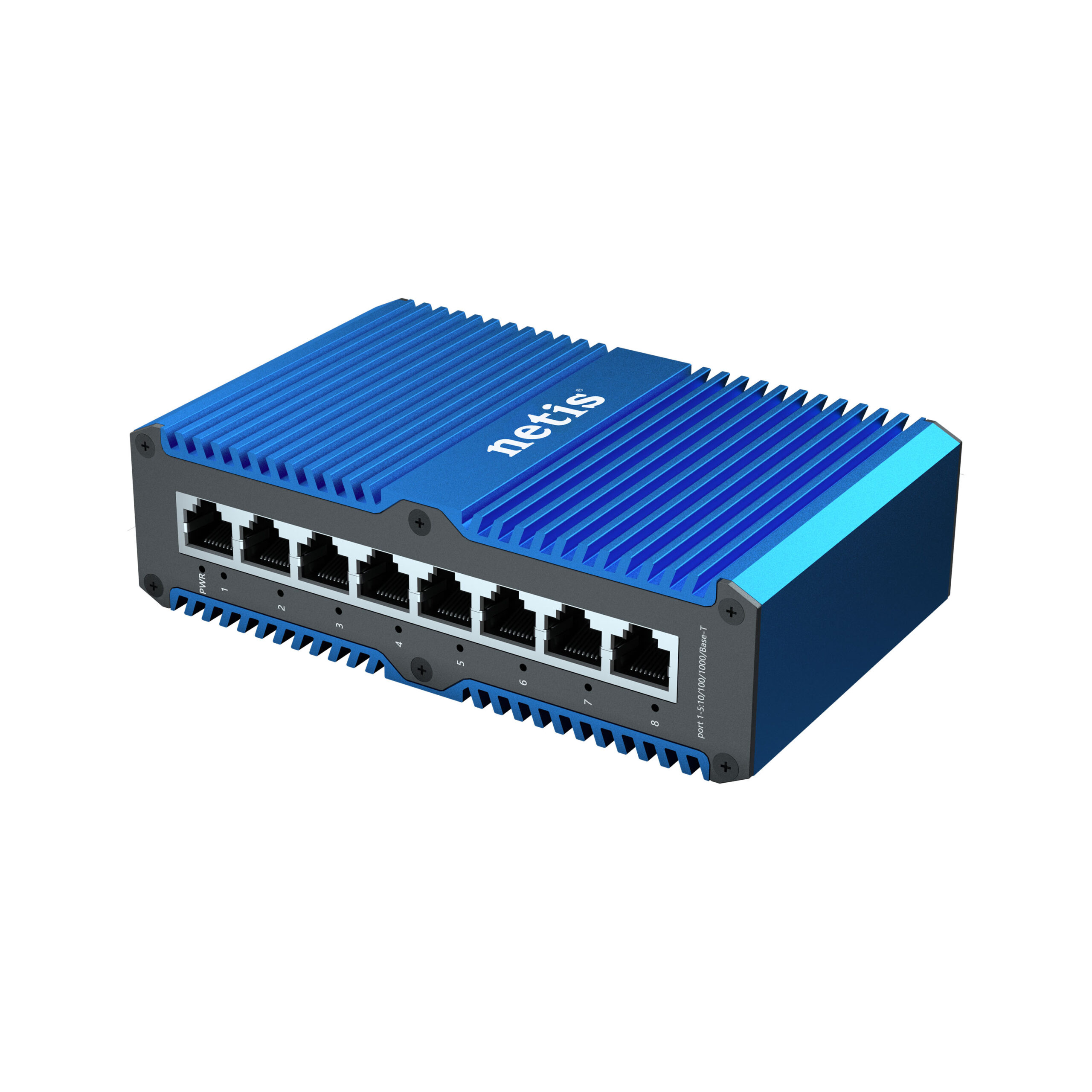

NIS3008 PRO
8 Port Gigabit Industrial Ethernet Switch
- Tiêu chuẩn: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-Tx, IEEE 802.3z 1000Base-T
- 8 * 10/100/1000M RJ45 port
- Bộ nhớ lưu trữ MAC: 4K
- Khả năng chuyển đổi: 16Gbps
- Nguồn: DC 12-36V
- Tiêu chuẩn: IP40
- Chống sét: 6KV
- Nhiệt độ làm việc: -40°C ~ 75°C
- Kích thước (mm): 140mm x 90mm x 40mm
Hotline: 0868 527 555
Hardware
| Interface | Electrical Ports: 8 10/100/1000Base-Tx (RJ45) |
| Power | Power Terminal: 5-pin 3.81mm-spacing plug-in terminal block
Input Voltage: 12-36V Full load power consumption: < 4W Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support |
| LED | Power LED: PWR
Interface LED: RJ45 (Link&ACT) |
| Switch Properties | MAC Table: 4K
Switch Capacity: 16Gbps Packet Forwarding Rate: 11.904Mpps Switching Delay: <10us |
| Physical | Housing: Metal, Fanless
Protection Class: IP40 Dimensions: 140mm x 90mm x 40mm(W×D×H) Weight: 0.5kg Mounting: DIN-Rail |
Industrial Standard
| EMI | FCC CFR47 Part 15, EN55022/CISPR22, Class A |
| EMS | IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Machinery | IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
| Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-Tx IEEE 802.3z 1000Base-T |
Others
| Environment | Operating Temperature: -40 to 85°C
Storage Temperature: -45 to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Approvals | CE, FCC, RoHS |
| MTBF | 360,000 hrs |
