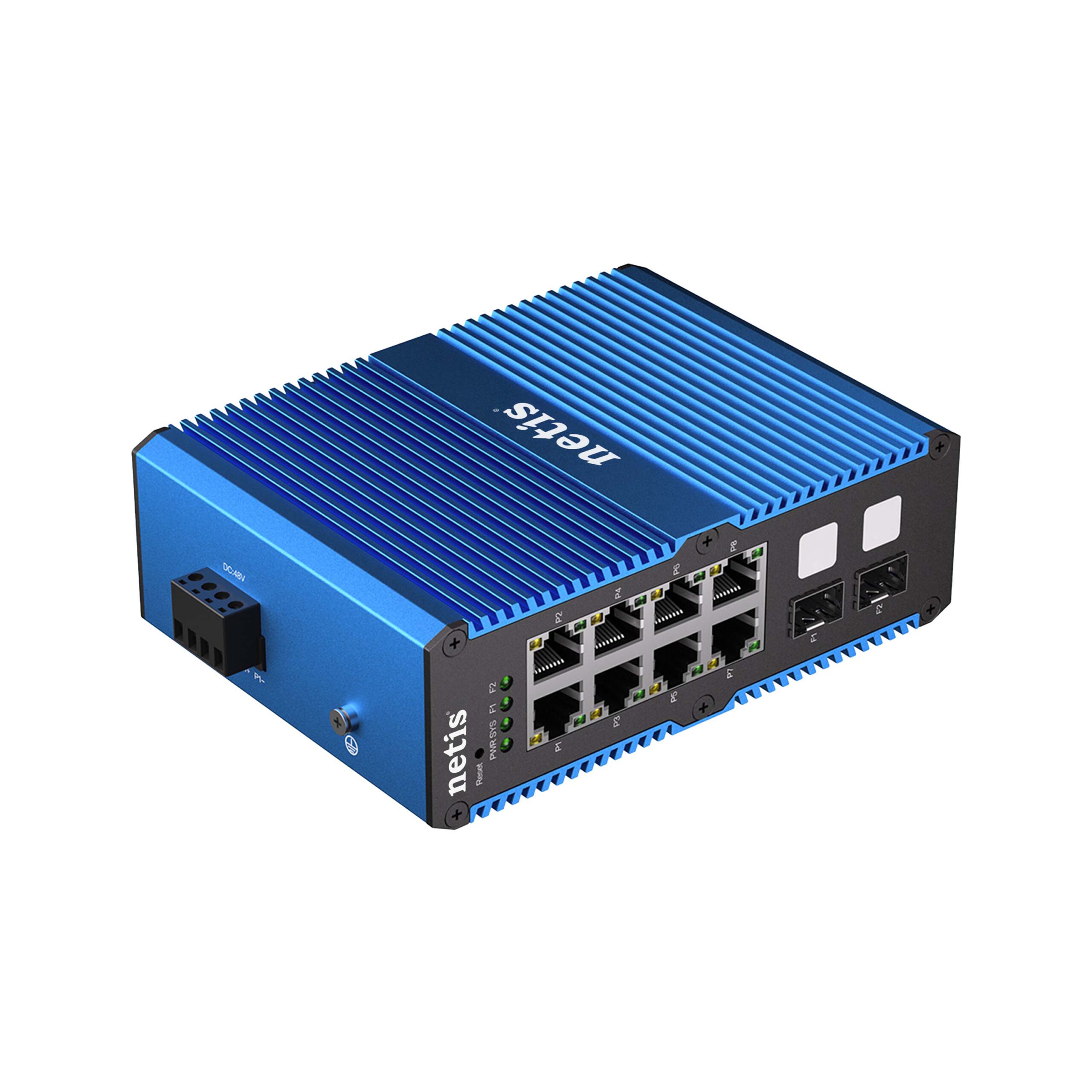

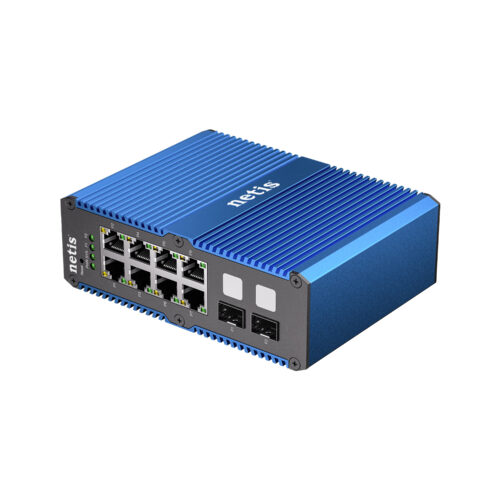

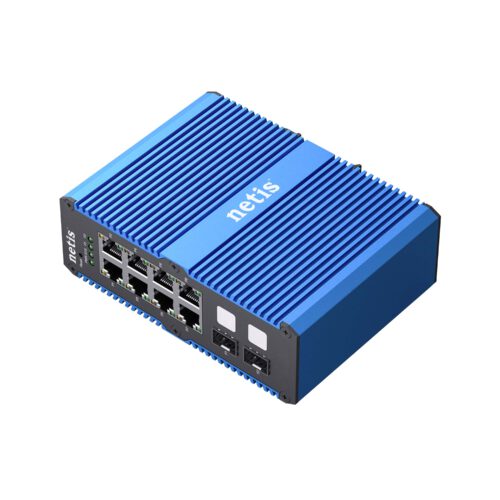

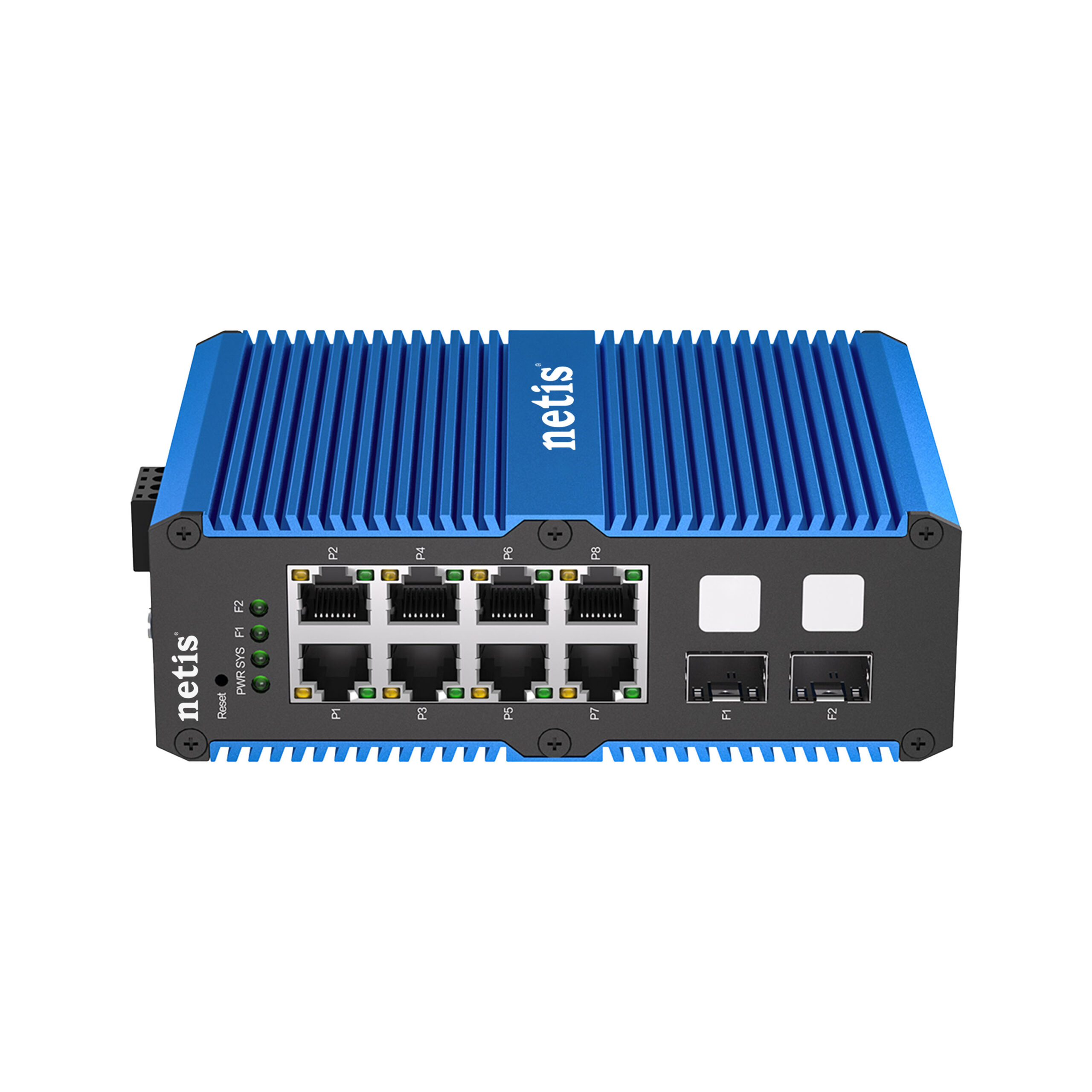

NIS3010G-WMC
Managed Switch PoE Industrial 8 Port PoE + 2 SFP
- Tiêu chuẩn: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-Tx, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X
- 8 * 10/100/1000M RJ45 port
- Bộ nhớ lưu trữ MAC: 4K
- Khả năng chuyển đổi: 12Gbps
- Công suất PoE: Mỗi cổng max 30W
- Tổng công suất: 120W
- Nguồn: DC 48-56V
- Tiêu chuẩn: IP40
- Chống sét: 6KV
- Hỗ trợ quản lý: WEB
- Nhiệt độ làm việc: -40°C ~ 85°C
- Kích thước (mm): 40mm x 90mm x 140mm
Hotline: 0868 527 555
Hardware
| Interface | Optical port: 2 1000Base-X (SFP)
Electrical port: 8 10/100/1000Base-T (RJ45) |
| Power | Power Terminal: 5-pin 3.81mm-spacing plug-in terminal block
Input Voltage: 48-56V Full load power consumption: < 4W Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support |
| LED | Power LED: PWR
Interface LED: RJ45 (Link&ACT)，Fiber(Link&ACT) |
| POE | IEEE 802.3.af : Supported 15.4W/port
IEEE 802.3.at: Supported 30W/port |
| Ethernet Properties | MAC Table: 4K
MTU: 9K Bytes Switch Capacity: 12Gbps Packet Buffer:4.1M Packet Forwarding Rate: 8.928Mpps VLAN: port VLAN，802.1Q VLAN range:4K VLAN port type: Access/Trunk/Hybrid Port rate limiting：0~1G, 8Kbps step Ring protection: IEEE802.1w RSTP, VRing with less than 20ms switch time Storm Control: Broadcast/multicast/DLF |
| Physical | Housing: Metal, Fanless
Protection Class: IP40 Dimensions: 40mm x 90mm x 140mm (W×D×H) Weight: 0.5kg Mounting: DIN-Rail |
Management and Maintenance
| Management mode | WEB |
| Configuration management | Backup and restore |
| User management | Password modification |
| Upgrade management | via WEB |
| Maintenance | LLDP, port mirror, DDM, port statistics |
Industrial Standard
| EMI | FCC CFR47 Part 15, EN55022/CISPR22, Class A |
| EMS | IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Machinery | IEC60068-2-6 (Vibration)
IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
| Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-Tx IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X |
Others
| Environment | Operating Temperature: -40 to 85°C
Storage Temperature: -45 to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Approvals | CE, FCC, RoHS |
| MTBF | 360,000 hrs |
