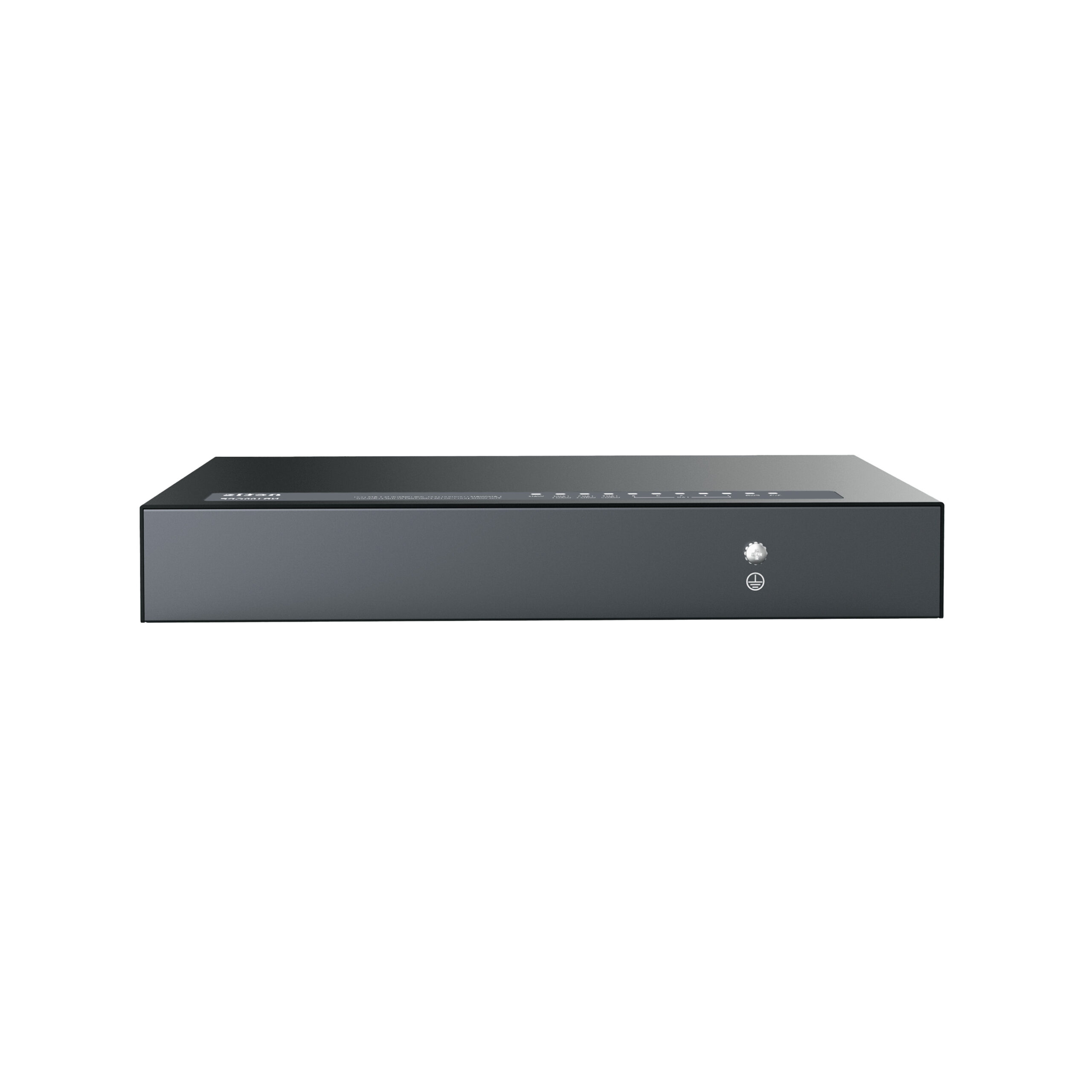

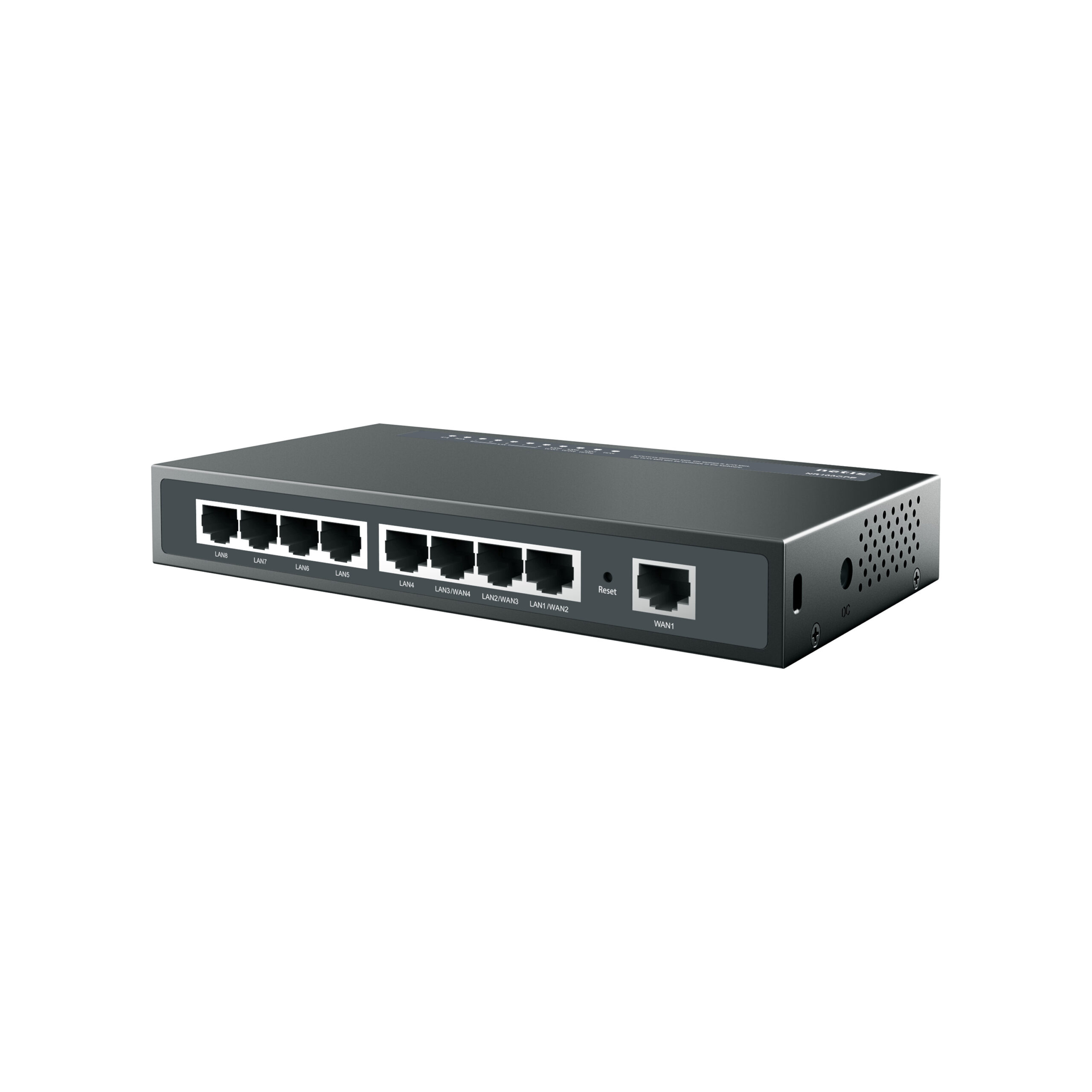

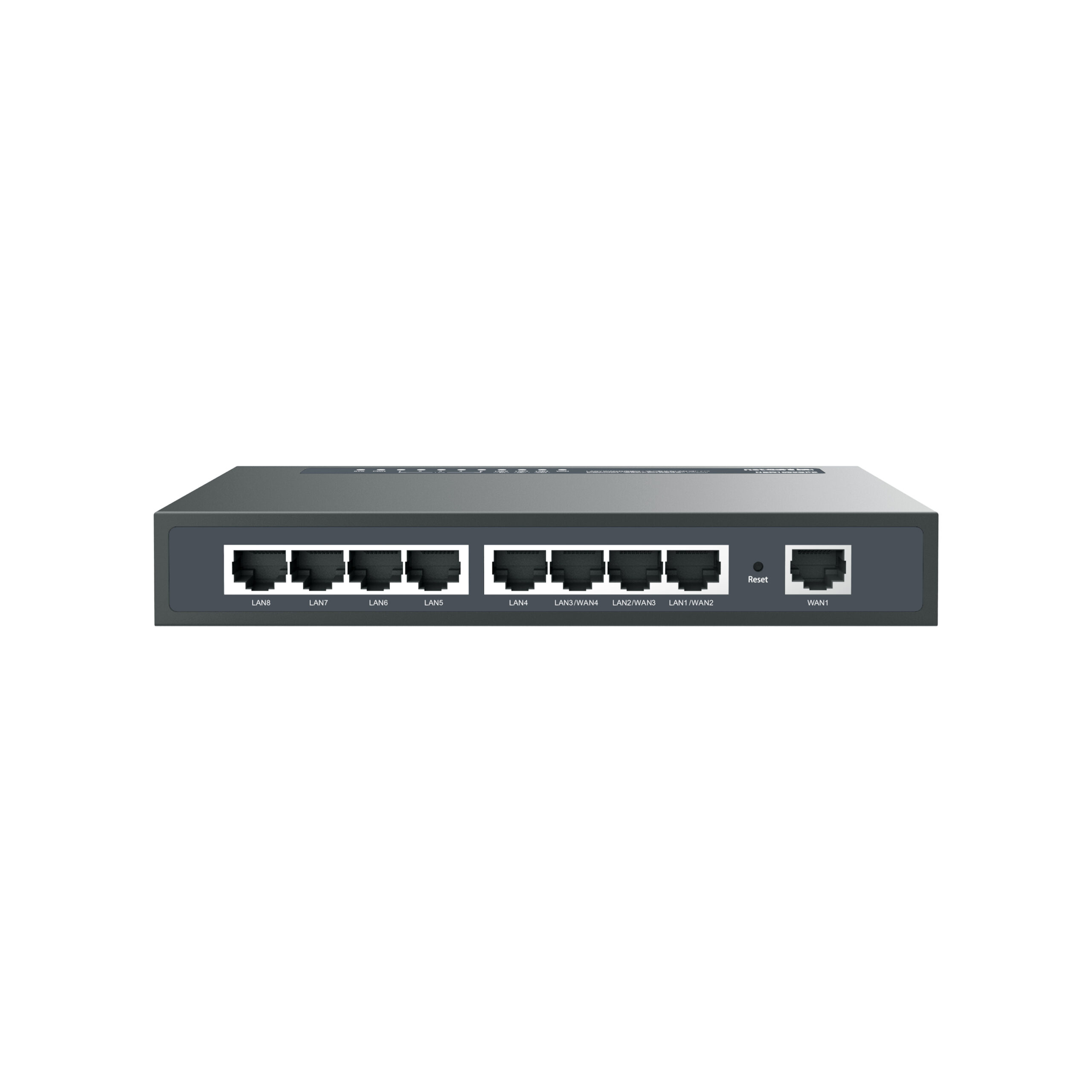

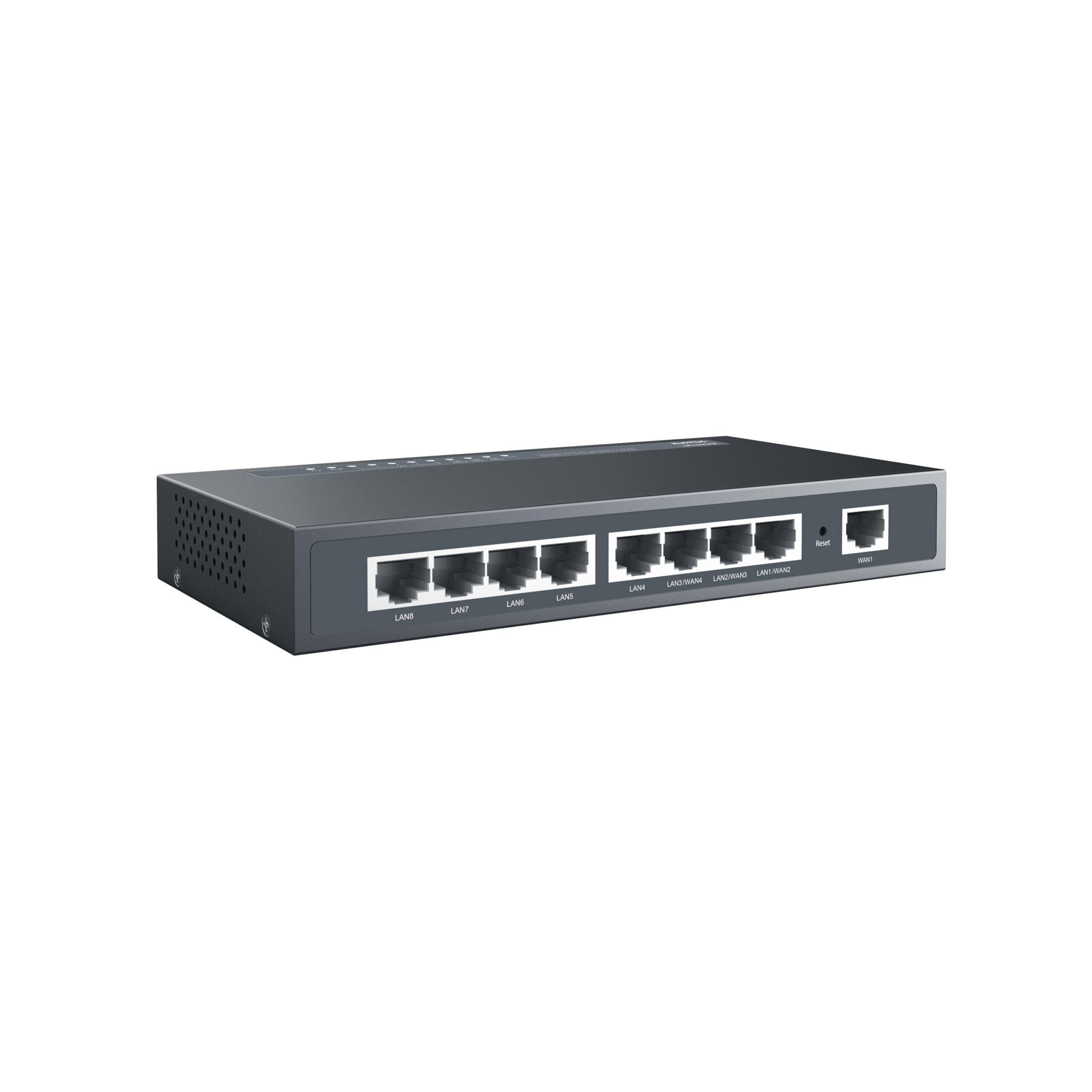

NR109GPE
Bộ định tuyến Gigabit tích hợp PoE
- Cân bằng tải / Kiểm soát băng thông hiệu quả cho từng thiết bị
- Truy cập tối đa tối đa: 200 user / quản lý AP :100
- 9 * Gigabit RJ45 port (4WAN/8LAN)
- LAN port tích hợp PoE, tổng công suất 120W
- WAN: PPPoE server, DHCP Client, Static IP, MAC Cloning
- Hỗ trợ quản lý APP: BeeWiFi
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Hardware
| Interface | 5 * 10/100/100/1000M AUTO MDI/MDIX RJ45 LAN ports
3 * 10/100/100/1000M AUTO MDI/MDIX RJ45 WAN/LAN ports 1 * 10/100/100/1000M AUTO MDI/MDIX RJ45 WAN port |
| LED | PWR, WAN, LAN, SYS |
| Button | Reset Button |
| Power Supply | External 48V/2A |
Software
| Applications | Policy routing
Dynamic domain name Remote access Port mapping Static routing |
| Network | External network Settings
Intranet Settings DHCP DNS Dynamic domain name Static routing Hostname Interface Settings Port mapping uPnP Settings Switch |
| AC | AC control
AP Setup Control AP template Setup AP RF Settings AP Advanced Settings AP Device Management AP Setup upgrade |
| Remote management | BeeWiFi |
| Setup wizard | Quick Configuration Wizard
Expert Configuration Wizard |
| System | Overview
State System log Host monitoring Real-time monitoring Historical monitoring Application statistics Interface Overview |
Others
| Dimensions | 190 * 100 * 28mm |
| Environment | Operating Temperature : 0℃ ~ 40℃
Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 95% RH non condensing |
