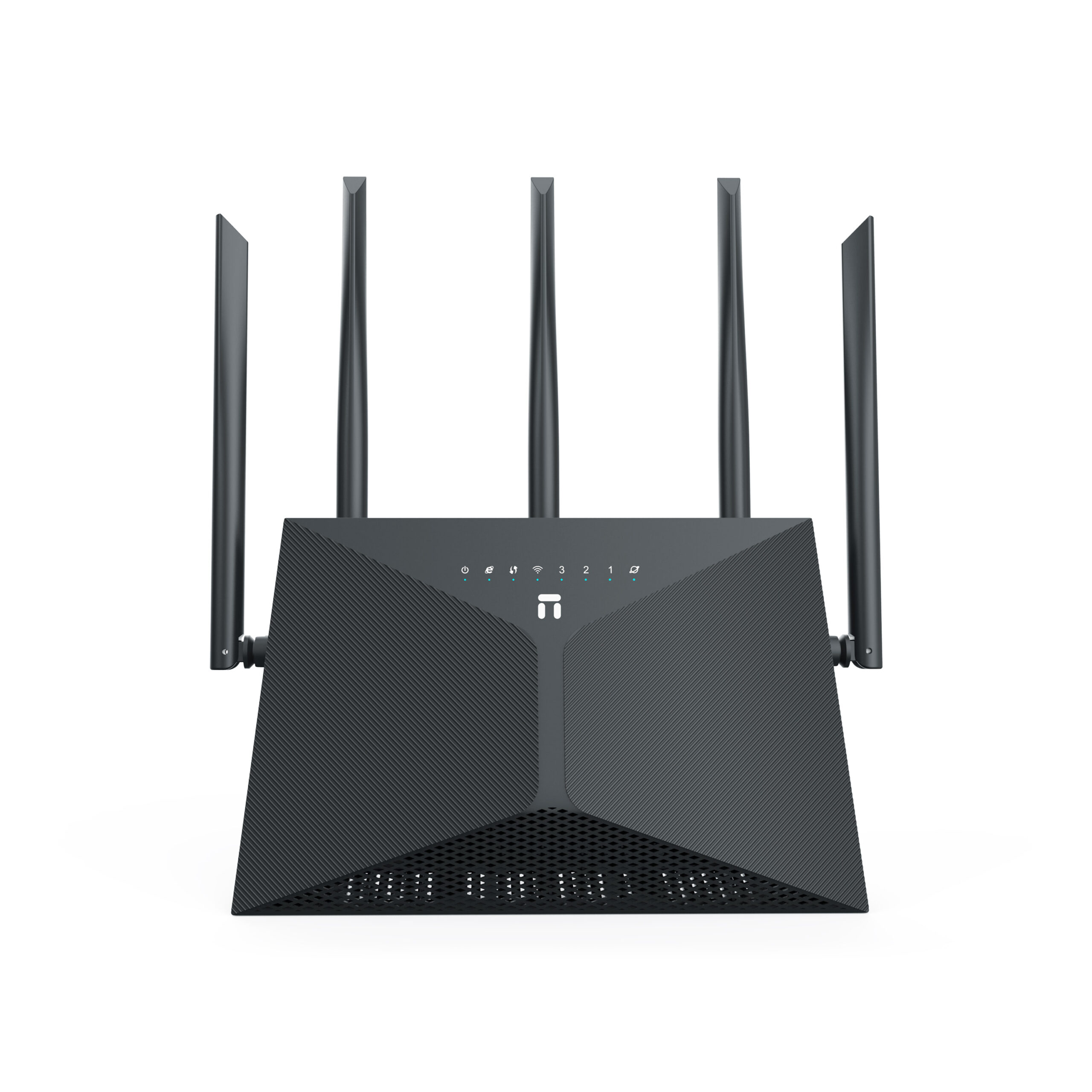

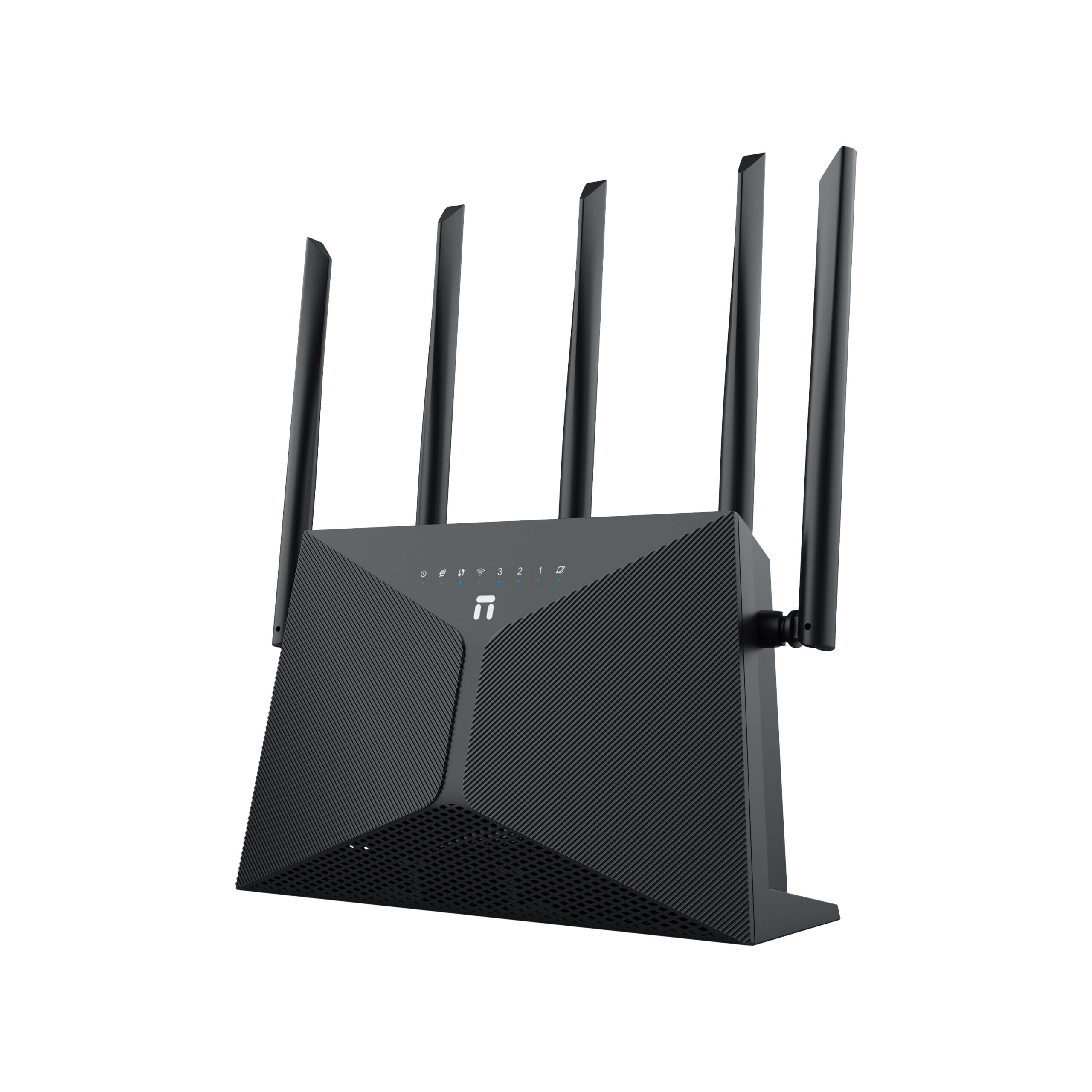

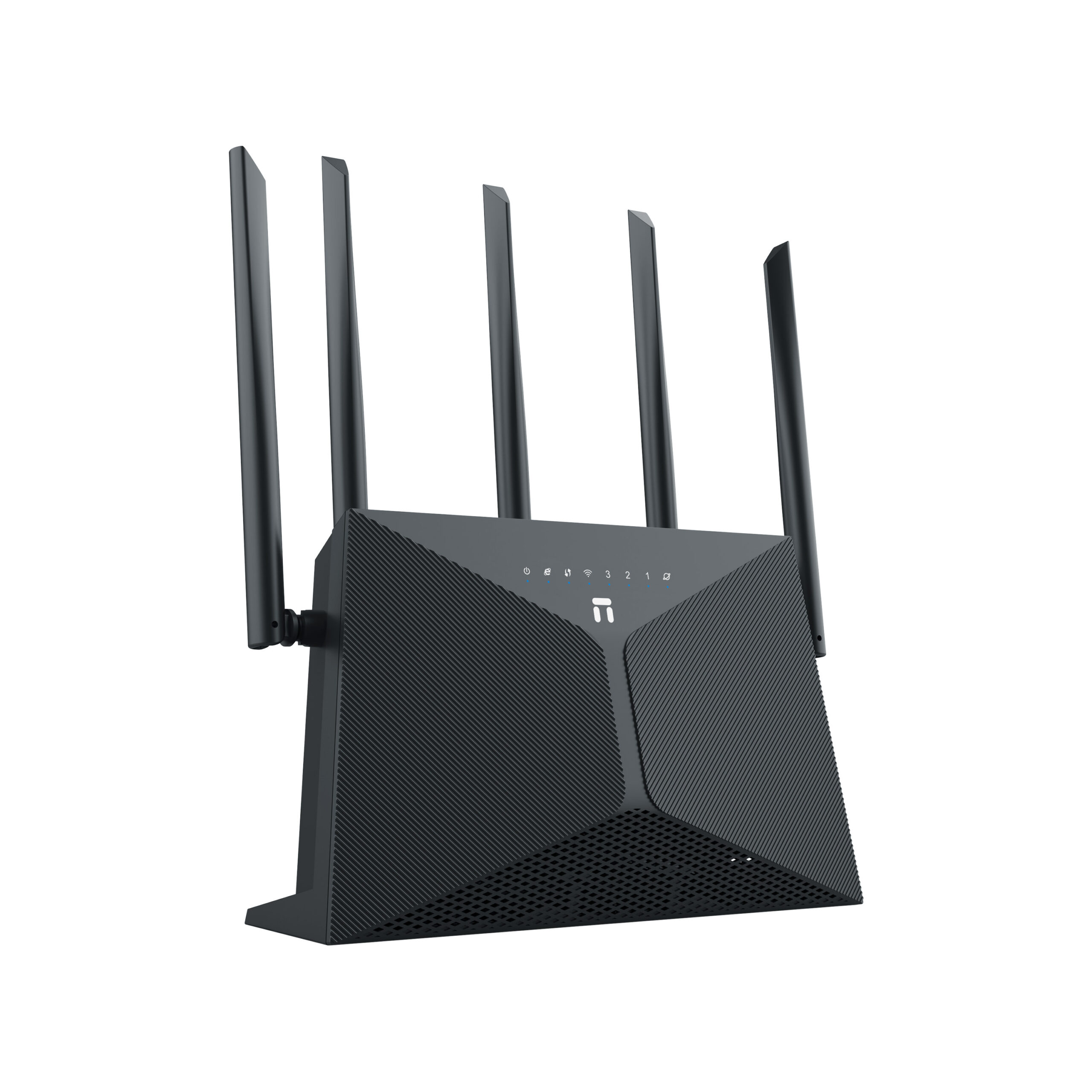

NX30
Thiết bị phát Wifi không dây băng tần kép AC3000 (Wi-Fi 6)
- Băng tần kép (2.4Ghz:574Mbps+ 5GHz:2402Mbps )
- Ăng-ten 5x5dBi;
- MU-MIMO, Công nghệ Beamforming
- Kiểm soát băng thông thông minh
- Chế độ không dây: AP Router, Repeater, EASY MESH
- Truy cập tối đa tối đa: 40-50 user
- 3 port x 100/1000Mbps LAN, 1 port x 100/1000Mbps WAN
- Hỗ trợ quản lý APP: BeeWiFi
Hotline: 0868 527 555
Wireless
| Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz |
| WiFi Speeds | AX3000
5 GHz: 2402Mbps 2.4 GHz: 574Mbps |
| WiFi Range | 3 Bedroom Houses
5x Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | Dual-Band
Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6/5/4 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode, Repeater Mode |
Hardware
| Processor | 1.3GHz CPU |
| DDR/FLASH | 256MB/128MB |

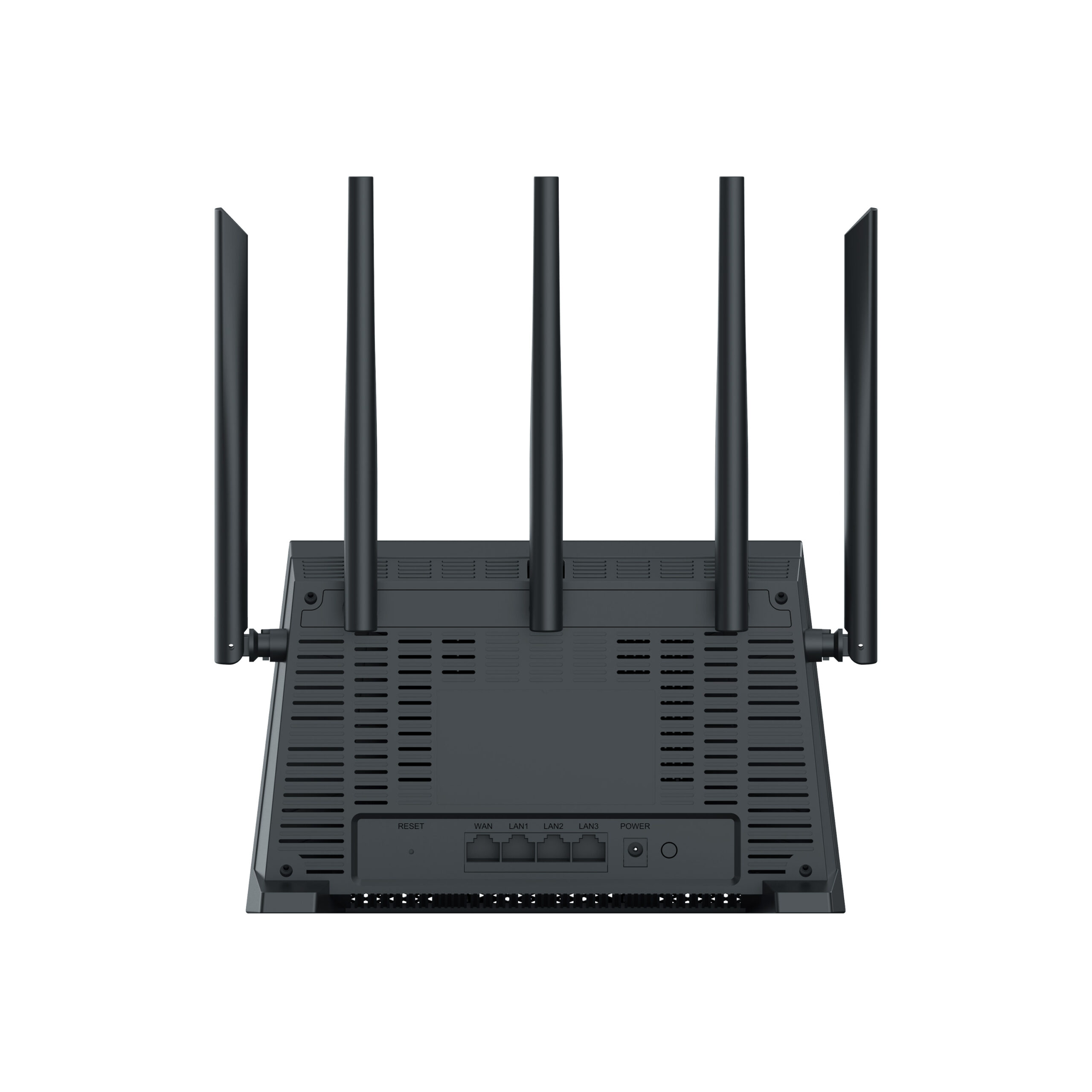

| Interface | 1* Gigabit WAN Port+3*Gigabit LAN Ports |
| Buttons | WPS/MESH、RESET |
| Power | DC 12V/1.5A |
Software
| WiFi Encryption | WPA, WPA2, WPA/WPA2-Enterrprise, WPA3 |
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| Guest Network | 2 * 5 GHz Guest Network
2 * 2.4 GHz Guest Network |
| Protocols | IPv4, IPv6 |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Parental Controls | URL Filtering, Time Controls |
| Quality of Service | QoS by Device |
| IPTV | Bridge, Tag VLAN |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| Dynamic DNS | DynDns, no-ip |
| Management | Web based Configuration (HTTP), Remote Management, Telnet Management, Tr069, Tr143, Tr181, Tr098, SNMP, Web Based Firmware
Upgrade, CWMP, Diagnostic Tools |
| Others | FOTA, TR069, Remote Access, Backup & Restore |
Physical
| Dimensions(W×D×H) | 9.3*5.7*2.0 in(236.0*144.0*50.0 mm) |
| Package Contents | 1*NX30
1* Power Adapter 1* RJ45 Ethernet Cable 1* Quick Installation Guide |
Others
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ ( 32℉ ~104℉ )
Storage Temperature: -40℃~70℃ (-40℉ ~158℉ ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
