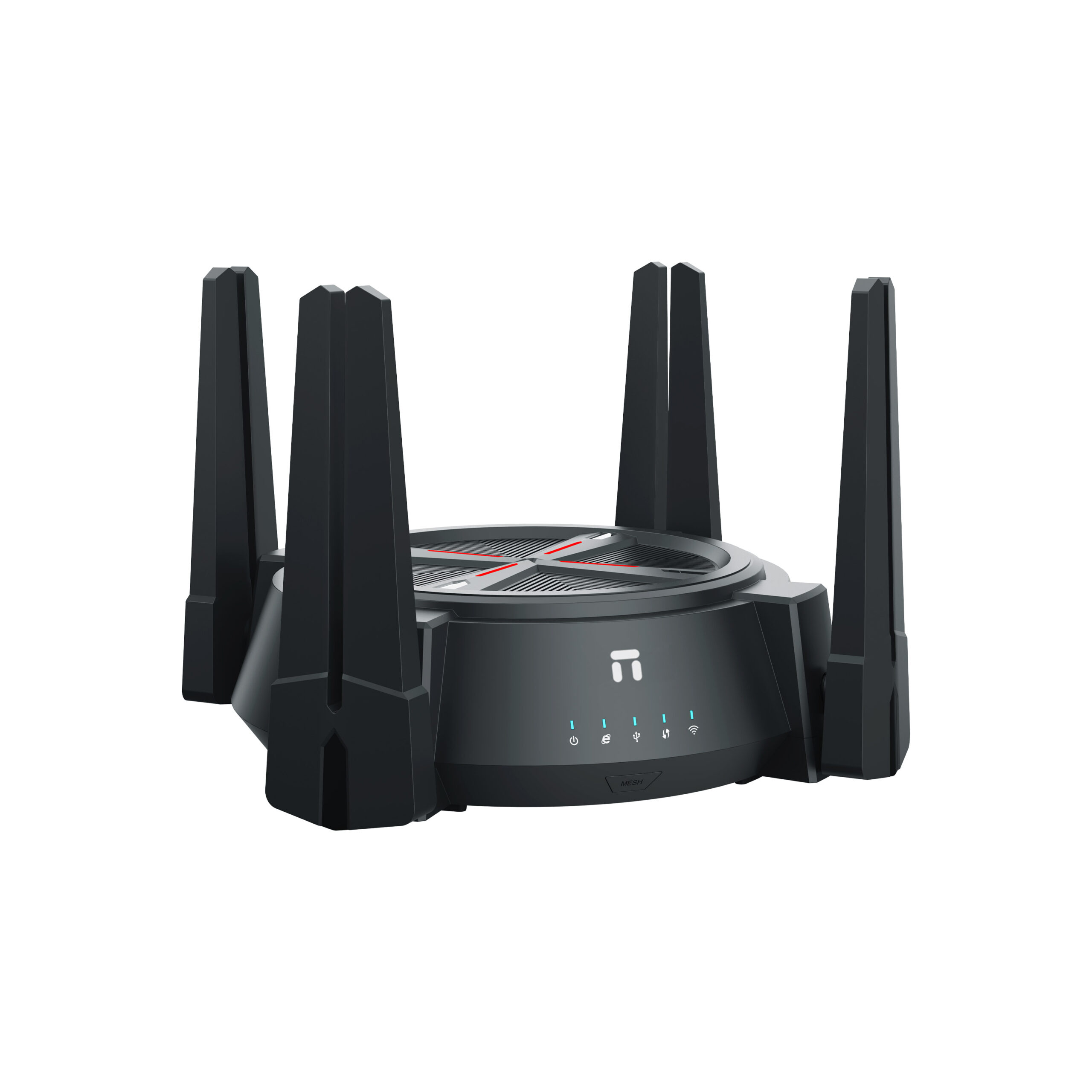

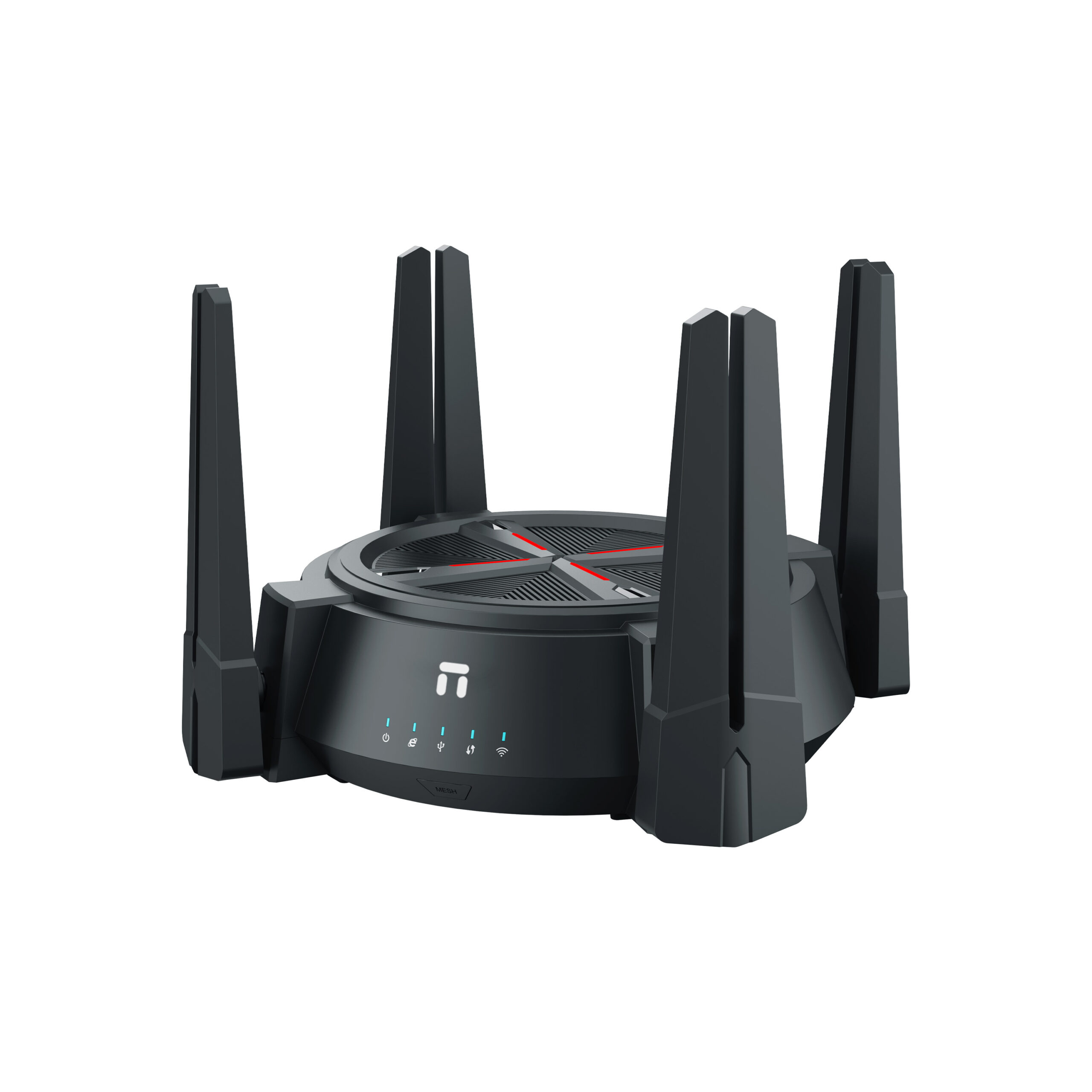

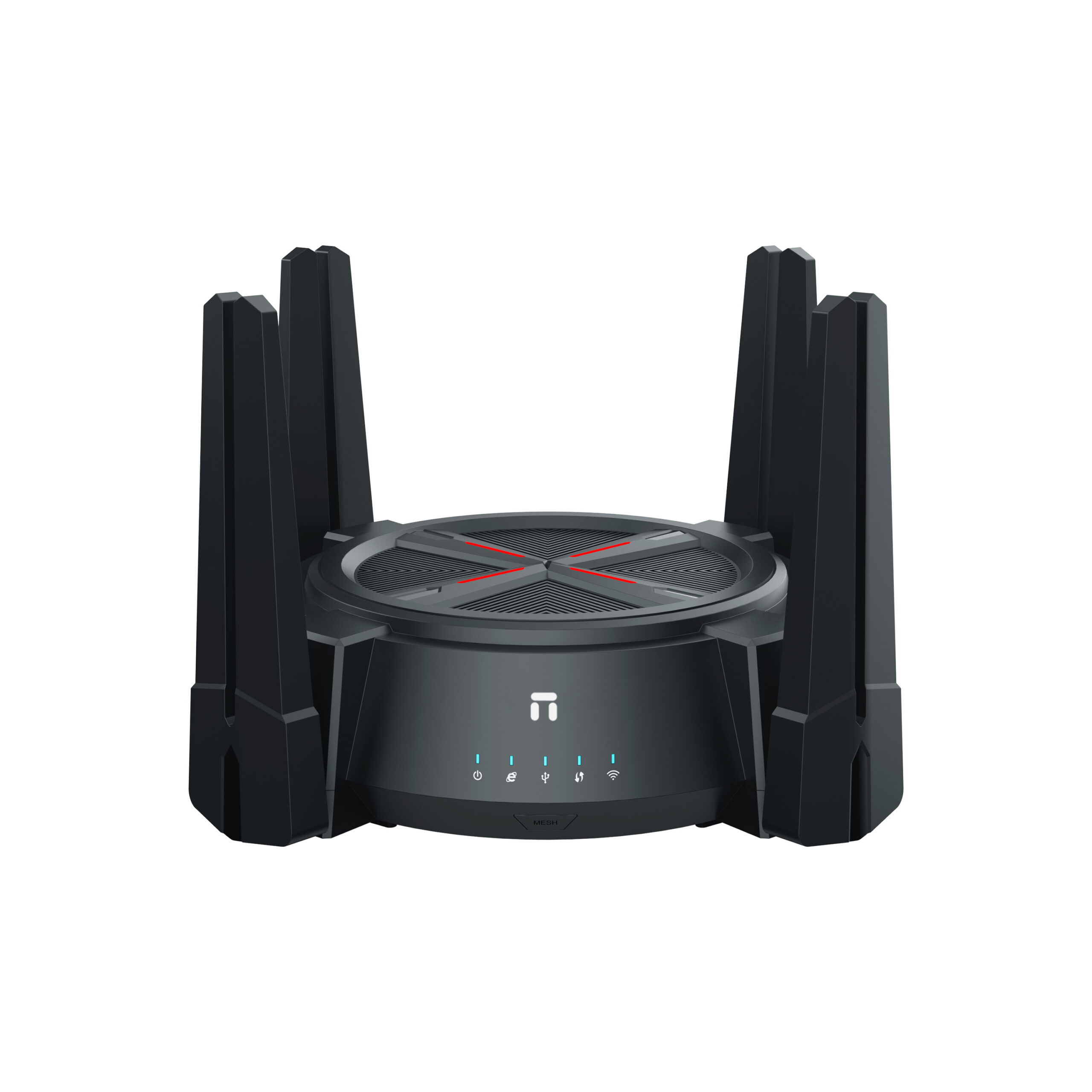

NX62
Thiết bị phát Wifi không dây băng tần kép AC6000 (Wi-Fi 6)
- Băng tần kép (2.4Ghz:1148Mbps+ 5GHz:4804Mbps )
- Ăng-ten 8x5dBi;
- MU-MIMO, Công nghệ Beamforming
- Kiểm soát băng thông thông minh
- Chế độ không dây: AP Router, Repeater, EASY MESH
- Truy cập tối đa tối đa: 60-80 user
- 3 port x 1G LAN, 1 port x 2.5G LAN, 1 port x 2.5G WAN, 1 port x USB 3.0
- Hỗ trợ quản lý APP: BeeWiFi
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Wireless
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| Signal Rate | AX6000 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 1148 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses
8× Fixed High-Performance Antennas |
| WiFi Capacity | Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
| Wireless Modes | AP Router Mode, WISP Mode, |
Hardware
| Processor | 2 GHz Quad-Core CPU |
| DDR/FLASH | 512MB/128MB |

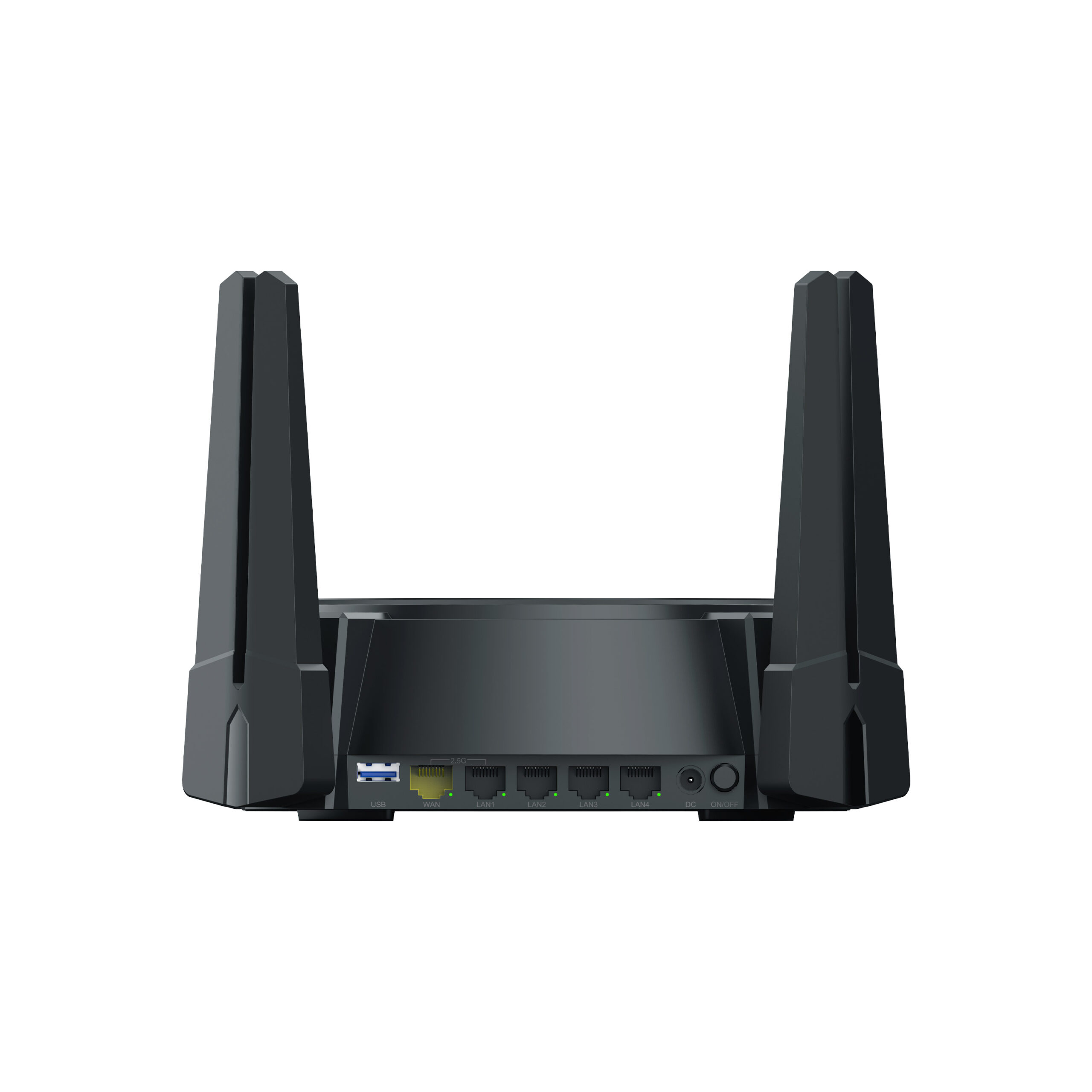

| Interface | 1* 2.5G WAN Port
1*2.5G LAN Port 3* 1G LAN Ports 1* USB 3.0 Port |
| Buttons | Mesh(WPS)、RESET，Rower On/Off |
| Power | DC 12V/2A(Output) |
Software
| WiFi Encryption | WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
| Network Security | Access Control, IP & MAC Binding |
| Guest Network | 4*5GHz Guest Network /4*2.4GHz Guest Network |
| Protocols | IPv4, IPv6 |
| WAN Types | DHCP, Static IP, PPPoE |
| Quality of Service | QoS by Device |
| Forwarding | Virtual Servers, DMZ, UPnP |
| IPTV | Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, DHCP Server |
| Access Control | IP Filtering, MAC Filtering, Domain Filtering, IPv6 Filtering |
| Dynamic DNS | DynDns, no-ip |
| IGMP | IGMP Proxy, IGMP Snooping |
| Others | Bandwidth Control, Multiple SSID, TR069, WOL, ARP List, Static Routing, Port Setting, Remote Access, Backup & Restore |
Physical
| Dimensions(W×D×H) | 267mm * 267mm * 167mm |
| Package Contents | 1* NX62
1* Power Adapter 1* RJ45 Ethernet Cable 1* Quick Installation Guide |
Others
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS, EAC, UkrSEPRO |
| Environment | Operating Temperature: 0℃~40℃ ( 32℉ ~104℉ )
Storage Temperature: -40℃~70℃ (-40℉ ~158℉ ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Test Data
| WiFi Transmission Power | 2.4G: 22DB
5G: 19.5DB |
