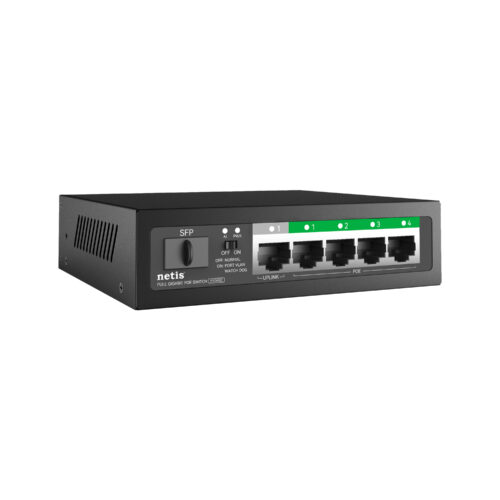

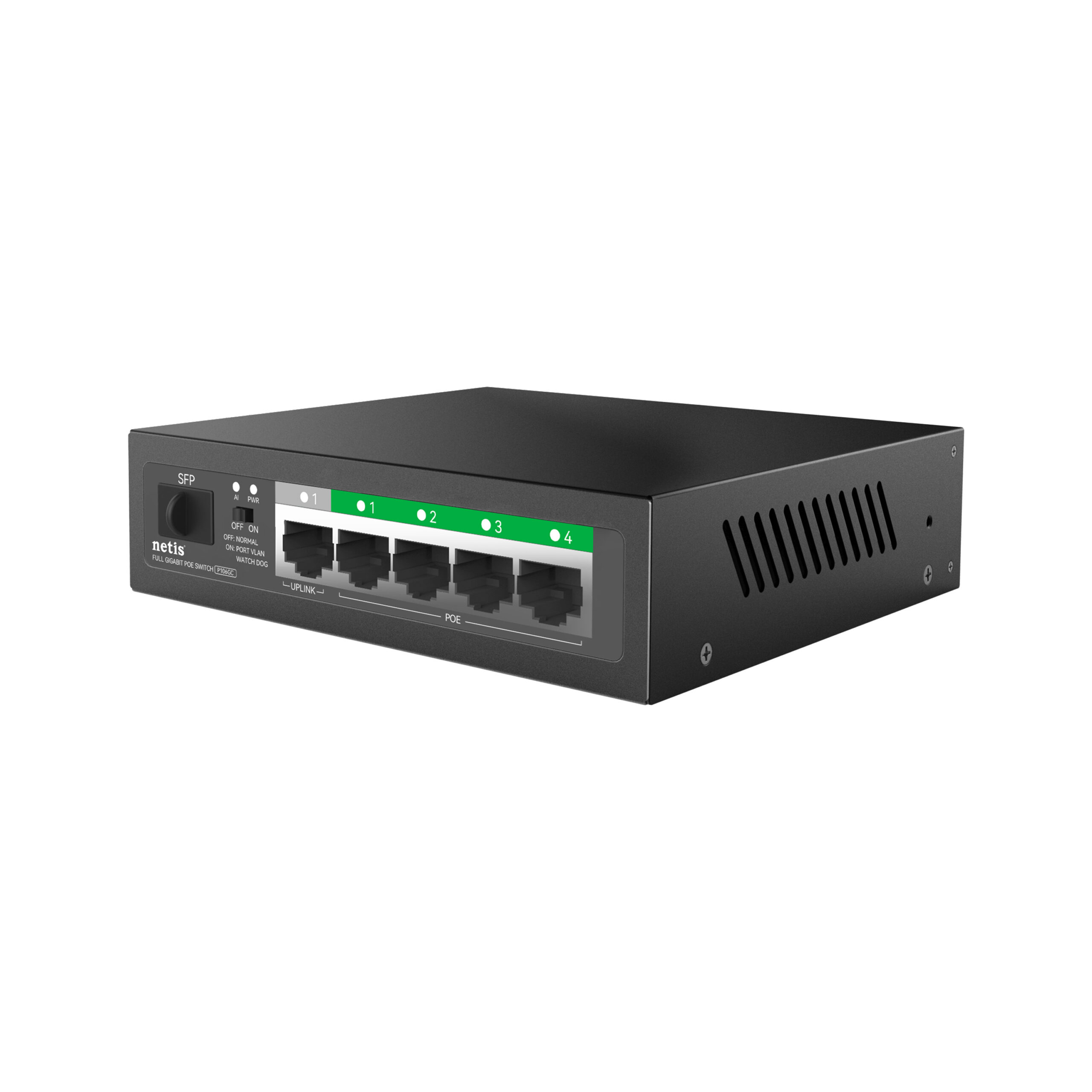

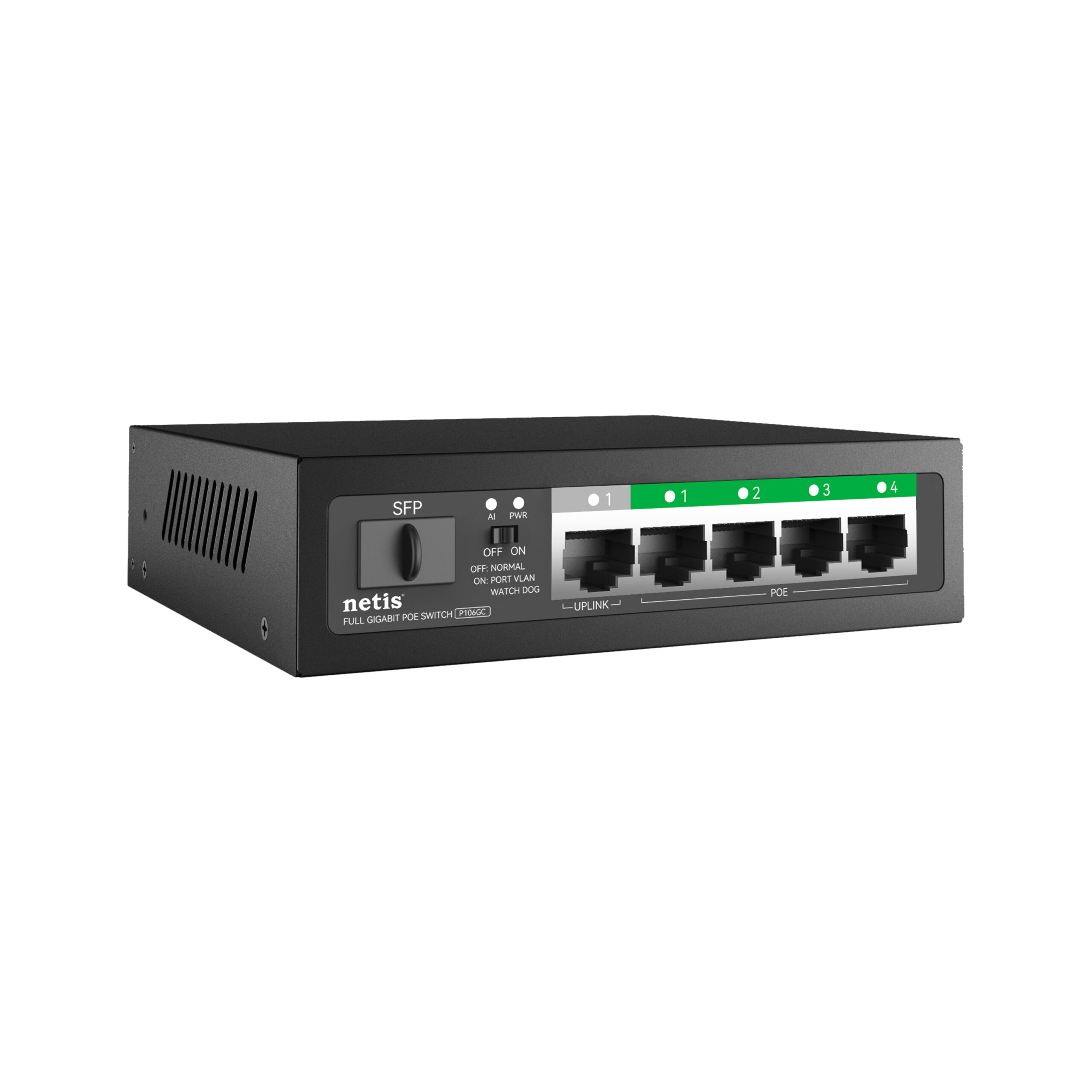

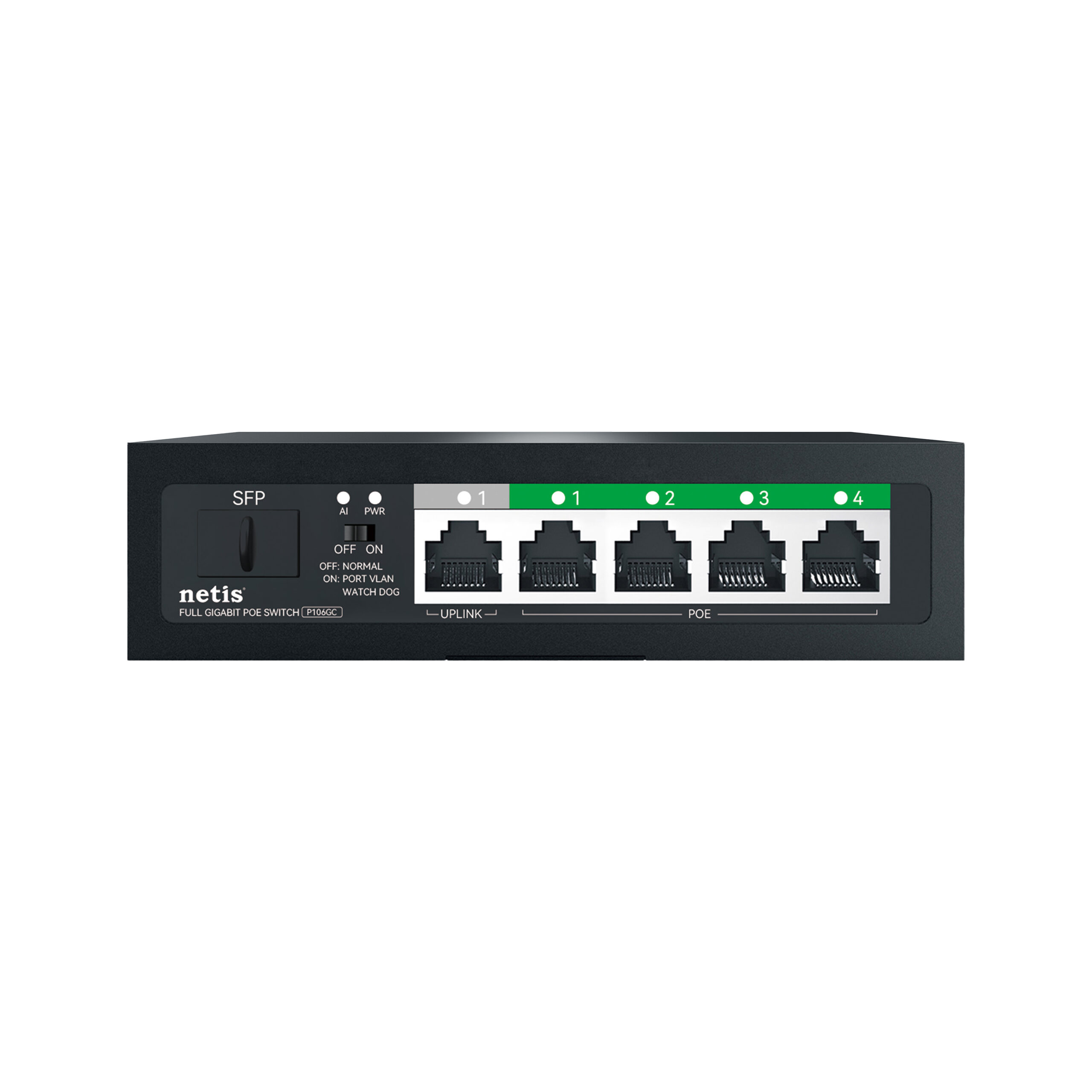

P106GC
Switch Gigabit 4 port PoE + 1 Uplinks + 1 SFP – chuyên dụng cho CCTV
- 4 PoE Port 10/100/1000Mbps + 2 Port RJ45 10/100/1000Mbps + 1 SFP
- PoE Port chuẩn IEEE 802.3 af/at
- Công suất tối đa: 30W / cổng
- Tổng công suất: 60W
- Tính năng: Mode/Port VLAN + Watch Dog Mode
- Bộ nhớ lưu trữ MAC: 2K
- Khả năng chuyển đổi: 12Gbps
- Truyền giữ liệu trên đường cáp 4 lõi, Khoảng cách MAX 100m
- Kích thước (mm): 125*115*34
Hotline: 0868 527 555
| Interface | 4 10/100/1000M POE Ports (Data /Power)
1 10/100/1000M uplink RJ45 Ports (Data) 1 SFP Slot(Data) |
| LED | PWR: Lighting – The device is powered on normally
AI: Lighting – The intelligent mode is enabled Port: Lighting – Port link is normal Blinking – Data in transit |
| Mode | Normal Mode
Port VLAN + Watch Dog Mode |
| VLAN | Yes |
| Switching Capacity | 12G |
| MAC Address Table Size | 2K |
| Jumbo Frame | 2048 byte |
| Power Input POE Standards | Single port maximum power 30W, whole switch maximum power 60W
Supporting over-current, over-voltage and short-circuit protection Supporting Soft Start of High Power PD Support sequential boot-up Power Supply:AC 100~240V, 50-60HZ |
| Data Transfer Rate | Ethernet : 10Mbps(Half-duplex and Full-duplex)
Fast Ethernet :100Mbps(Half-duplex and Full-duplex) Gigabit Ethernet :1000Mbps(Full-duplex) |
| Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Supports POE IEEE 802. 3af/at compliant Powered Device (PD) provide a standard SFP slot Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging Supports port isolation to effectively suppress network storms |
| Standards | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
| Cabling type | 1000Base-TX: Cat 5e or better UTP/STP(≤100m)
100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤100m) |
| Environment | Operation Temperature：0℃～40℃
Storage Temperature：-40℃～ 70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
| Dimensions | 125 * 115 * 34mm(L * W * H) |
