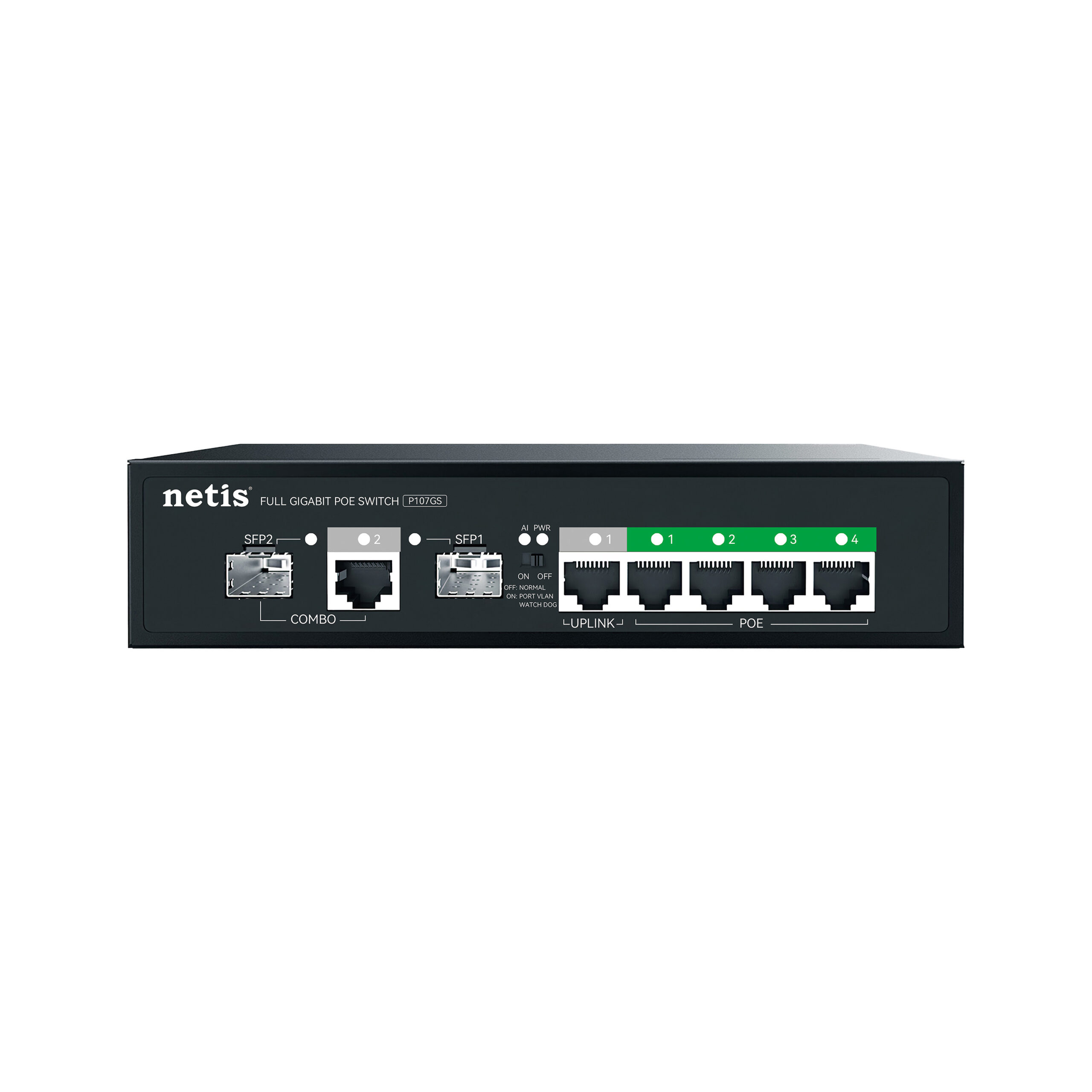

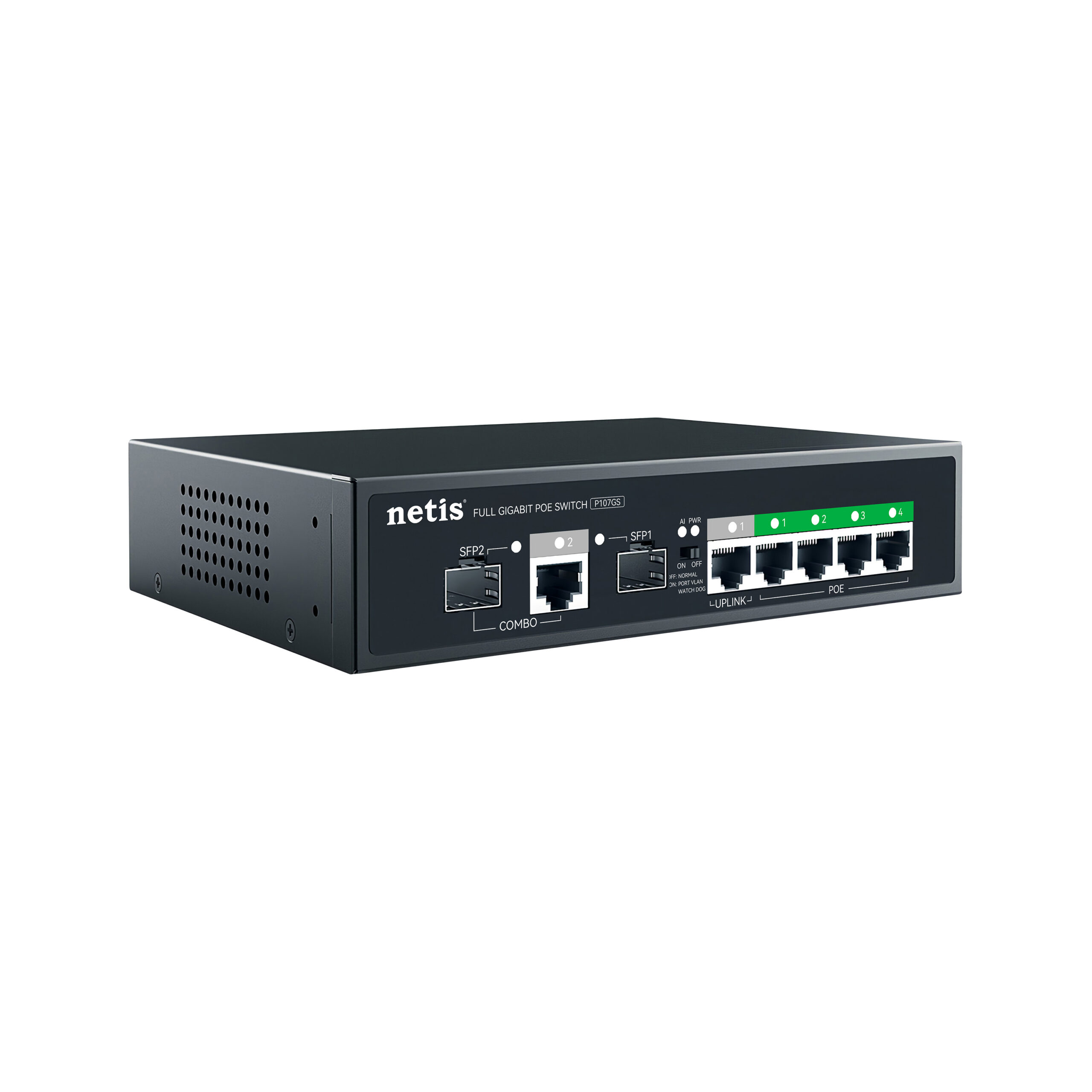

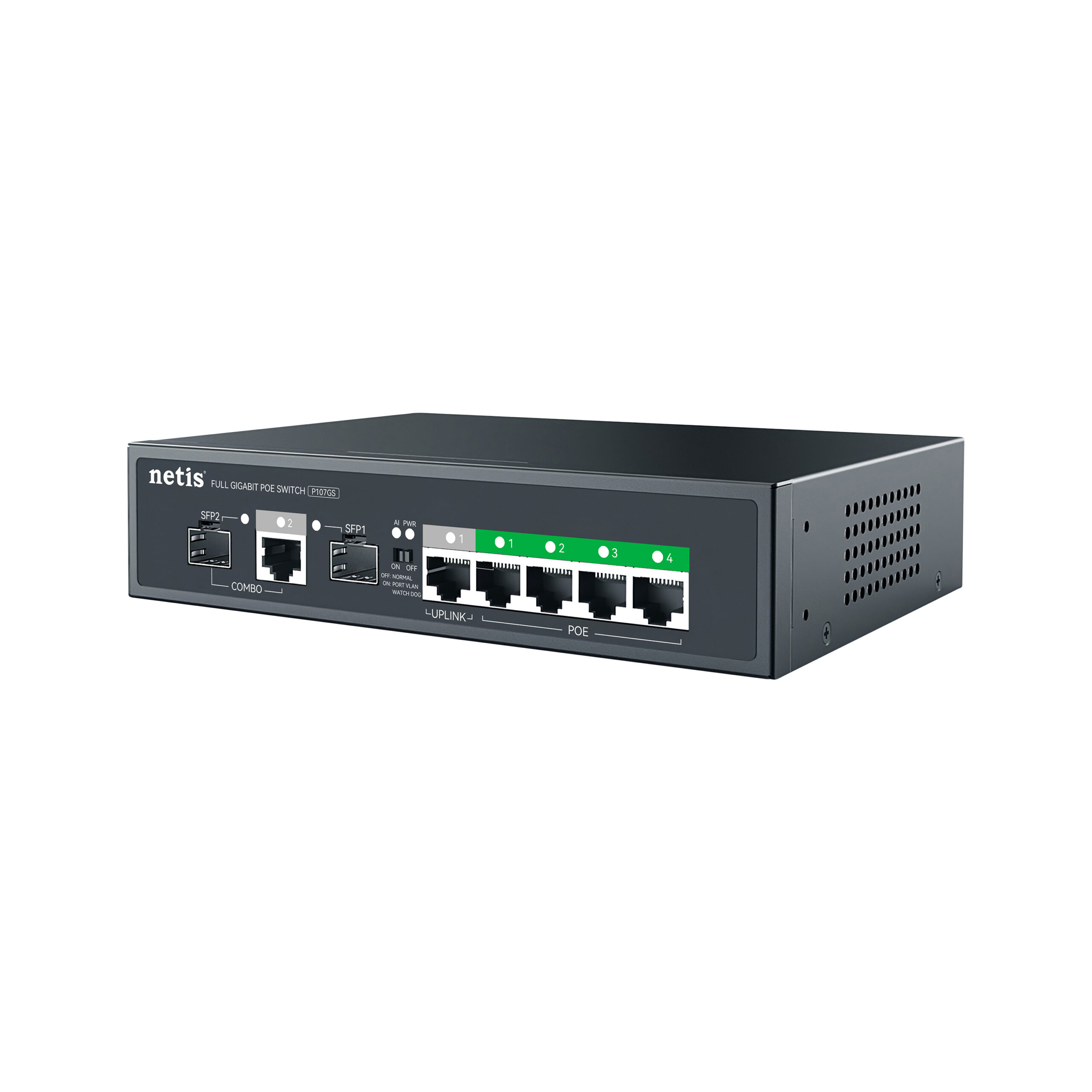

P107GS
Switch Gigabit 4 port PoE + 2 Uplinks + 2 SFP – chuyên dụng cho CCTV
- 4 PoE Port 10/100/1000Mbps + 2 Port RJ45 10/100/1000Mbps + 2 SFP
- PoE Port chuẩn IEEE 802.3 af/at
- Công suất tối đa: 30W / cổng
- Tổng công suất: 60W
- Tính năng: Mode/Port VLAN + Watch Dog Mode
- Bộ nhớ lưu trữ MAC: 2K
- Khả năng chuyển đổi: 16Gbps
- Truyền giữ liệu trên đường cáp 4 lõi, Khoảng cách MAX 250m
- Kích thước (mm): 190*140*43
Hotline: 0868 527 555
Hardware
| Interface | 4 10/100/1000Mbps POE RJ45 Ports(Data/Power)
2 10/100/1000Mbps RJ45 Port(Data) 2 Combo 100/1000Mbps SFP Slot(Data) |
| LED | PWR: Lighting – The device is powered on normally
AI: Lighting – The intelligent mode is enabled Port: Lighting – Port link is normal Blinking – Data in transit |
| Backplane bandwidth | 16G |
| MAC Address Table Size | 2K |
| Cabling type | 1000Base-T: 4 pairs of Cat5e or above UTP/STP(≤100m)
100Base-TX: 2 pairs of class 5 (Cat5) or more UTP/STP(≤100m) 10Base-TX: 2 pairs of class 5 (Cat6) or above UTP/STP(≤250m) |

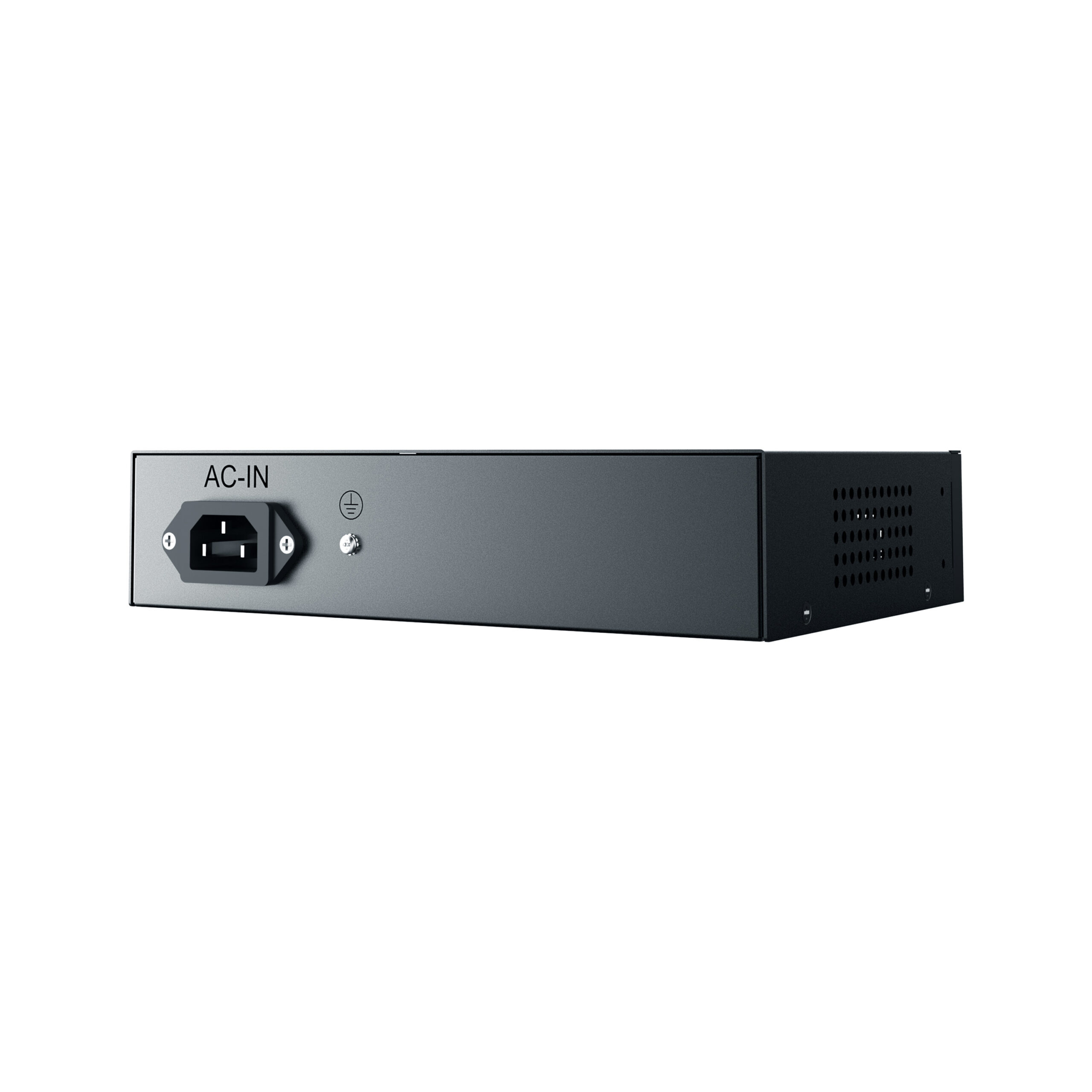

| Power supply | AC input 100-240V, standard 65W power supply |
Software
| Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Compatible with certified non-standard electrified equipment (PD) Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
| Standards | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
| Mode | Normal Mode
Port VLAN + Watch Dog Mode |
| Data Transfer Rate | 10Mbps(Half-duplex and Full-duplex)
100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
Others
| Environment | Operation Temperature：0℃～40℃
Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
| Dimensions | 190*140*43mm(L * W * H ) |
