Hardware

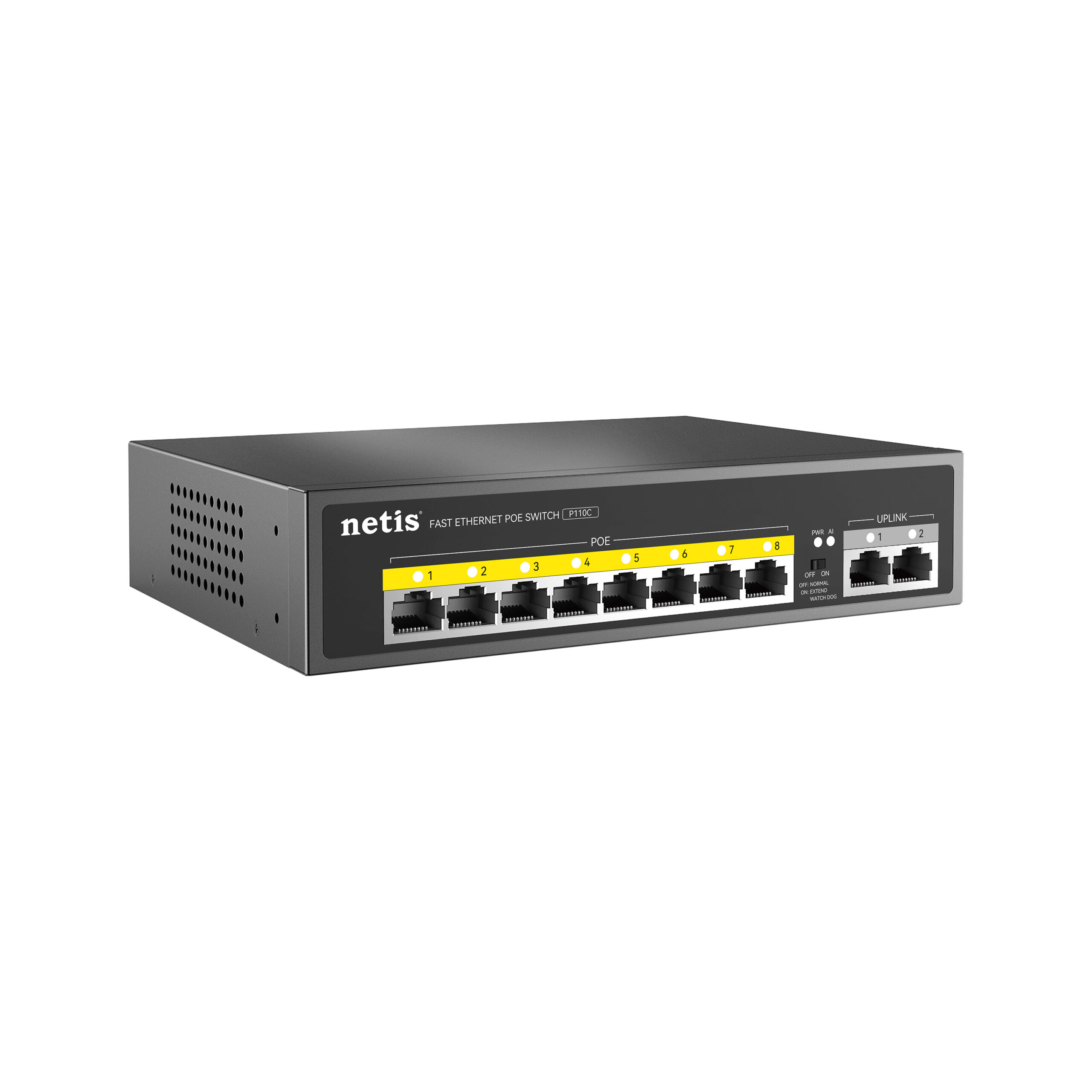

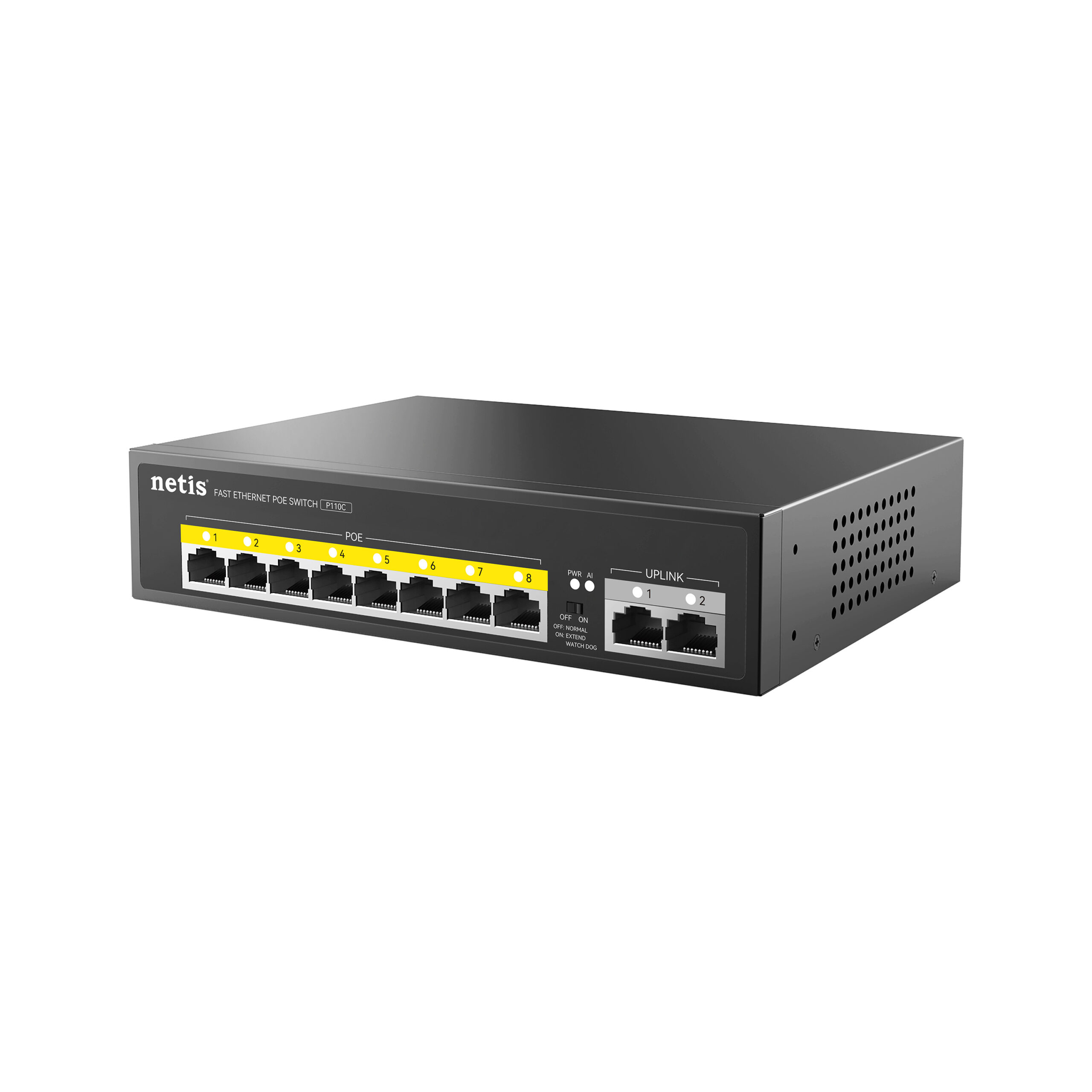

Interface | 8 10/100M POE ports (Data /Power)
2 10/100M RJ45 ports (Data) |

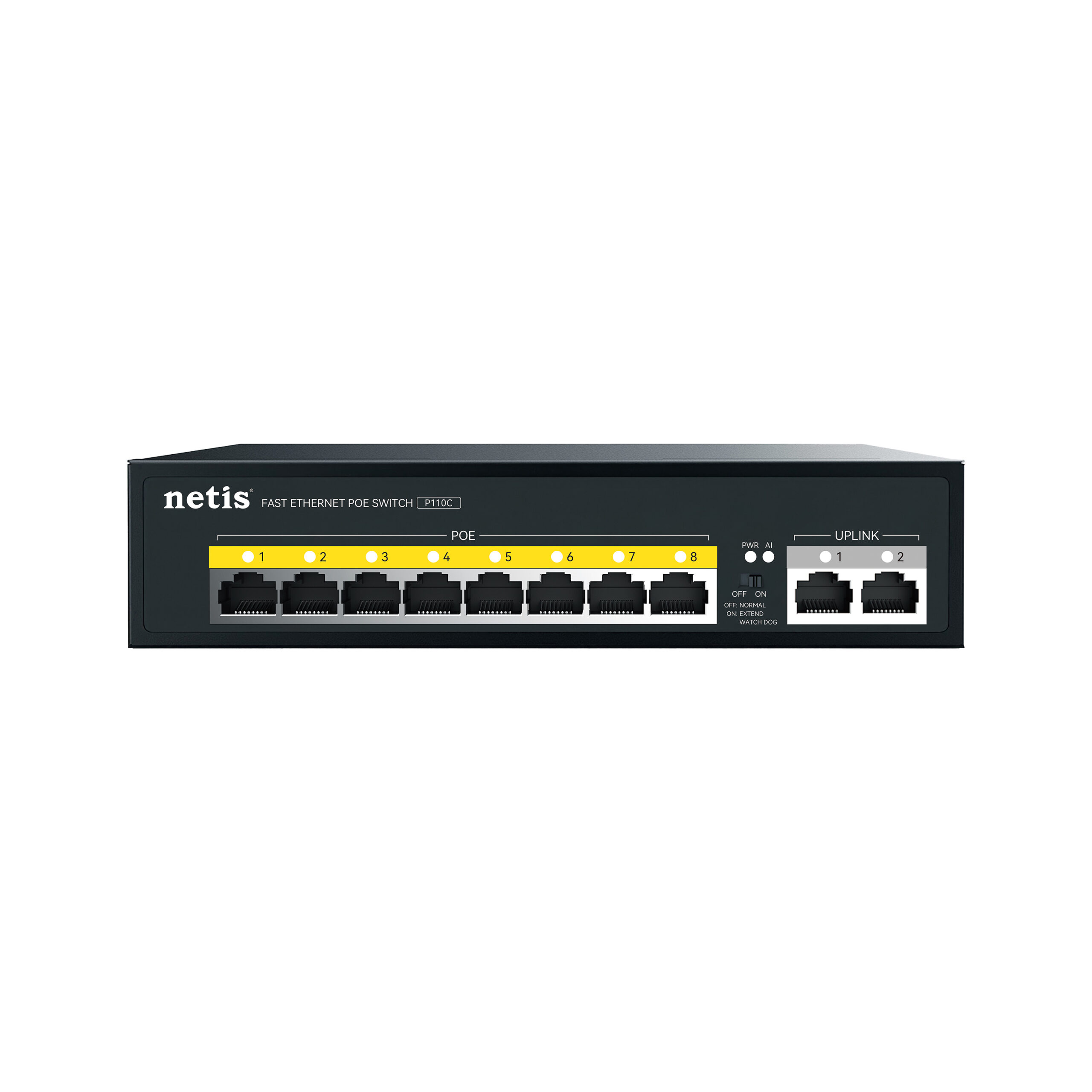

LED | PWR: Lighting – The device is powered on normally
AI: Lighting – The intelligent mode is enabled Port: Lighting – Port link is normal Blinking – Data in transit |
MAC Address Table Size | 2K |
Jumbo Frame | 2048 byte |
Store & Forwarding | Yes |
Mode | Normal Mode
Extend+Watch Dog Mode |
Cabling type
|
100Base-TX: Cat 5e or better UTP/STP(≤100m)
10Base-TX: Cat 5e or better UTP/STP(≤250m) |
Power Input POE Standards | Single port maximum power 30W
Whole switch maximum power 120W Supporting over-current, over-voltage and short-circuit protection Supporting Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 100~240V 50-60Hz |
Software
Data Transfer Rate | 10Mbps(Half-duplex and Full-duplex)
100Mbps(Half-duplex and Full-duplex) |
Basic function
|
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Supports POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
Standards
|
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
Switching Capacity | 2G |
Others
Environment | Operation Temperature:0℃~40℃
Storage Temperature:-40℃~70℃ Operation Humidity:10%~90% RH Non-condensing Storage Humidity:5%~90% RH Non-condensing |
Dimensions | 190*140*43mm(L * W * H ) |
