Hardware

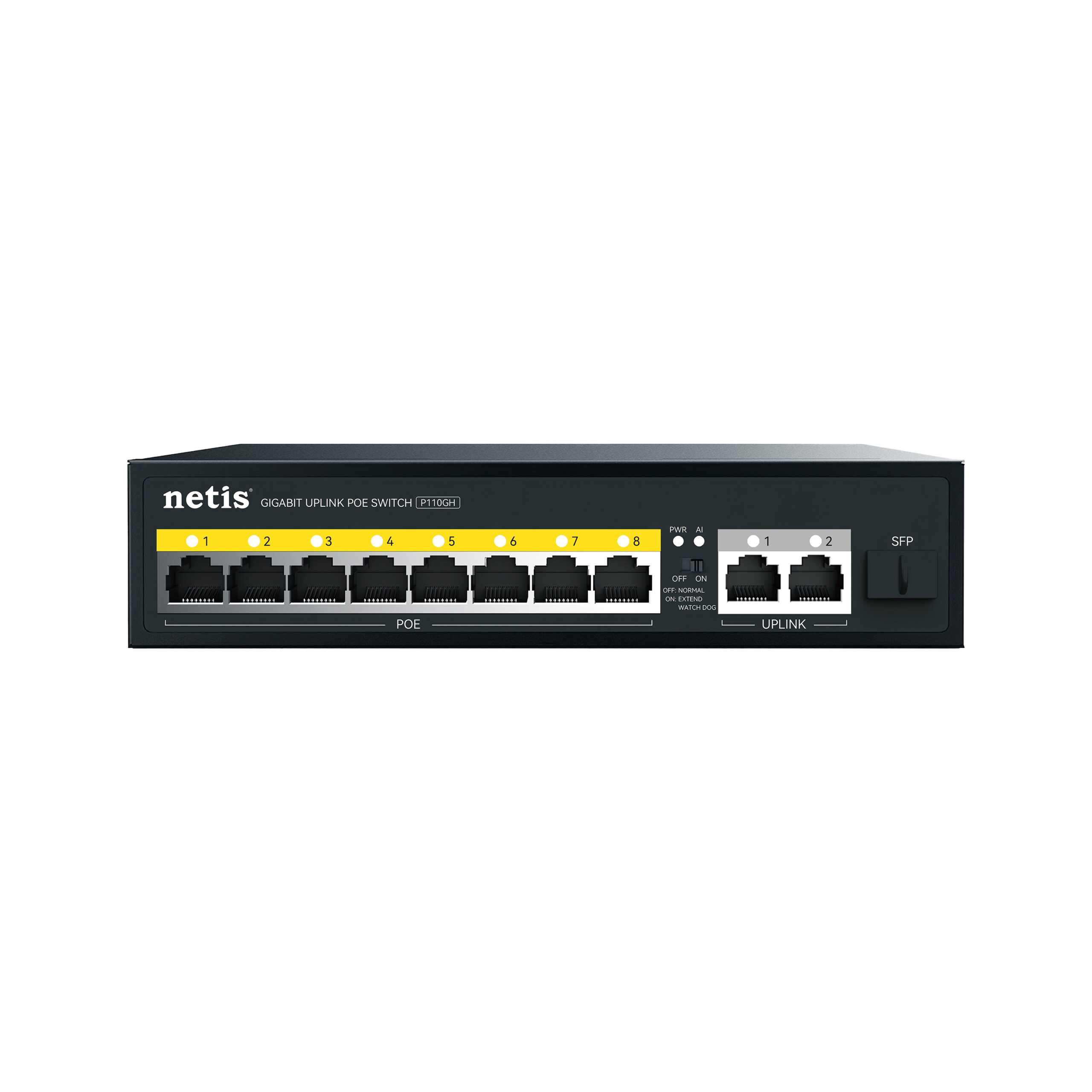

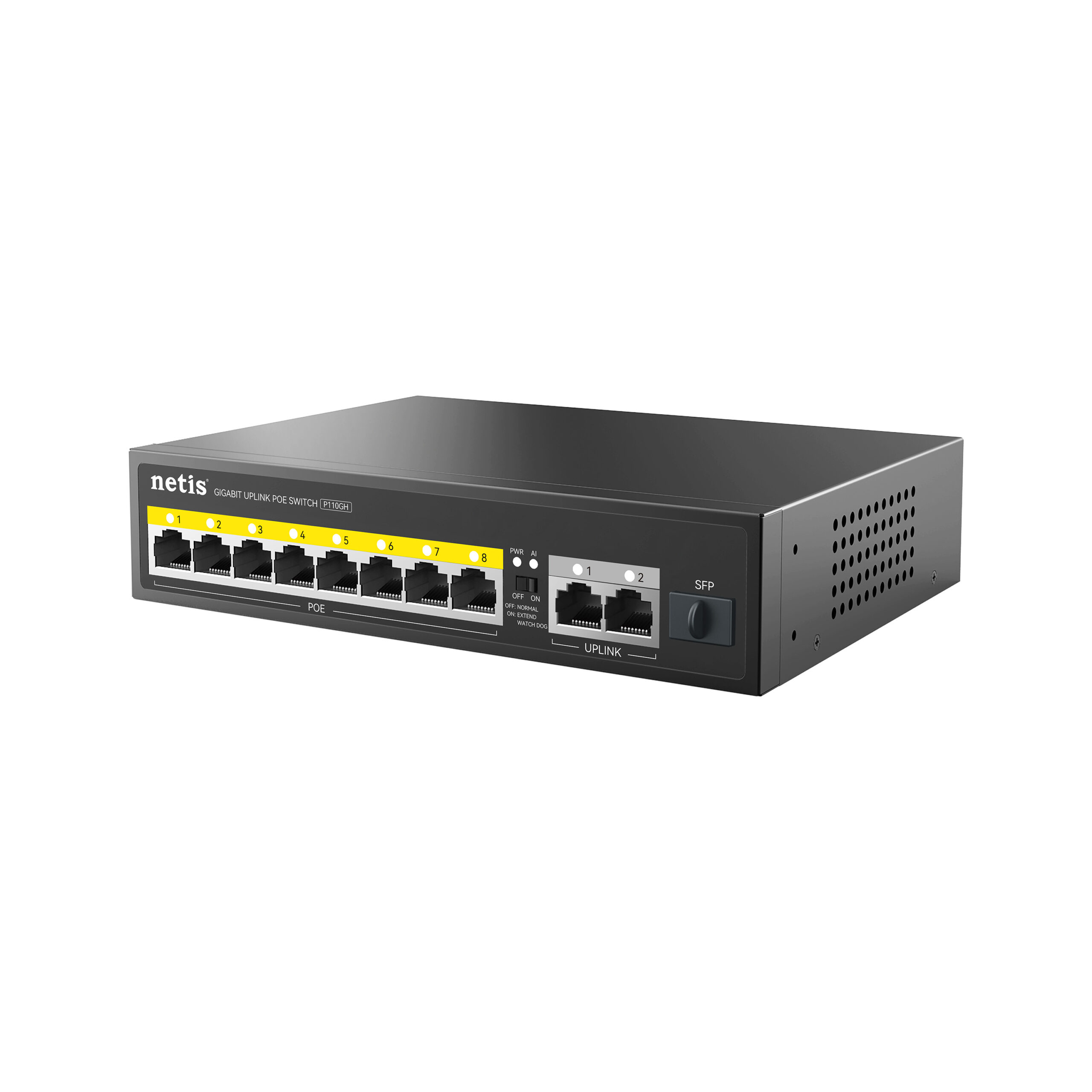

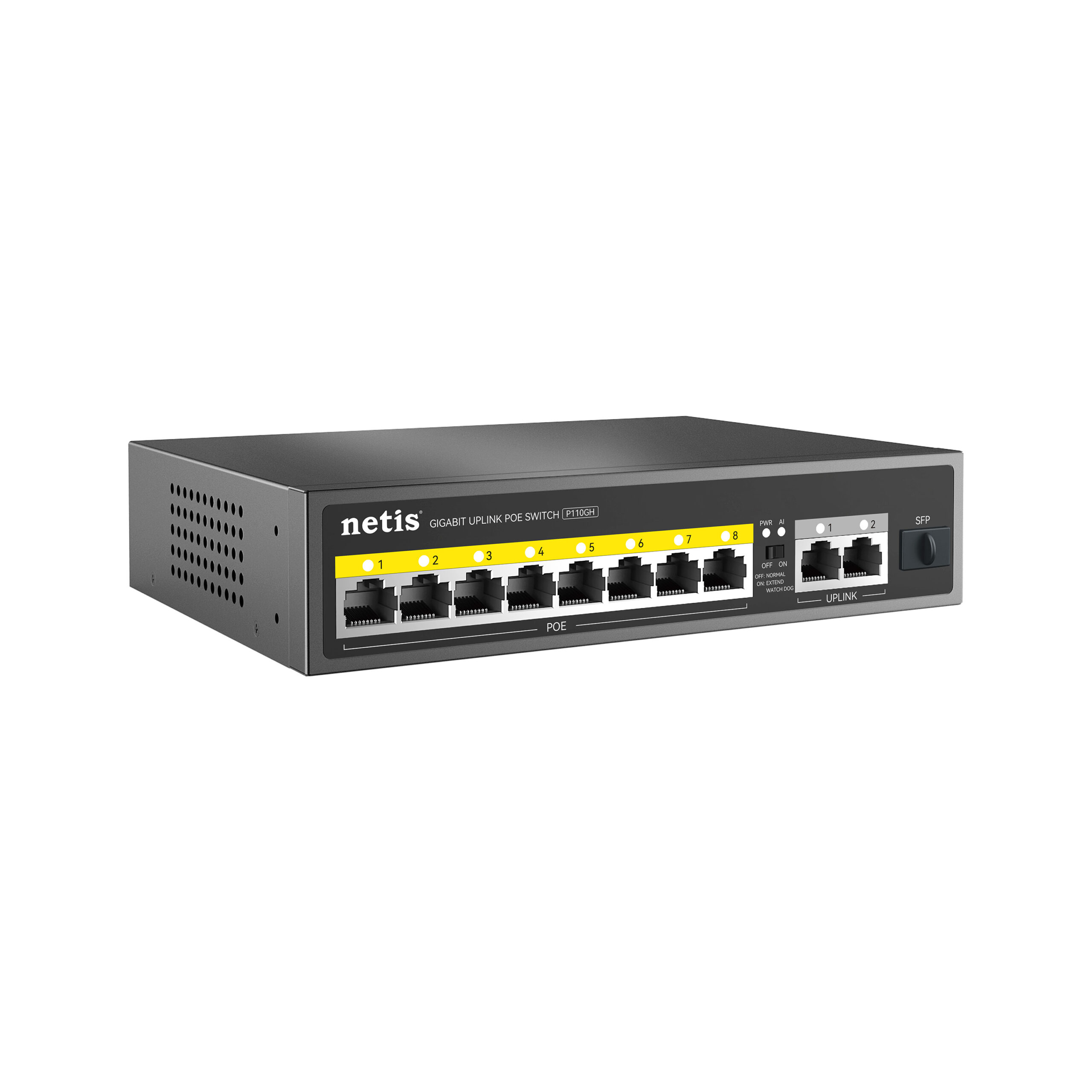

Interface | 8 10/100M POE ports (Data /Power)
2 10/100/1000M uplink RJ45 ports (Data) 1 1000M uplink SFP slot port (Data) |
LED | PWR: Lighting – The device is powered on normally
AI: Lighting – The intelligent mode is enabled Port: Lighting – Port link is normal Blinking – Data in transit |
Mode | Normal Mode
Extend+Watch Dog Mode |
Store & Forwarding | Yes |
MAC Address Table Size | 8K |
Jumbo Frame | 2048 byte |
Switching Capacity | 7.6G |
Power Input POE Standards | Single port maximum power 30W

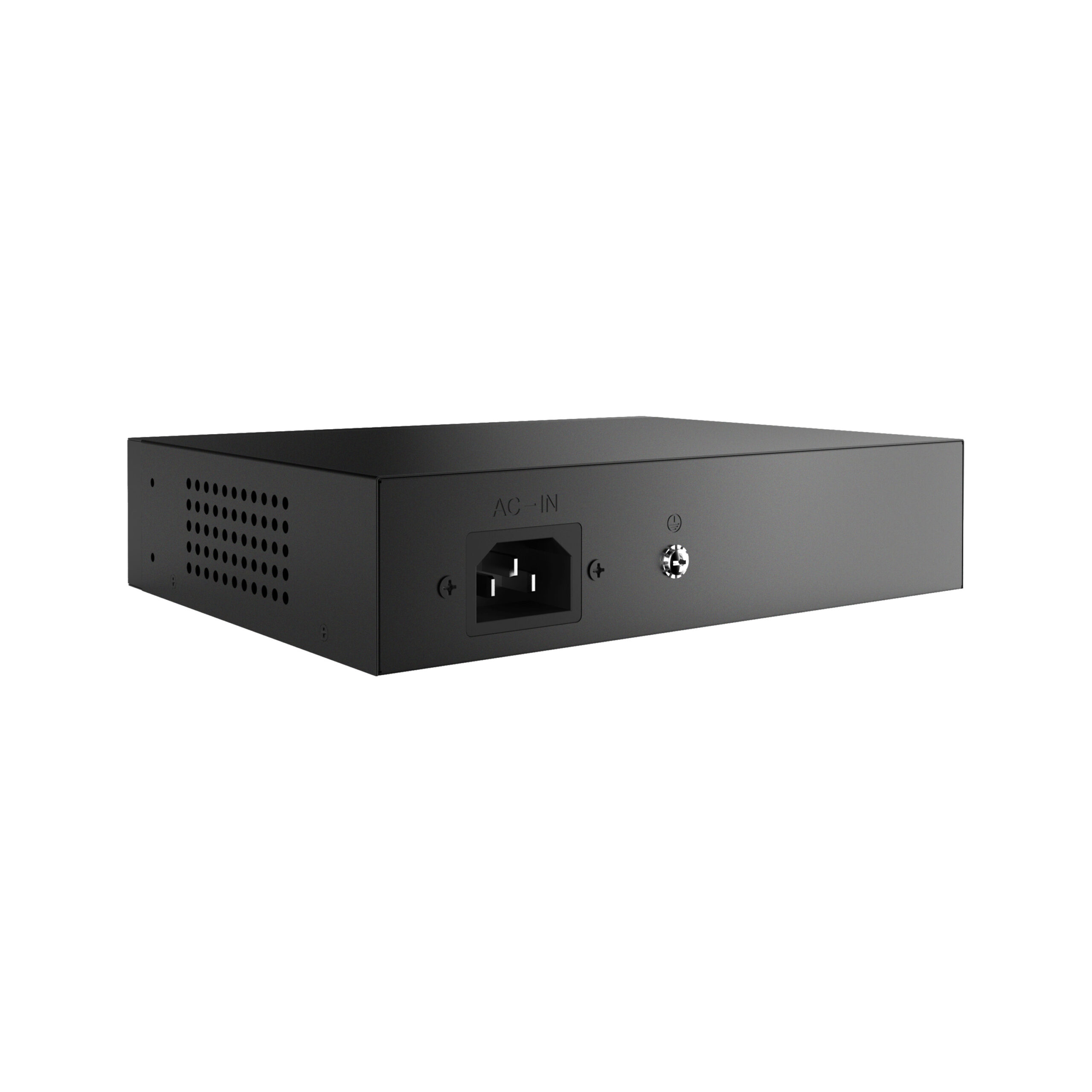

Whole switch maximum power 120W Support over-current, over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 100~240V 50-60HZ |
Software
Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging Support AI+extend, intelligent troubleshooting, ultra-long cable extension |
Cabling type | 1000BASE-T : Cat5e or better UTP(≤100m)
100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
Standards | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
Data Transfer Rate | 10Mbps(Half-duplex and Full-duplex)
100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
Others
Environment | Operation Temperature:0℃~40℃
Storage Temperature:-40℃~70℃ Operation Humidity:10%~90% RH Non-condensing Storage Humidity:5%~90% RH Non-condensing |
Dimensions | 190*140*43mm(L*W*H) |
