Hardware

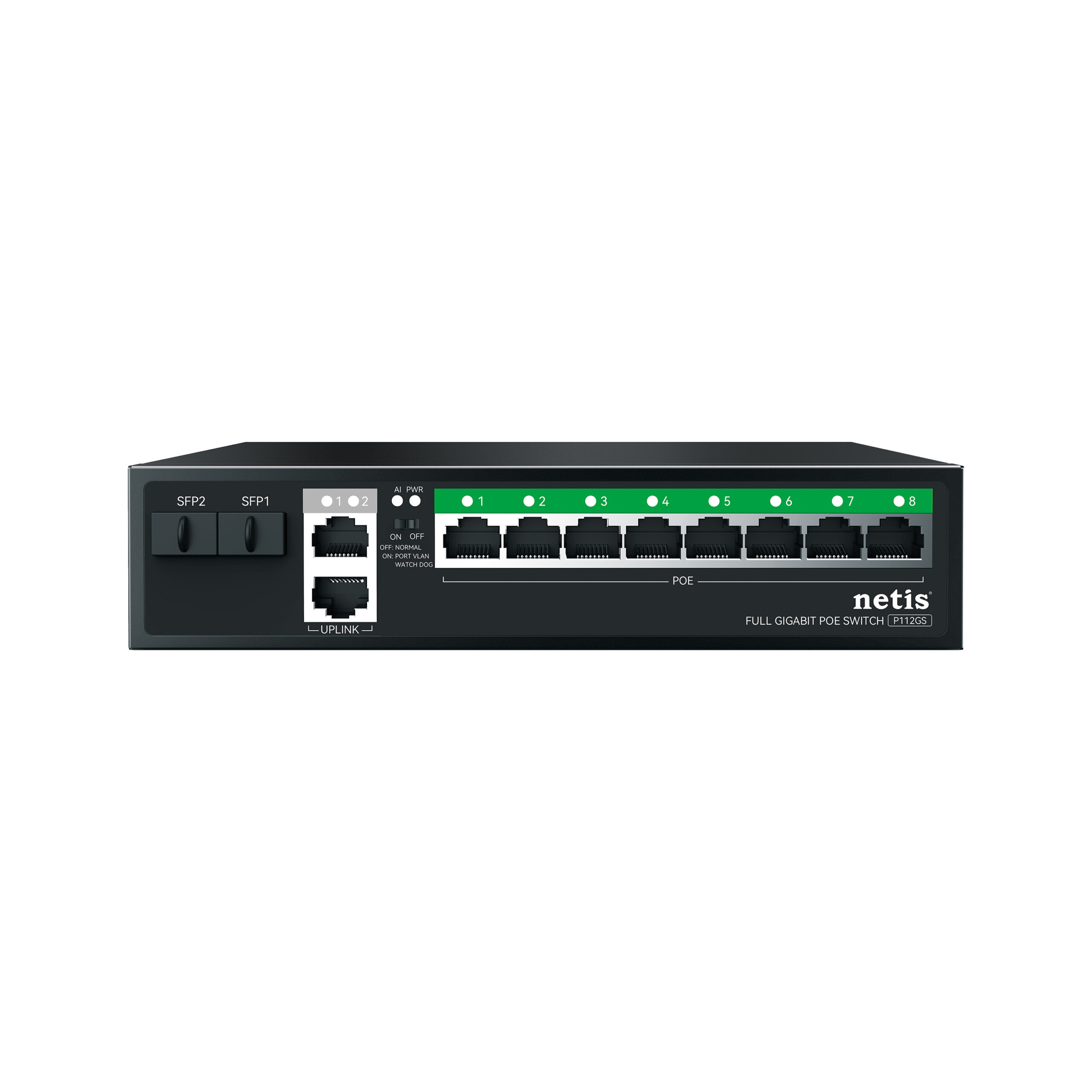

Interface | 8 10/100/1000Mbps POE Ports(Data /Power)
2 10/100/1000Mbps RJ45 Ports(Data) 2 SFP Slot(Data) |
LED | PWR: Lighting – The device is powered on normally
AI: Lighting – The intelligent mode is enabled Port: Lighting – Port link is normal Blinking – Data in transit |
Mode | Normal
Port VLAN + Watch Dog Mode |
Backplane bandwidth | 24G |
MAC Address Table Size | 2K |
Cabling type | 1000Base-T: 4 pairs of Cat5e or above UTP/STP(≤100m)
100Base-TX: 2 pairs of class 5 (Cat5) or more UTP/STP(≤100m) 10Base-TX: 2 pairs of class 5 (Cat6) or above UTP/STP(≤250m) |

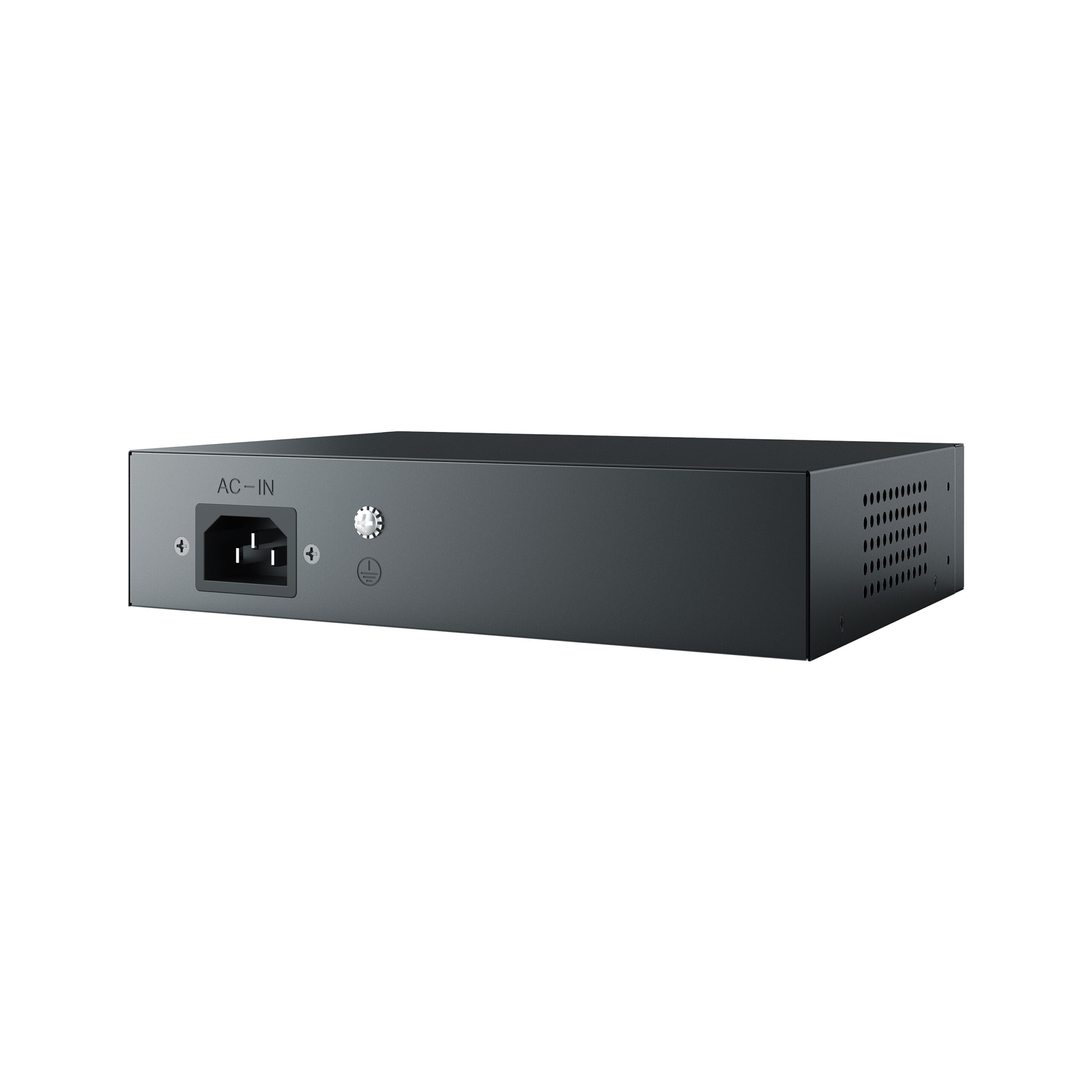

Power supply | AC input 100-240V, standard 120W power supply |
Software
Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Supports POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Compatible with certified non-standard electrified equipment (PD) Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging VLAN port isolation AI Monitor |
Standards | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
Data Transfer Rate | 10Mbps(Half-duplex and Full-duplex)
100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
Others
Environment | Operation Temperature:0℃~40℃
Storage Temperature:-40℃~70℃ Operation Humidity:10%~90% RH Non-condensing Storage Humidity:5%~90% RH Non-condensing |
Dimensions | 190*140*43mm(L * W * H ) |
