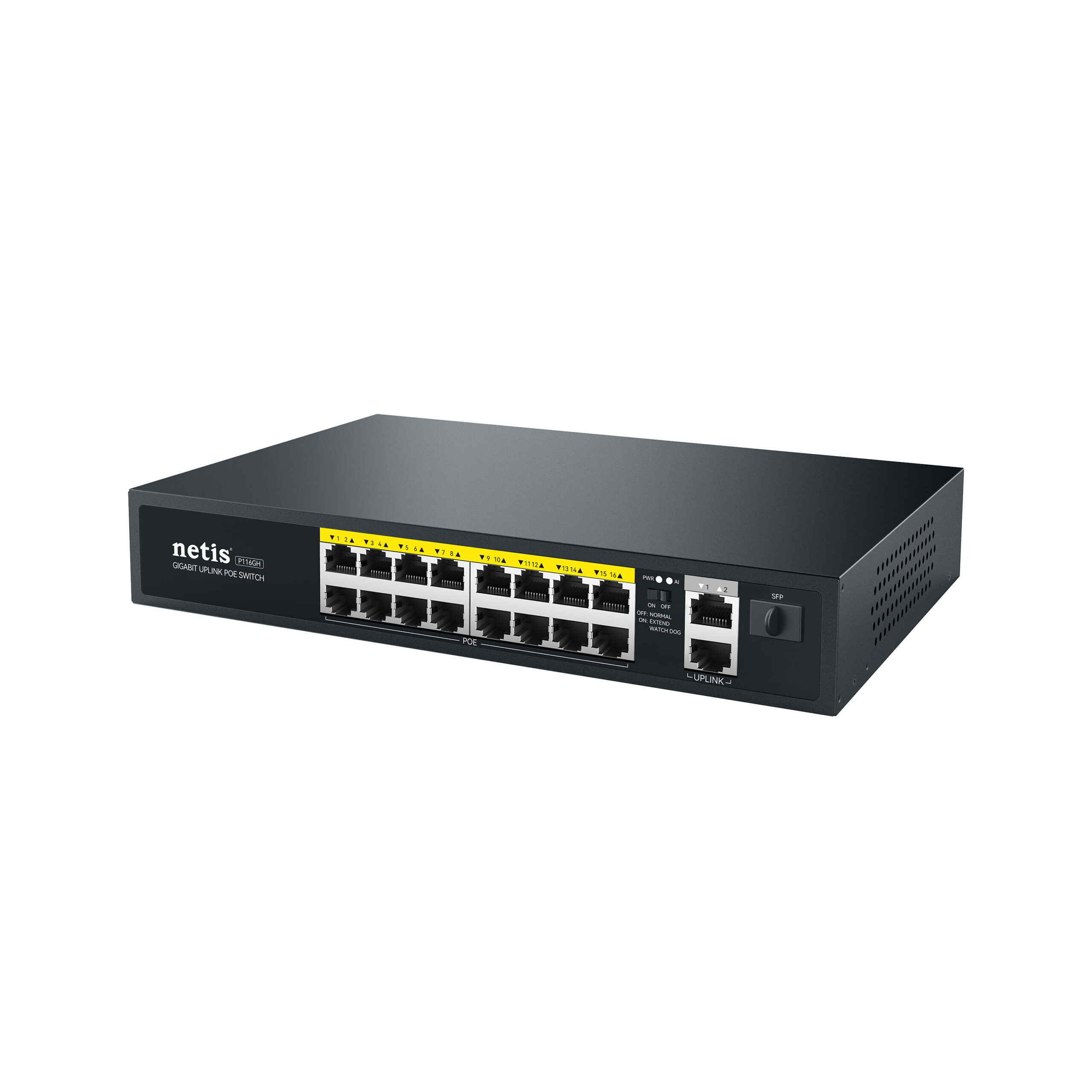

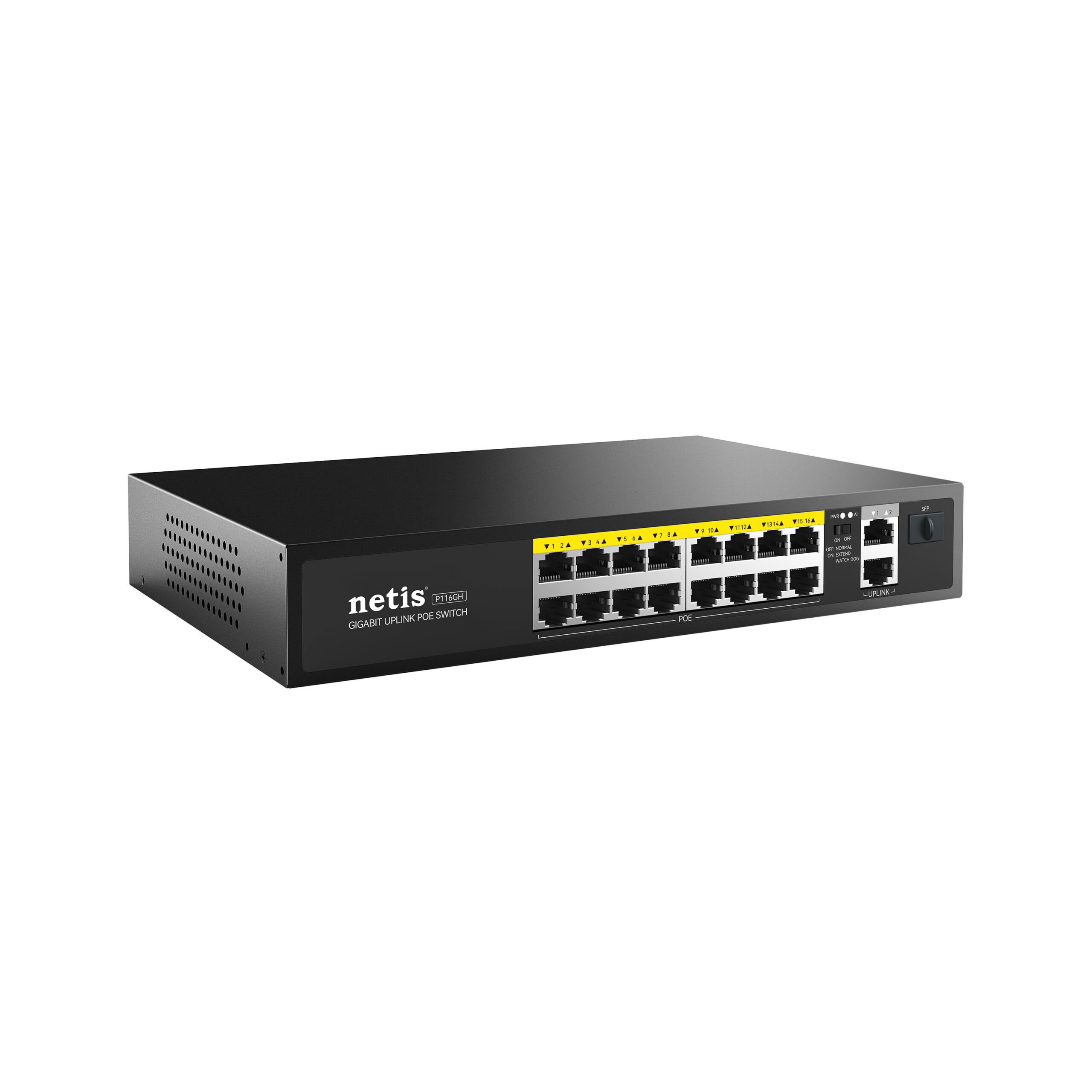

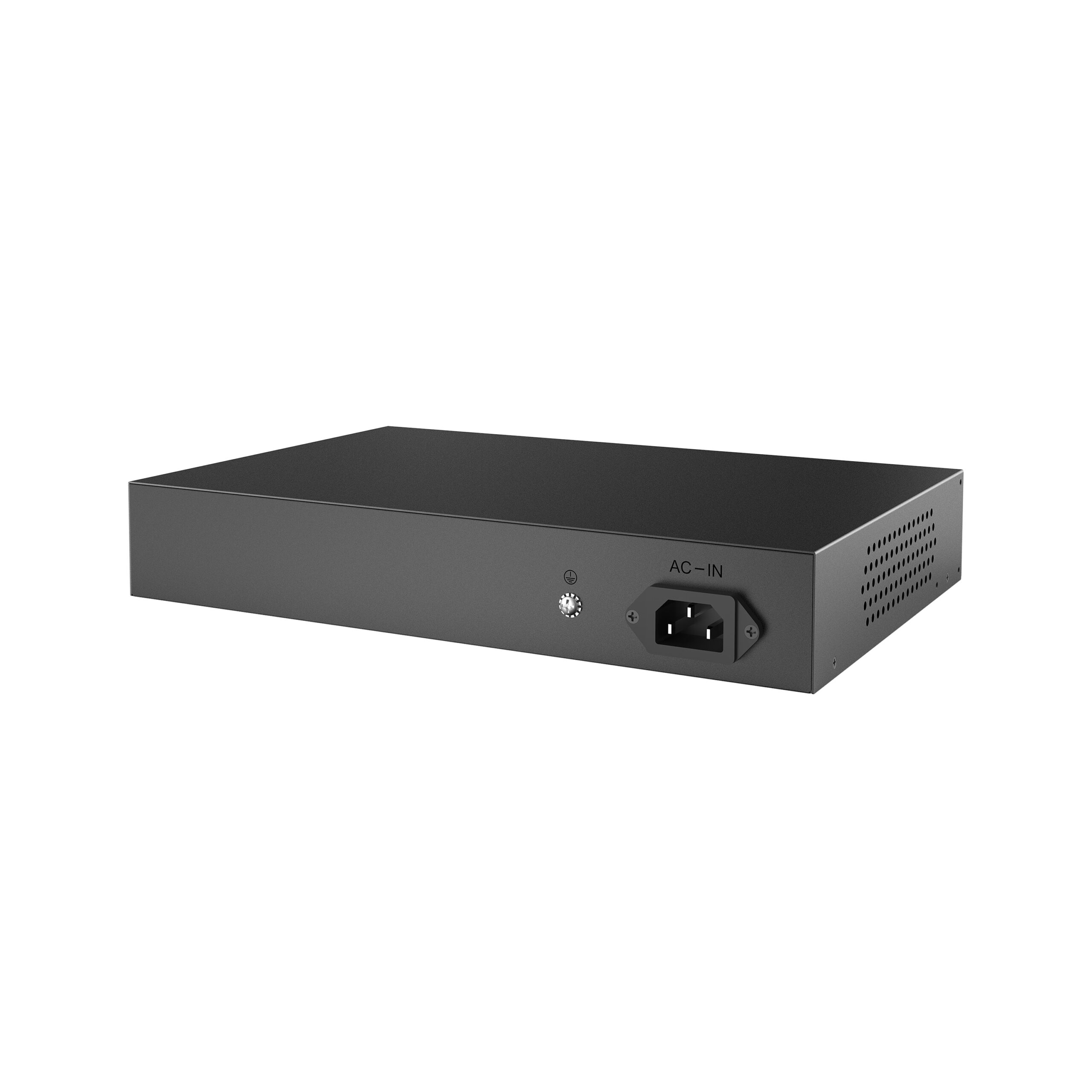

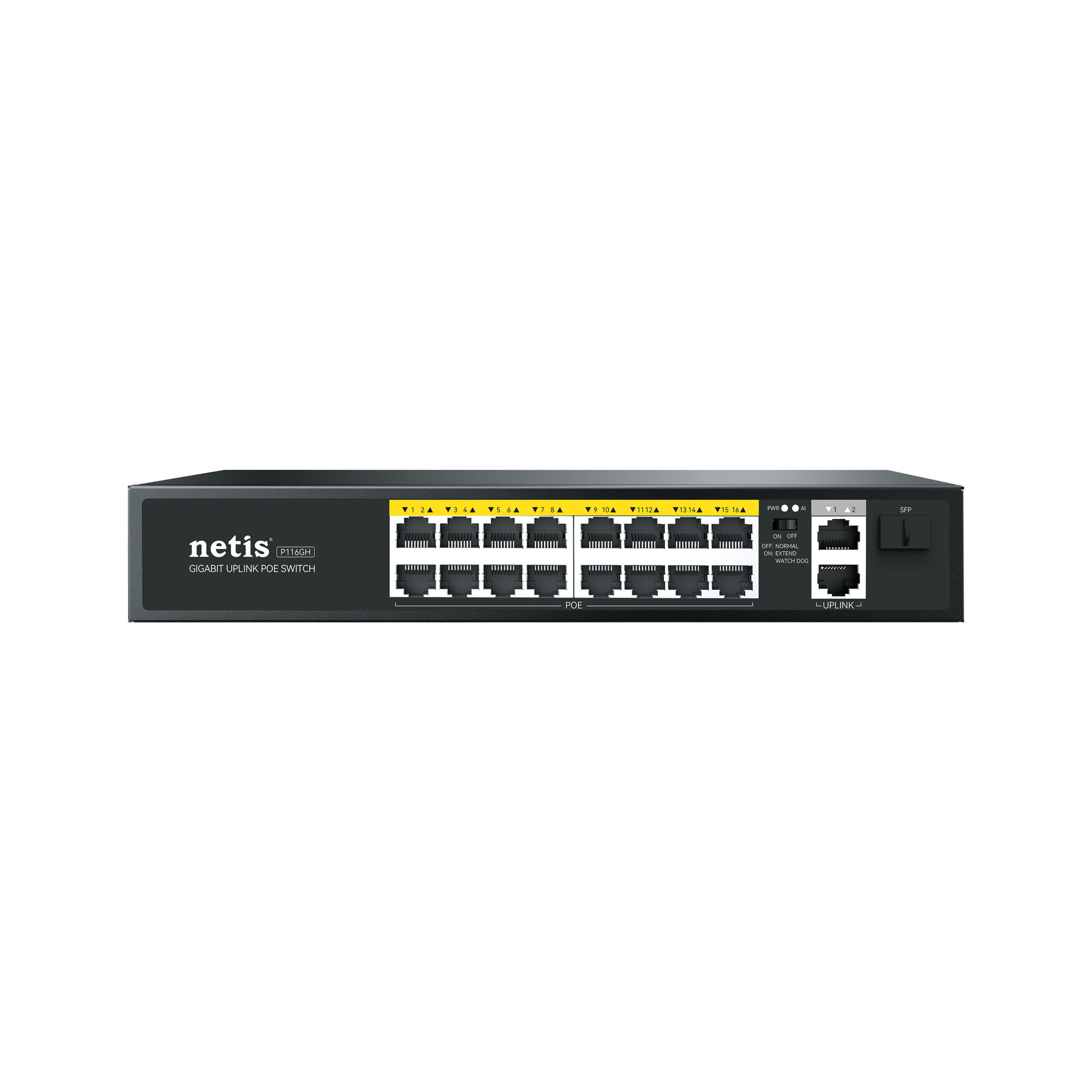

P116GH
Switch 16 port PoE + 2 Uplinks + 1 SFP chuyên dụng cho CCTV
- 16 Port PoE 10/100 Mbps + 2 Port RJ45 10/100/1000Mbps + 1 SFP
- PoE Port chuẩn IEEE 802.3 af/at
- Công suất tối đa: 30W / cổng
- Tổng công suất: 240W
- Bộ nhớ lưu trữ MAC: 2K
- Khả năng chuyển đổi: 9.2Gbps
- Tính năng: Normal Mode, Extend, Watch Dog Mode
- Truyền giữ liệu trên đường cáp 4 lõi, Khoảng cách MAX 250m
- Kích thước (mm): 270*180*45
Hotline: 0868 527 555
Hardware
| Interface | 16 10/100M POE Ports (Data /Power)
2 10/100/1000M RJ45 Ports (Data) 1 SFP Slot(Data) |
| Store & Forwarding | Yes |
| LED | PWR – Lighting:The product is powered on
Function indication – Lighting:The function switch is on and watch dog+ Extend Mode is enabled Port lights – Lighting:Port link is normal,Blinking: Data in transit |
| Mode | Normal Mode
Extend+Watch Dog Mode |
| Switching Capacity | 9.2G |
| MAC Address Table Size | 2K |
| Jumbo Frame | 2048 byte |
| Power Input POE Standards | Single port maximum power 30W,
Whole switch maximum power 240W Support over-current, over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 100~240V 50-60HZ |
Software
| Standards | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
| Mode | Normal switch mode
Watch dog + Extend mode |
| Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
Others
| Data Transfer Rate | 10Mbps(Half-duplex and Full-duplex)
100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
| Environment | Operation Temperature：0℃～40℃
Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
| Cabling type | 1000BASE-T : Cat5e or better UTP(≤100m)
100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
| Dimensions | 270*180*45mm(L * W* H ) |
