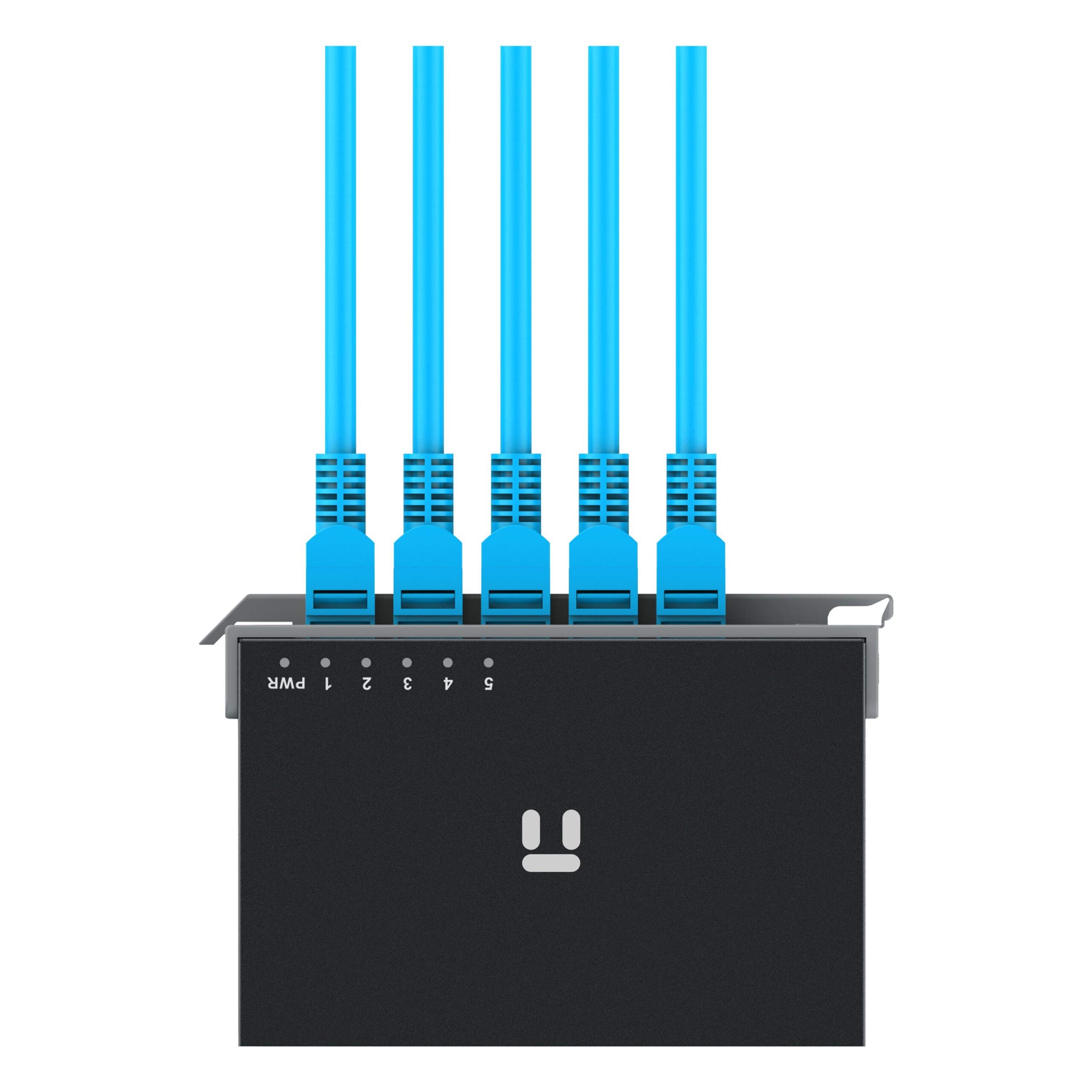

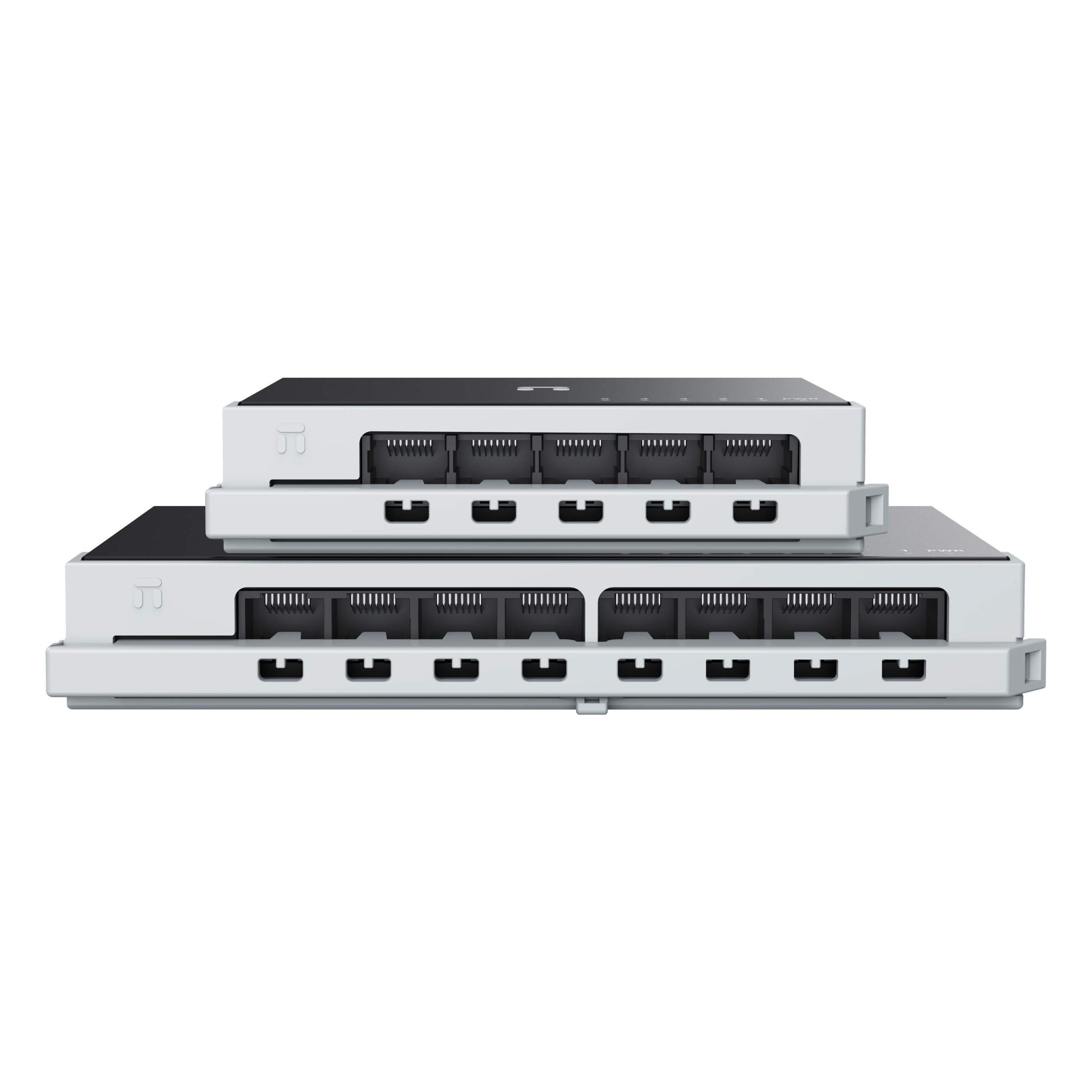

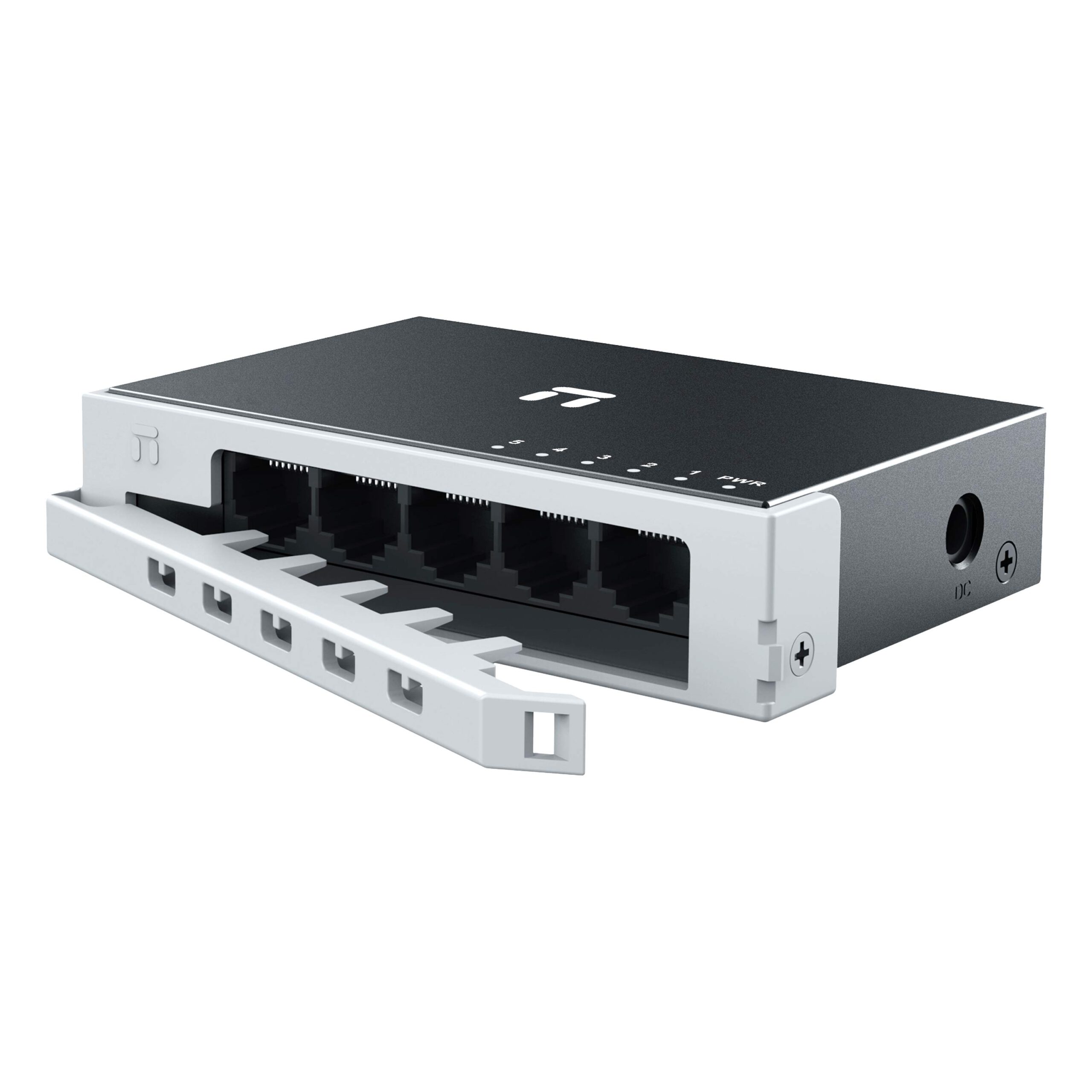

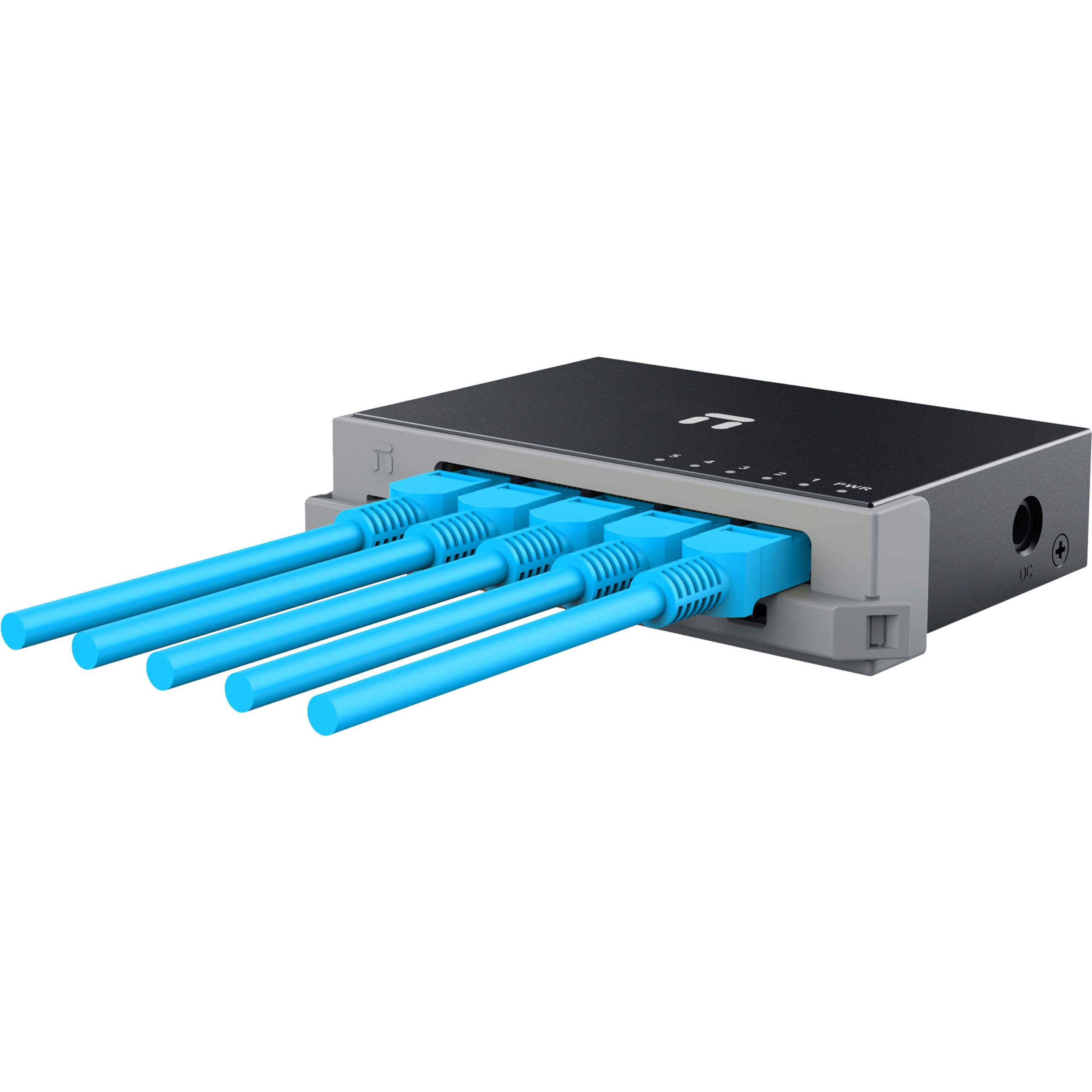

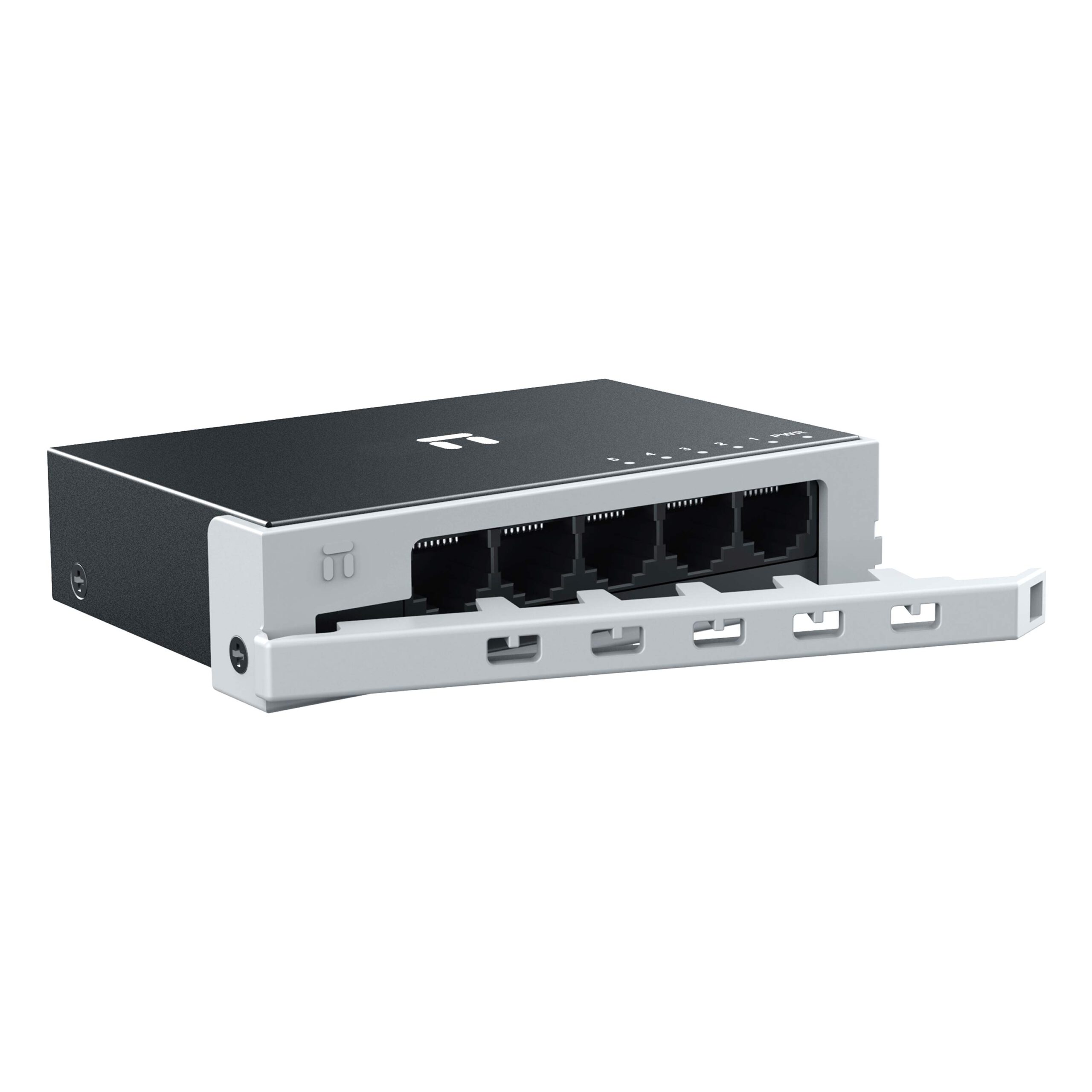

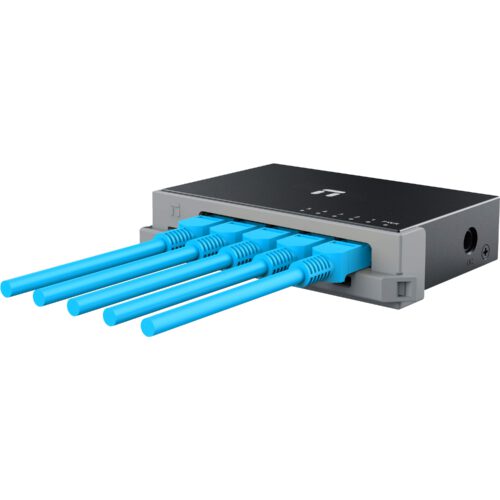

ST105D
5 Port Desktop Ethernet Switch
- Tiêu chuẩn: IEEE802.3,IEEE802.3u ,IEEE802.3x
- 5 * 10/100M RJ45 port
- Bộ nhớ lưu trữ MAC: 2K
- Nguồn: DC 5V/0.6A
- Kích thước (mm): 100*65*22.5
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Hardware
| Interface | 5 * 10/100M RJ45 adaptive port |
| Forwarding rate | 10/100Mbps |
| LED | PWR 1-5 RJ45 Port |
| Standard Protocol | IEEE802.3,IEEE802.3u ,IEEE802.3x |
| Operation mode | Half-duplex, full-duplex
Auto-negotiation modes MDI/MDI-X auto-adaptation |
| Power | DC 5V/800mA |
| Forwarding mode | Store-and-forward |
| Access mode | CSMA/CD |
Others
| Dimensions | 100*65*22.55 mm(L*W*H) |
| Environment | Operating Temperature : 0℃ ~ 40℃
Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20℃ ~ 70℃ Storage Humidity : 5% ~ 90% RH non condensing |
