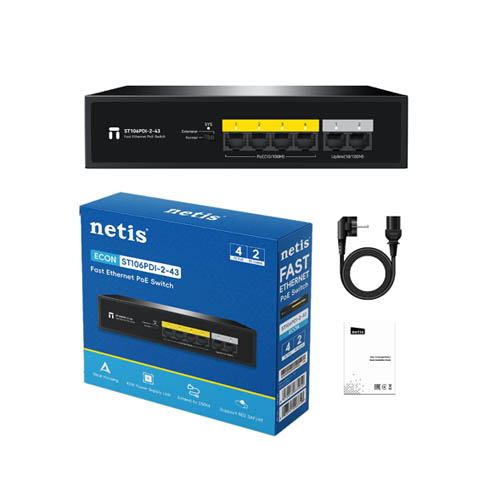

ST106PDI-2-43
Switch 4 port PoE + 2 Uplinks – chuyên dụng cho CCTV
– 4 PoE Port 10/100 Mbps + 2 Port RJ45 10/100 Mbps
– PoE Port chuẩn IEEE 802.3 af/at
– Công suất tối đa: 30W / cổng
– Công suất: 43W
– Tính năng: Normal Mode, Extend, Watch Dog Mode
– Bộ nhớ lưu trữ MAC: 2K
– Khả năng chuyển đổi: 1.2Gbps
– Chống sét: 6KV
– Truyền giữ liệu trên đường cáp 4 lõi, Khoảng cách MAX 250m
Hotline: 0868 527 555
Specification
LED Indicators
| Power Indicator | Lights up when the device is powered on. |
| Function Indicator | Lights up when the extended transmission function is enabled. |
Hardware
| Switch Ports | Normal mode/Cable Extension mode |
| Ports | 4x100Mbps POE ports + 2x100Mbps uplink ports |
| Backplane Bandwidth | 1.2Gbps |
| MAC Address Table | 2K |
| Input Power | 100-240V~ 50/60Hz |
| Power Supply | 43W |
| Maximum POE Output Power | 38W |
| Network Media & Transmission Distance | 100Base-TX: 2 pairs of Category 5 (Cat5) or higher UTP/STP cables (≤100m)
10Base-TX: 2 pairs of Category 6 (Cat6) or higher UTP/STP cables (≤250m) |
Software
| Basic Functions | Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards
Compatible with IEEE 802.3af/at compliant powered devices (PD) Compatible with certified non-standard powered devices (PD) Supports store-and-forward switching Supports automatic MAC address learning and aging Extended cable transmission,supports long-distance monitoring power supply Supports IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control |
| Ethernet Protocols and Standards | IEEE 802.3 Ethernet Media Access Control (MAC) protocol
IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (POE) IEEE 802.3at High Power over Ethernet (POE) IEEE 802.3x Flow Control |
| Data Transfer Rates | 10/100Mbps support for both full-duplex and half-duplex modes |
Environmental Requirements
| Temperature | Operating Temperature:0℃ ~ 40℃
Storage Temperature:-40℃ ~ 70℃ |
| Humidity | Operating Humidity:10% ~ 90% RH(non-condensing)
Storage Humidity:5% ~ 90% RH(non-condensing) |
| Altitude | Operating: Max 6500 feet (2000 meters)
Storage: Max 6500 feet (2000 meters) |
Lightning Surge Protection
| Differential Mode | 6KV |
| Common Mode | 6KV |
Physical Dimensions
| Dimensions
(W x D x H) |
190mmx140mmx43mm |
Packaging and Transportation
| Protective Packing | EPE protection |
Others
| Stacking Limit | Maximum of 4 layers when fully packaged |
| Humidity | 5%～90% RH(non-condensing) |
| Storage Temperature | -40℃ ~ 70℃,with the most suitable storage condition being room temperature considering humidity |
| Storage Precautions | Store in a clean,ventilated environment free from corrosive gases,flammable,explosive,and other hazardous chemicals.Keep away from heat sources and sources of strong mechanical vibration |
| Storage Period | Under the above conditions,the product can be stored for one year.It is recommended to re-inspect and test the product after two years before use |
