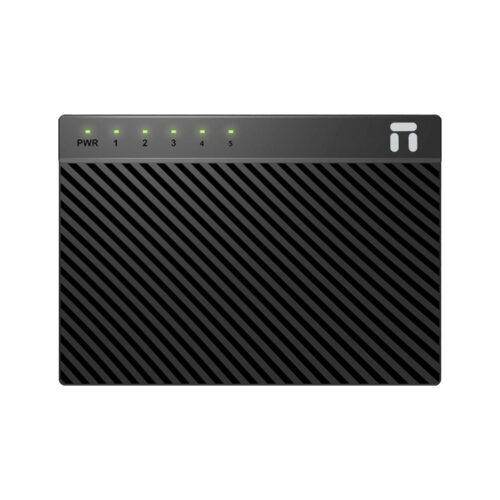

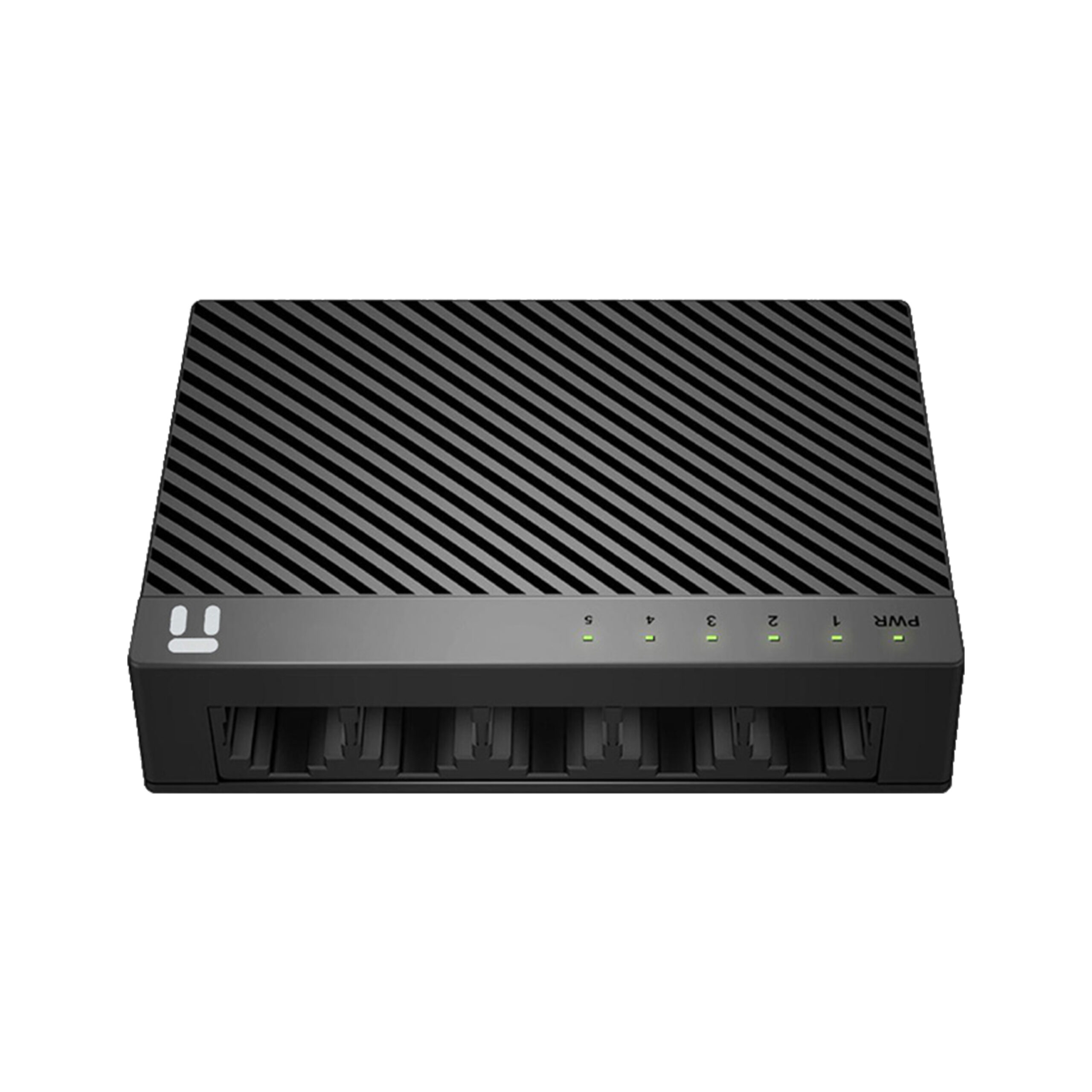

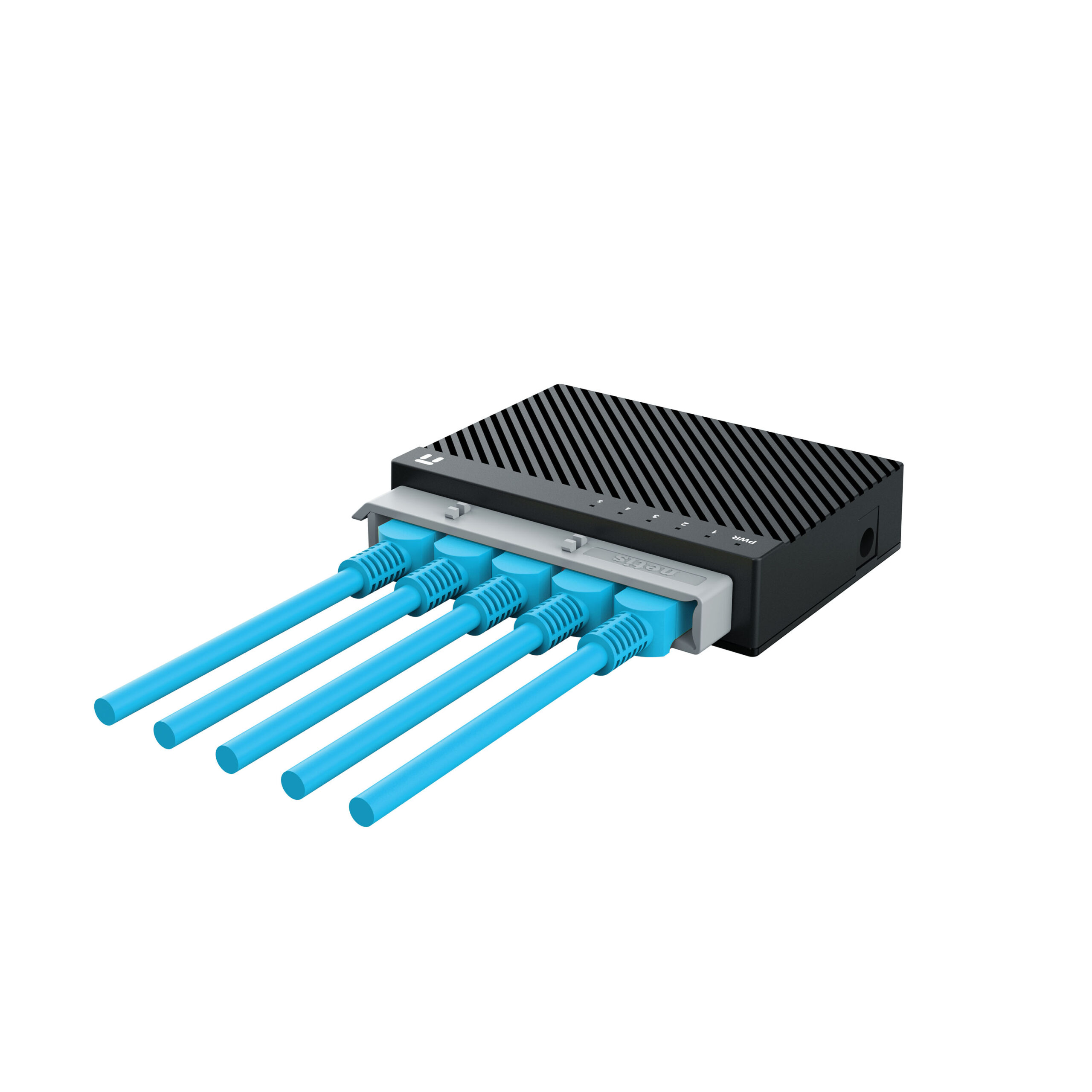

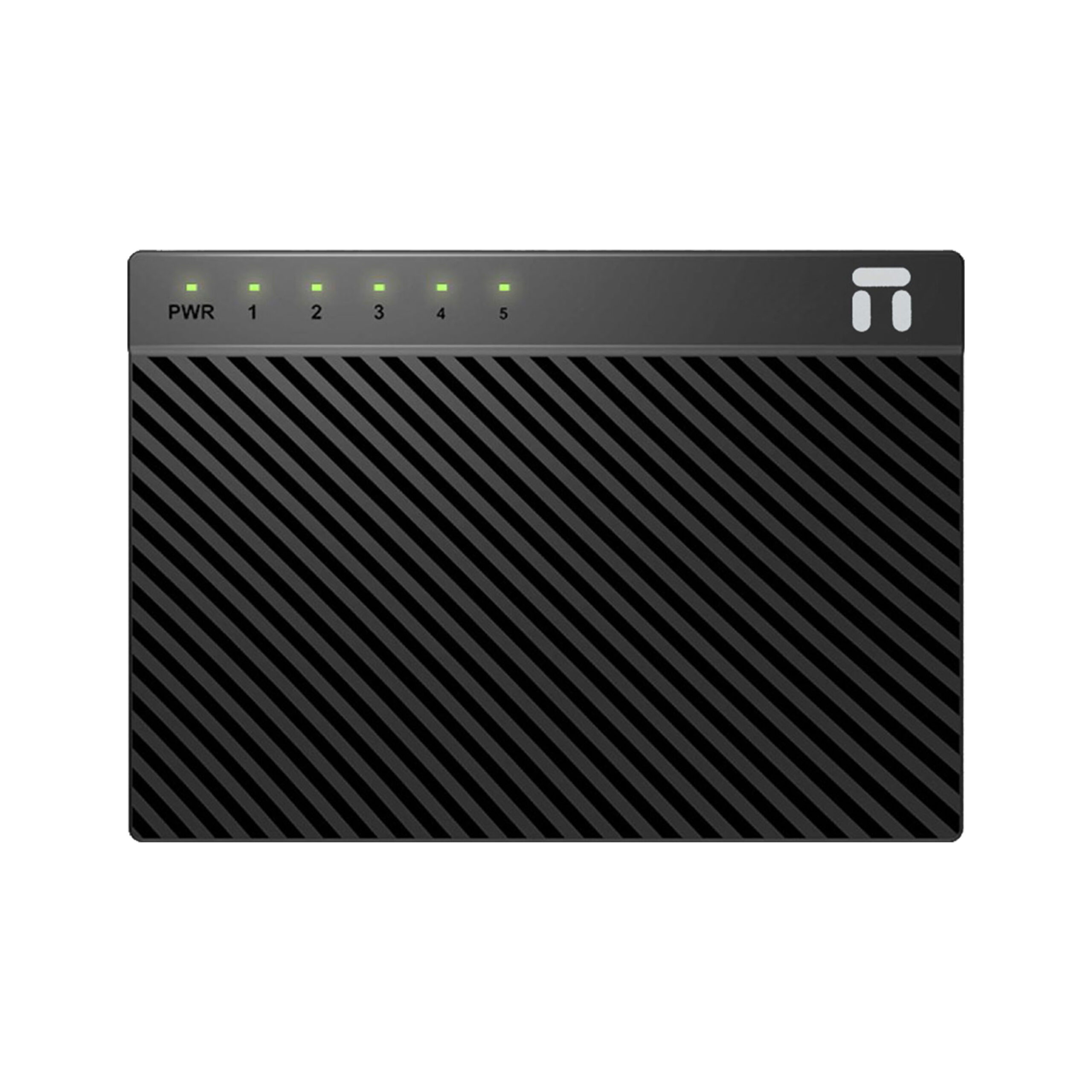

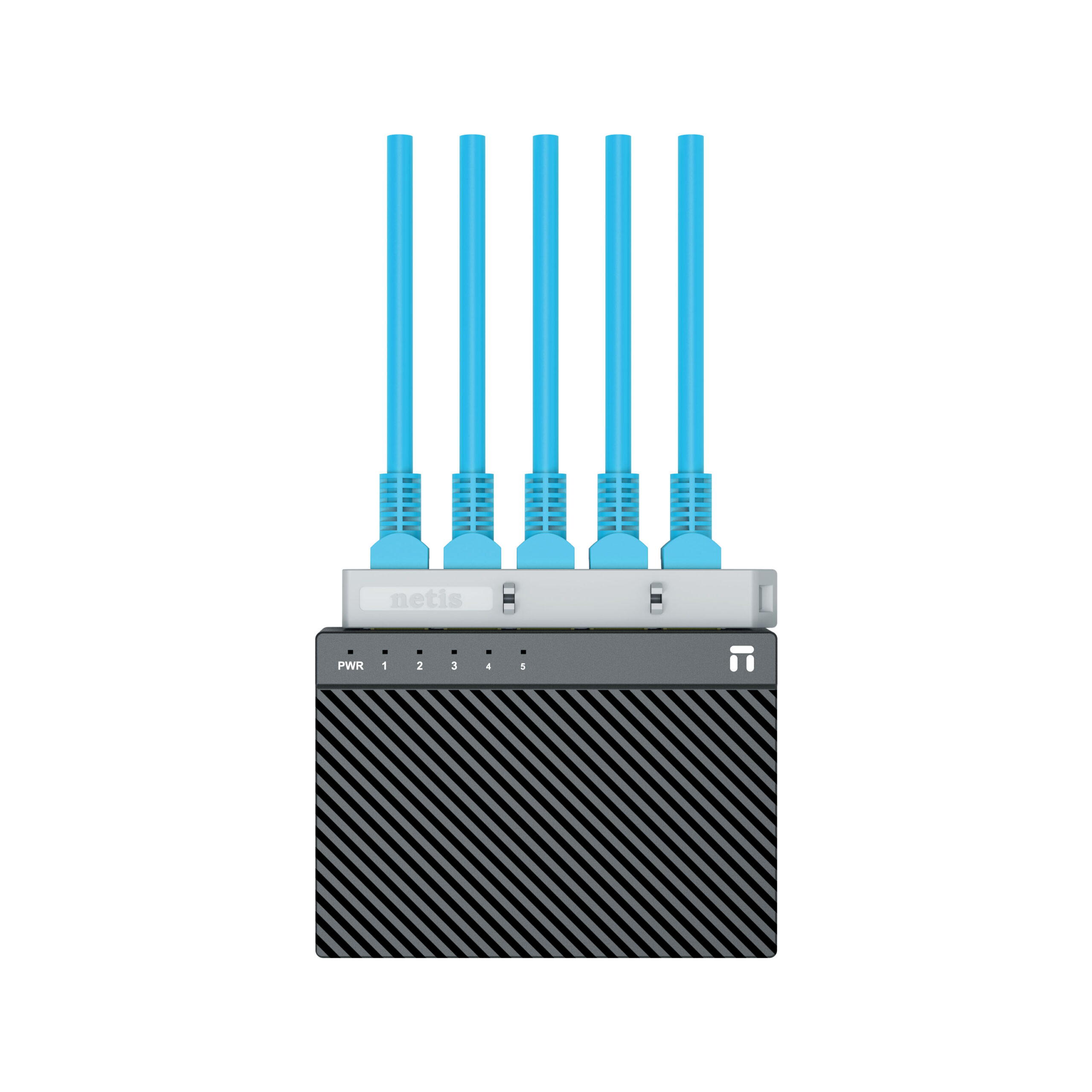

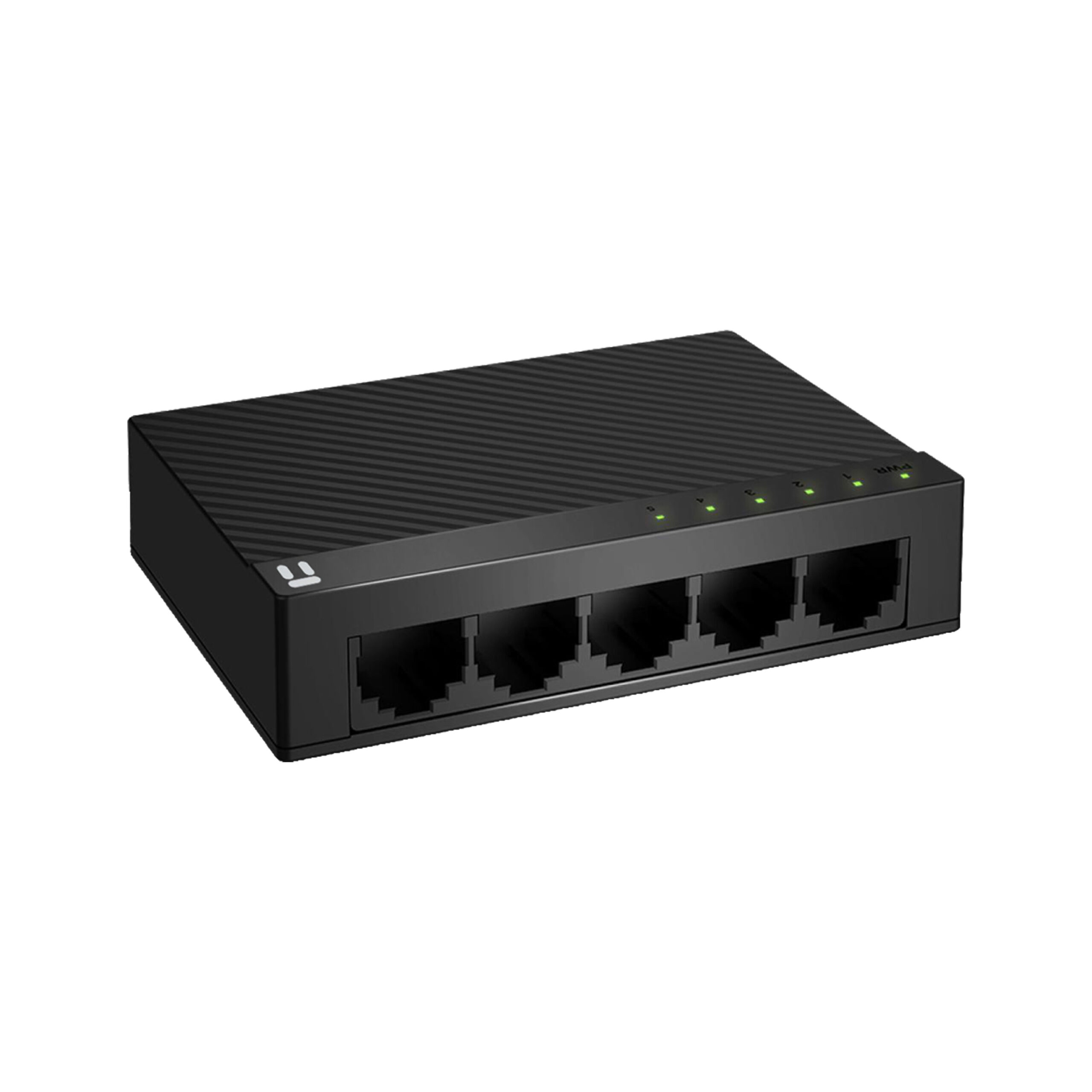

ST3105C
5 Port Desktop Ethernet Switch
- Tiêu chuẩn: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control
- 5 * 10/100M RJ45 port
- Bộ nhớ lưu trữ MAC: 2K
- Nguồn: DC 5V/0.6A
- Kích thước (mm): 85* 75 * 22
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Hardware
| Interface | 5 * 10/100M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | PWR, 1-5 |
| Power Supply | DC 5V/600mA(Output) |
| Dimensions (L x W x H ) | 85* 75 * 222 mm |
Switching Features
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Data Transmission Rate | 10/100Mbps(Half-duplex) 20/200Mbps(Full-duplex) |
| MAC Address Table | 2K |
Others
| Certification | FCC, CE, BSMI |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -20℃~70℃ Operating Humidity: 5%~90% non-condensing S torage Humidity: 5%~90% non-condensing |
| Package | 1 * ST3105C 1 * Quick Installation Guide 1 * Power Adapter |
