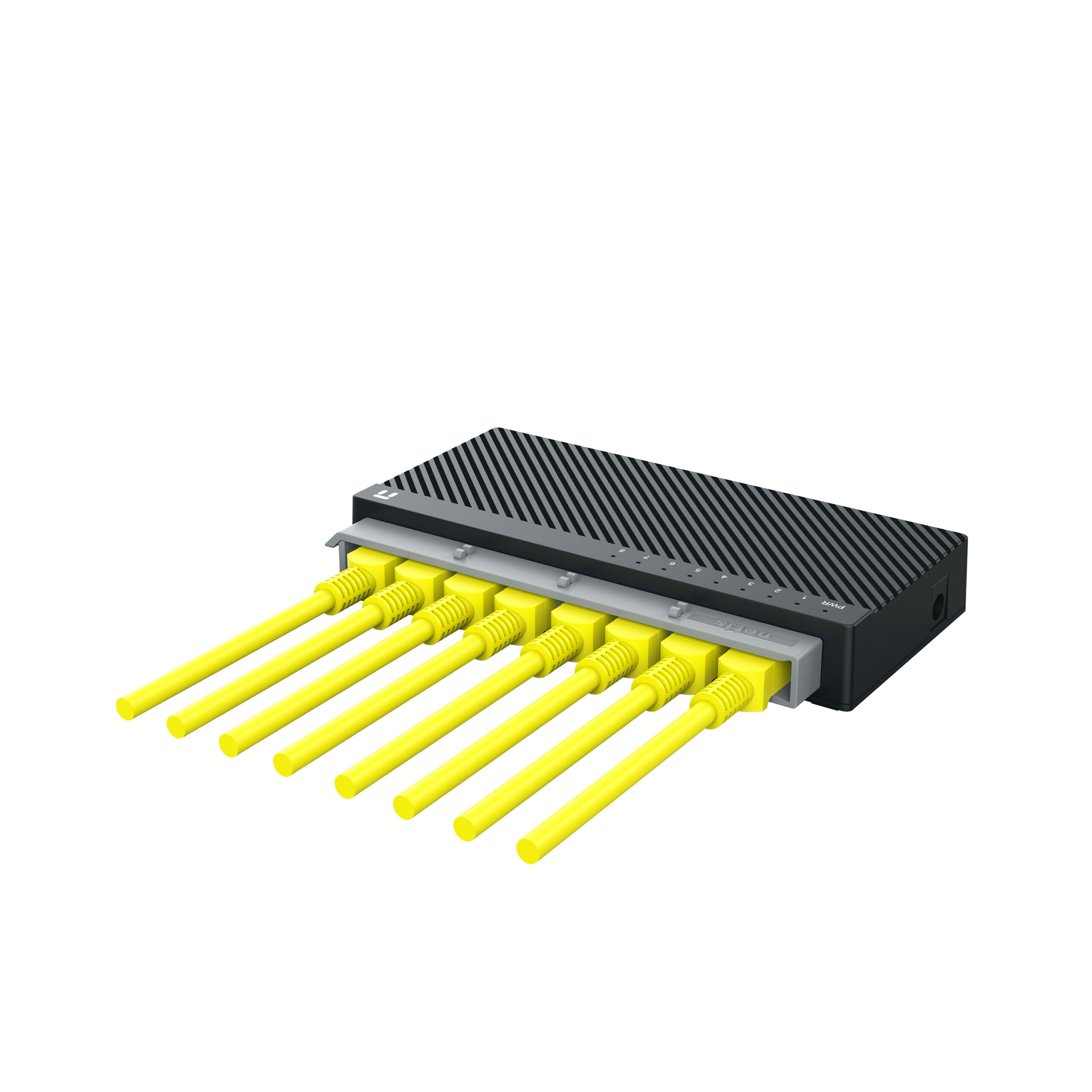

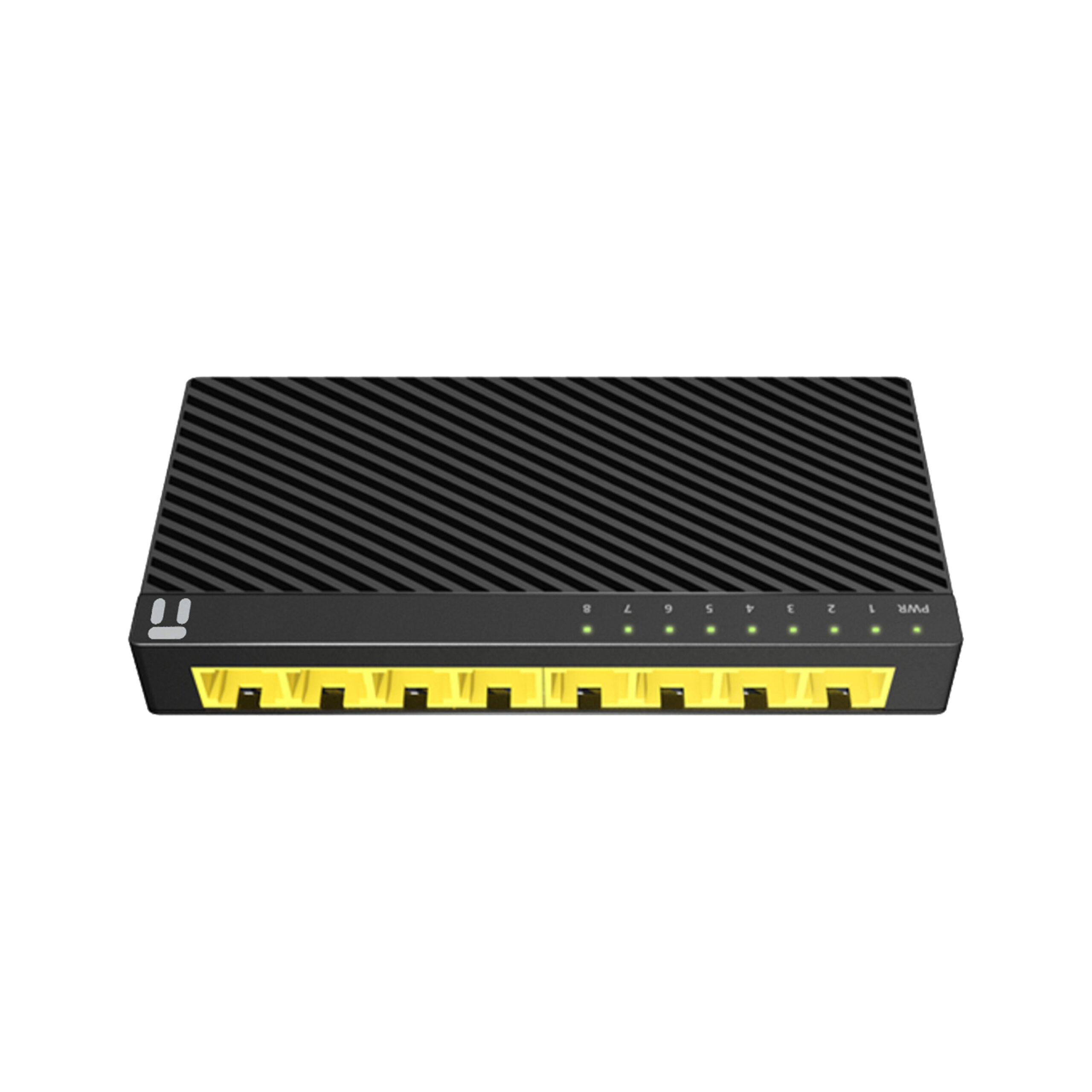

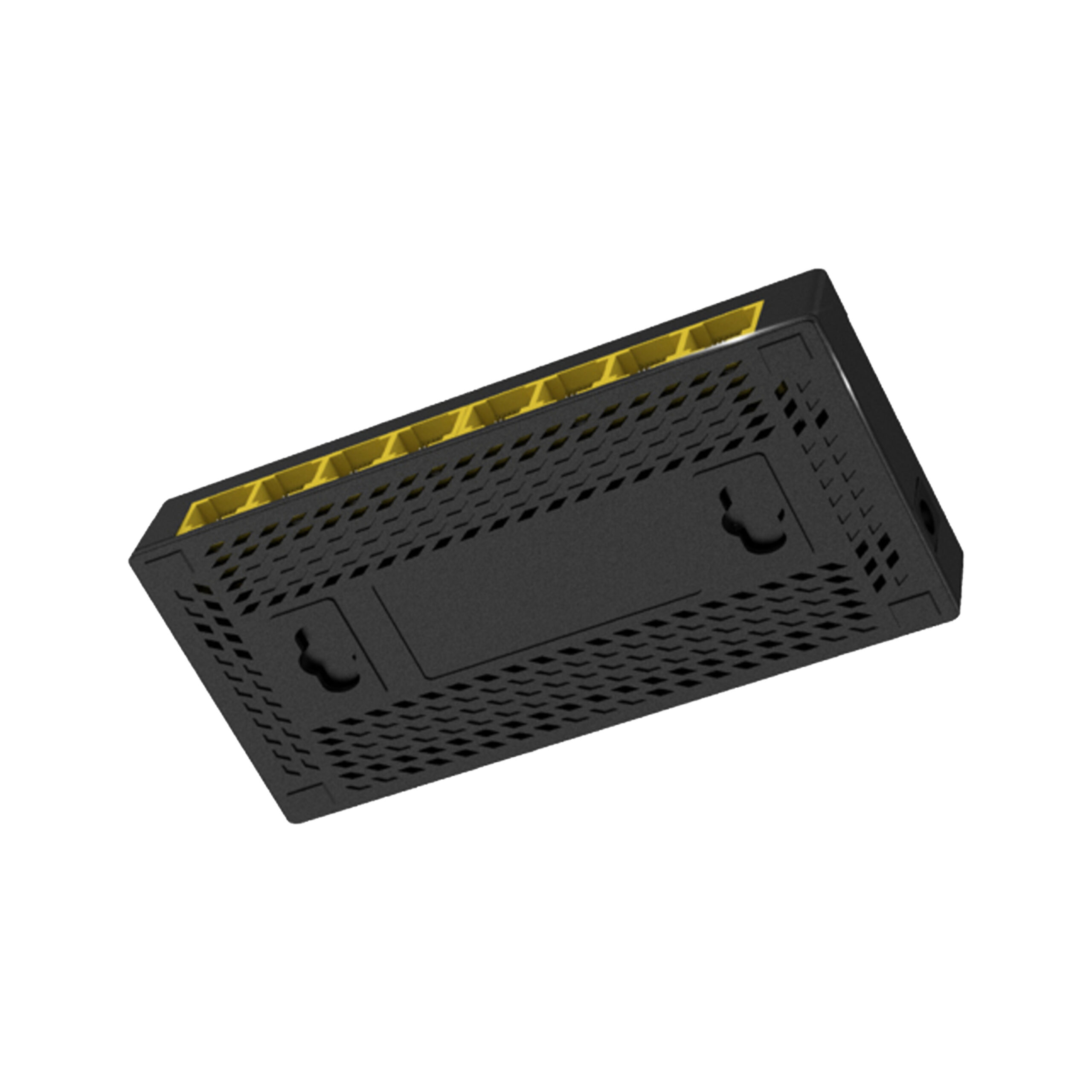

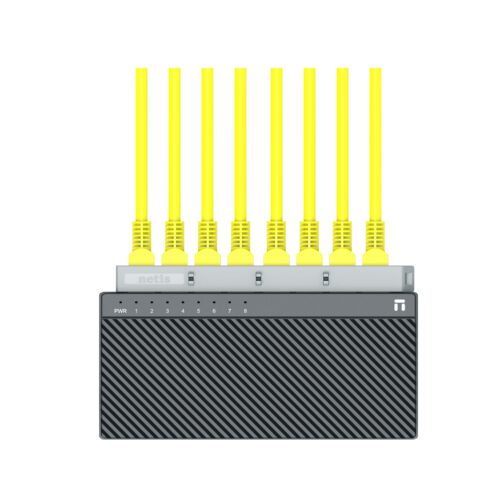

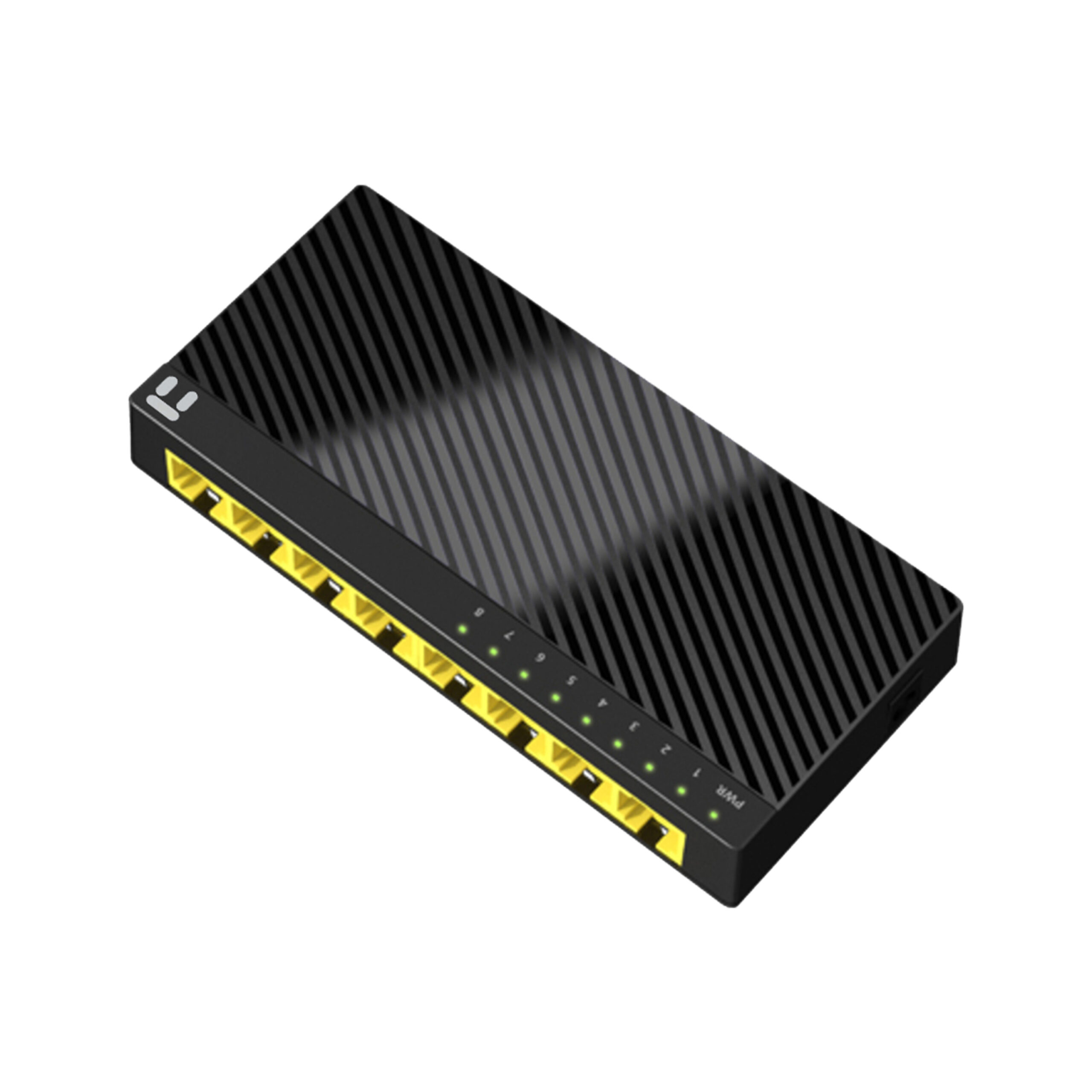

ST3108GC
8 Port Gigabit Desktop Ethernet Switch
- Tiêu chuẩn: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Bast-T
- 8 * 10/100/1000M RJ45 port
- Bộ nhớ lưu trữ MAC: 4K
- Khả năng chuyển đổi: 16Gbps
- Nguồn: DC 5V/0.6A
- Kích thước (mm): 88 * 63 * 21
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Hardware
| Interface | 8* 10/100/1000M T ports |
| LED | PWR, LAN1-LAN8 |
| Power Supply | DC 5V/800mA (Output) |
| Dimensions (L x W x H ) | 88 * 63 * 21 mm |
| Cabling Type | 10Base-T: UTP Cat.3 or up 100Base-TX: UTP Cat.5 or up 1000Bast-T: UTP Cat.5 or up |
Software
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Bast-T |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Switch Architecture | Non-blocking |
| Data Transmission Rate | 10/100Mbps(Half-duplex) 20/200/2000Mbps(Full-duplex) |
| MAC Address Table | 4K |
Others
| Certification | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
| Package | 1* ST3108GC 1* 5V/800mA Power Adapter 1* Quick Installation Guide |
