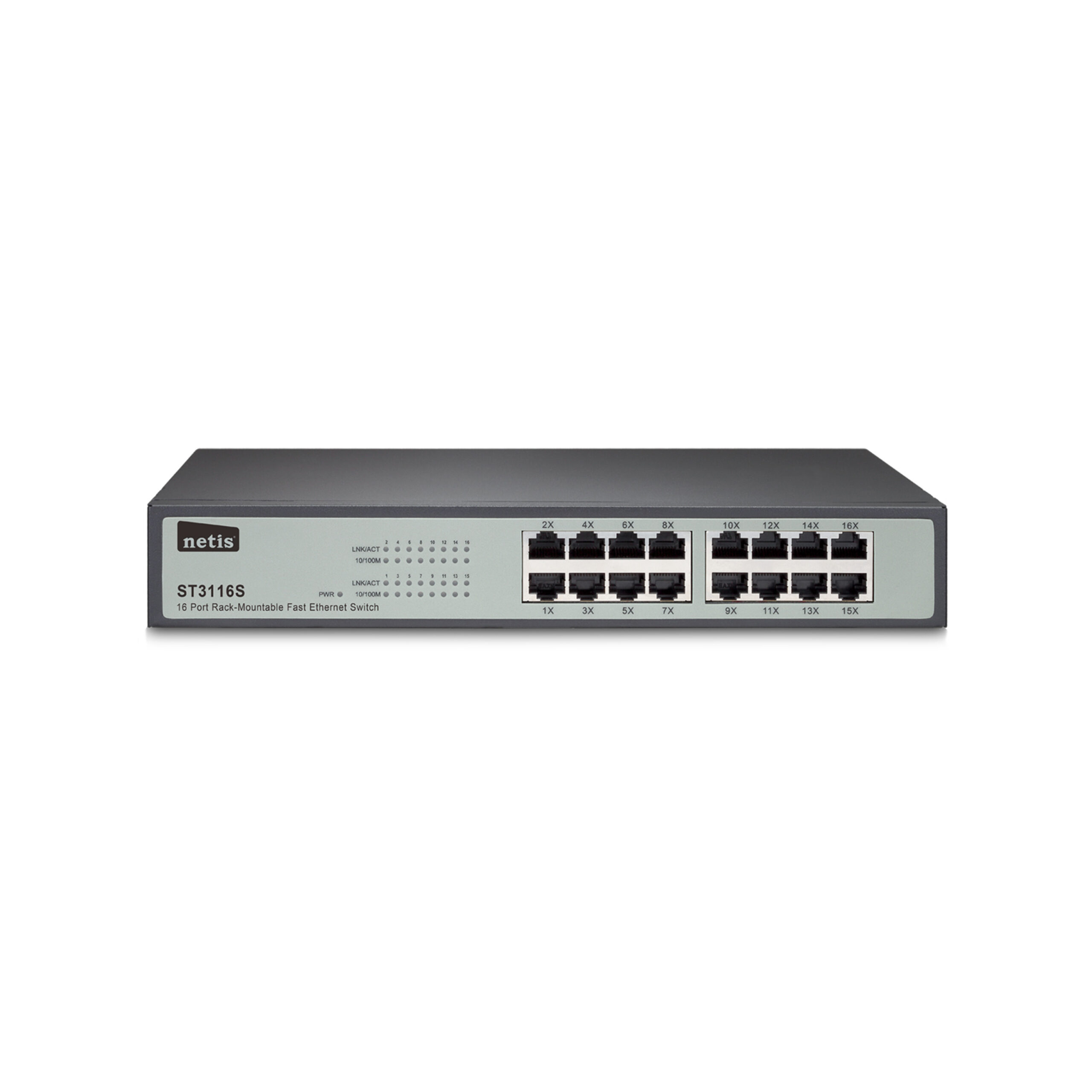

ST3116S
16 Port Rack-mountable Ethernet Switch
- Tiêu chuẩn: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az
- 16 * 10/100M RJ45 port
- Bộ nhớ lưu trữ MAC: 8K
- Khả năng chuyển đổi: 3.2Gbps
- Nguồn: DC 9V/0.5A
- Kích thước (mm): 280 * 173 * 44
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Hardware
| Interface | 16 * 10/100M bps RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | PWR, 1X-16X |
| Power Supply | DC 9V/500mA(Output) |
| Dimensions (L x W x H ) | 230 * 230 * 70 mm |
Switching Features
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Data Transmission Rate | 10/100Mbps(Half-duplex) 20/200Mbps(Full-duplex) |
| Switching Fabric Capacity | 3.2Gbps |
| Jumbo Frame | 2KB |
| MAC Address Table | 8K, auto-learning & auto-aging |
Others
| Certification | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -20℃~70℃ Operating Humidity: 5%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package | 1 * ST3116P 1 * Quick Installation Guide 1 * Power Adapter |
