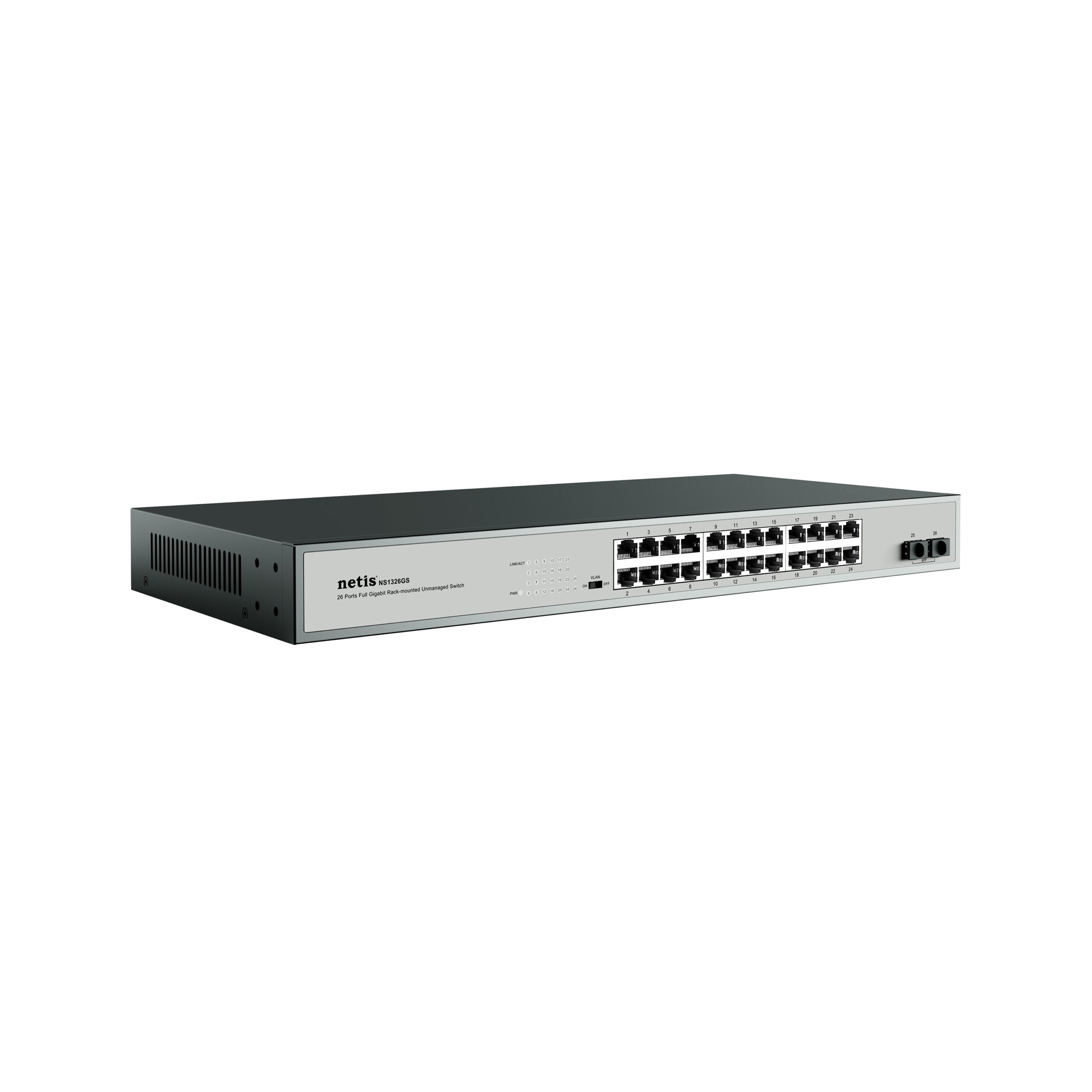

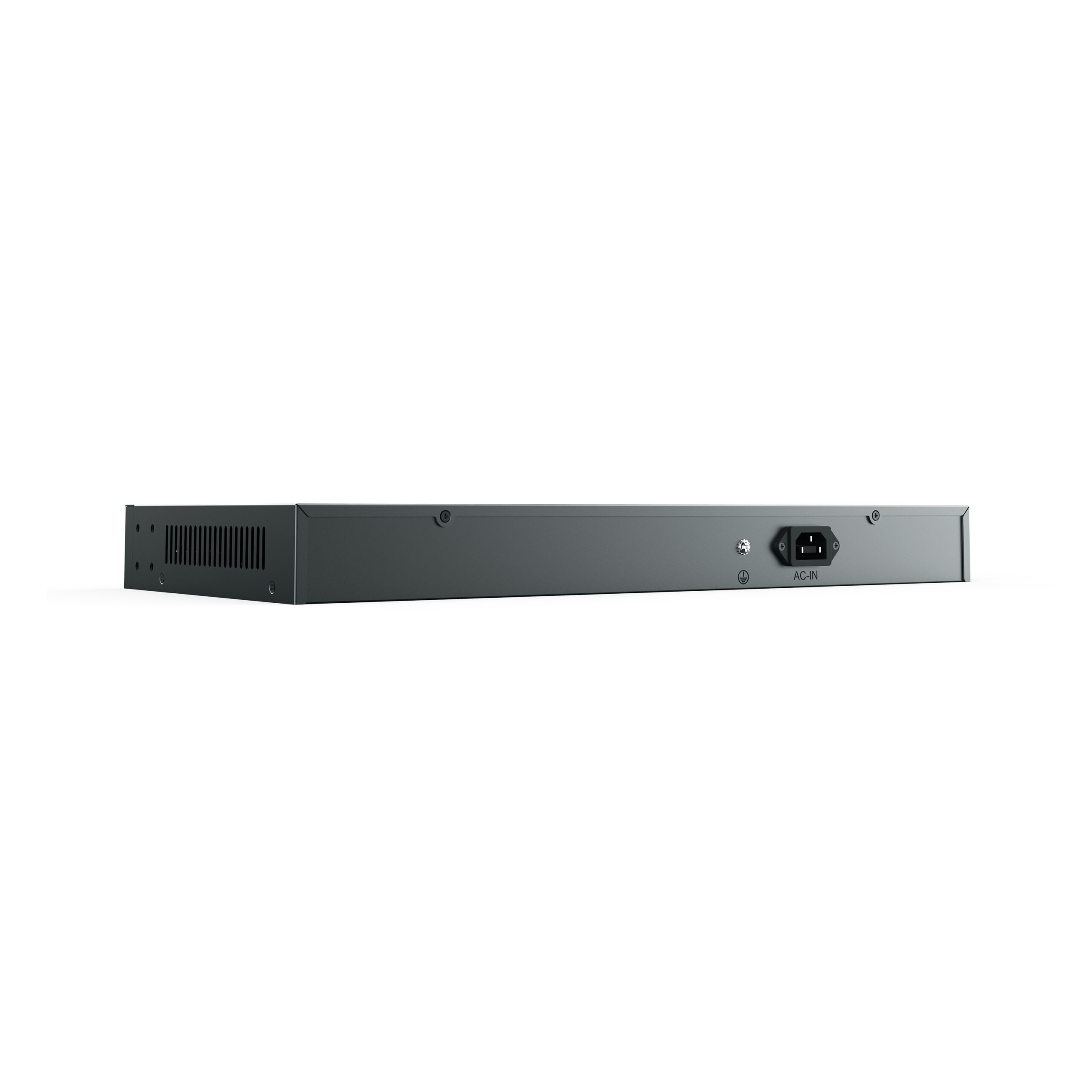

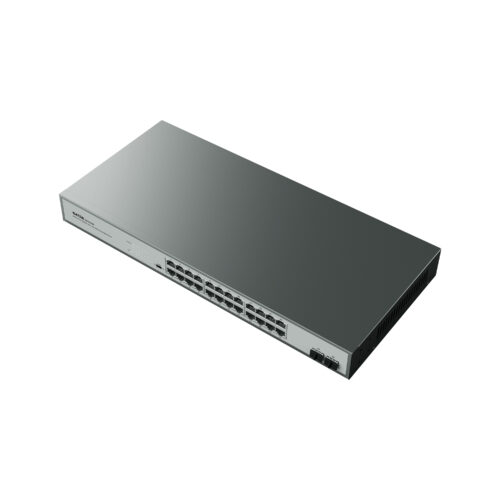

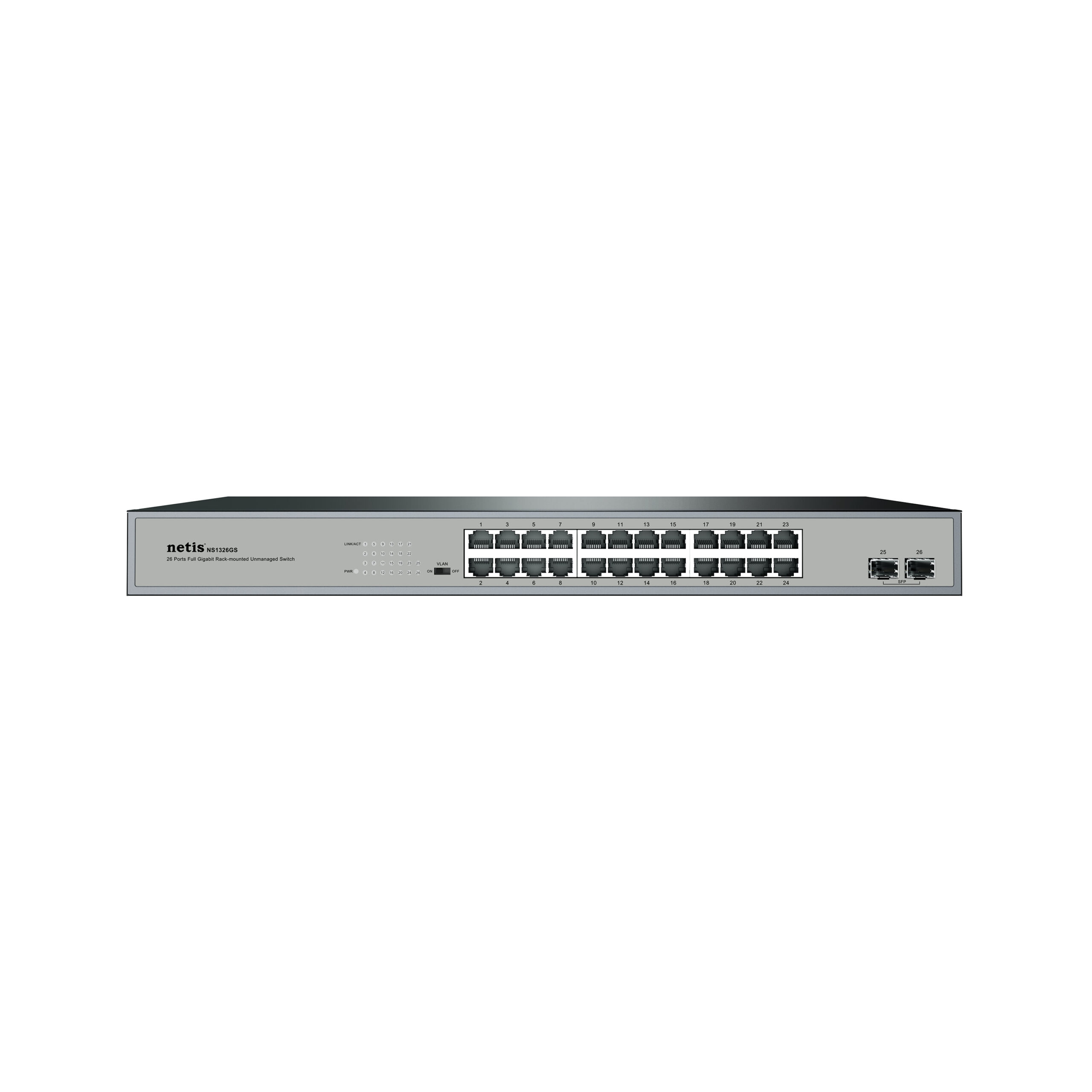

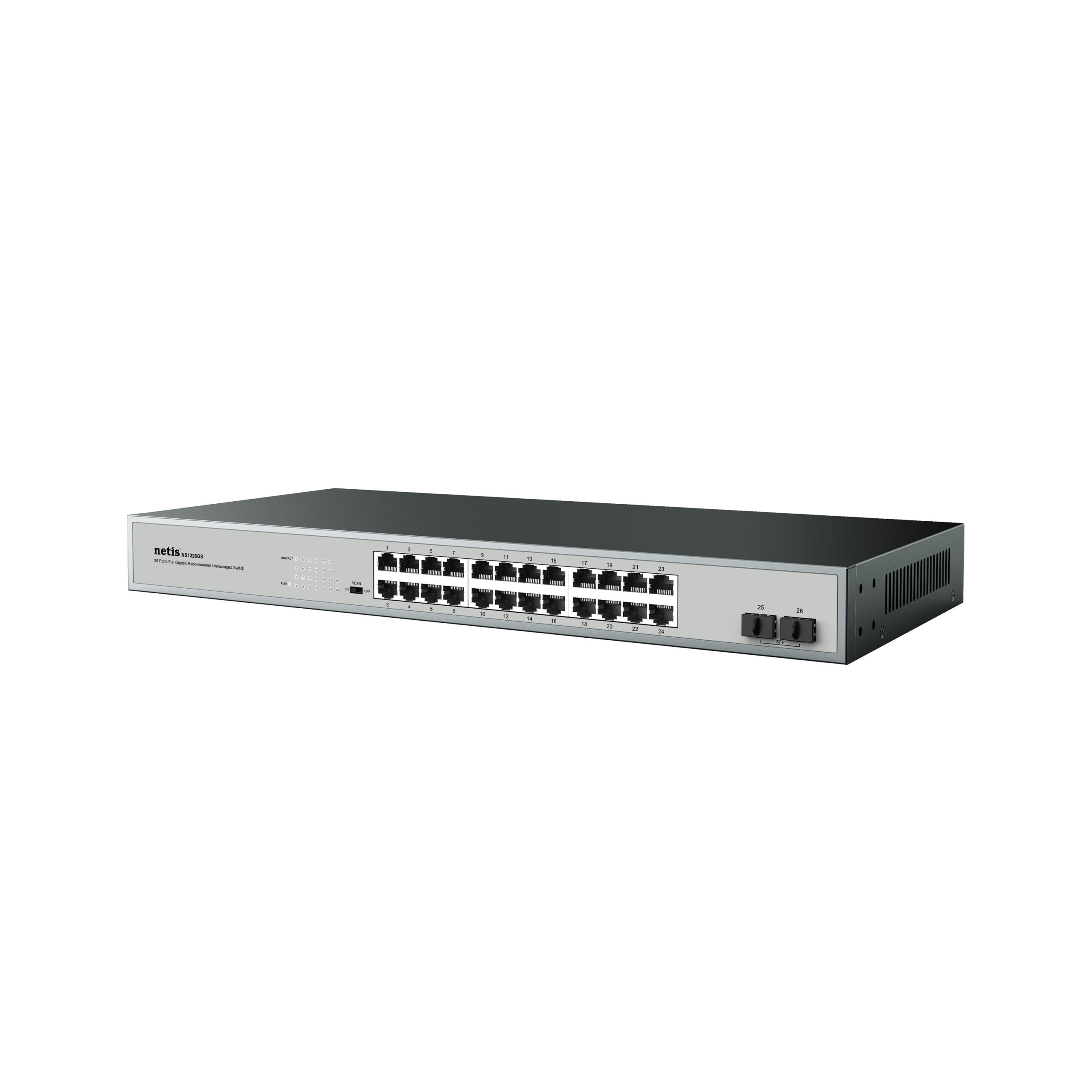

ST3126GS-D
24 Port Gigabit Rack-mountable Ethernet Switch
- Tiêu chuẩn: IEEE802.3,IEEE802.3u,IEEE802.3z ,IEEE802.3x
- 24 * 10/100/1000M RJ45 port + 2 * gigabit SFP
- Bộ nhớ lưu trữ MAC: 2K
- Khả năng chuyển đổi: 52Gbps
- Nguồn: 100-240 V AC/50-60Hz
- Kích thước (mm): 280 * 173 * 44
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
Hardware
| Interface | 24 * 10/100/1000M RJ45 port
2 * gigabit SFP |
| LED | PWR
1X-26X |
| Power Supply | Built-in supply the 12V/1A power |
| Dimensions (L x W x H ) | 528 * 478 * 316mm |
Software
| Standard | IEEE802.3,IEEE802.3u,IEEE802.3z ,IEEE802.3x |
| Backplane bandwidth | 52G |
| Packet forwarding rate | 38.68Mbps |
| Data Transmission Rate | 10Mbps(Half-duplex and Full-duplex)
100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
| Model | Normal mode (default)
Port VLAN(On):Port Vlan function is enabled: Ports 1-24 are isolated from each other and can only communicate with SFP1 and SFP2. SFP1 and SFP2 are able to communicate freely. |
Others
| Environment | Operating Temperature: 0℃~40℃
Storage Temperature: -20℃~70℃ Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~90% RH non-condensing |
