TIC2A32SA-F7-4F6AC-I1

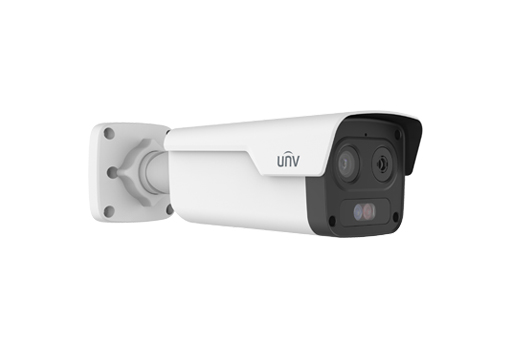

Thermal & Optical Dual-spectrum Bullet Network Camera
- Hình ảnh quang phổ kép (module nhiệt và camera)
- Module cảm biến nhiệt hỗ trợ phát hiện cháy, phát hiện khói và khu vực lá chắn lửa
- Module cảm biến nhiệt hỗ trợ phát hiện nhiệt độ và theo dõi nhiệt độ bất thường
- Camera hỗ trợ nhận dạng khói bụi, có thể giúp xác nhận lại báo cháy
- Hỗ trợ báo động bằng âm thanh và ánh sáng, tích hợp đèn cảnh báo màu đỏ và xanh
- Ultra 265, H.265, H.264, MJPEG
- Camera độ phân giải 4MP (2688*1520)@30fps
- Module nhiệt độ phân giải 960P@30fp
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| TIC2A32SA-F7-4F6AC-I1 | TIC2A32SA-F3-4F4AC-I1 | TIC2A32SA-F10-4F8AC-I1 | |
| Camera | |||
| Sensor-Optical | 1/2.8″ CMOS | ||
| Min. Illumination-Optical | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002 lux(F1.6,AGC ON) 0 lux with IR |
||
| Day/Night-Optical | IR-cut filter with auto switch (ICR) | ||
| Sensor-Thermal | Vanadium Oxide Uncooled Focal Plane Arrays | ||
| Original Resolution-Thermal | 256*192 | ||
| NETD | < 50 mk @ F1.0 @ 25 ℃ | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s |
||
| WDR | 120dB | ||
| S/N | >56dB | ||
| Lens | |||
| Lens Type-Optical | 6.0 mm | 4mm | 8.0 mm |
| Iris-Optical | F1.6 | ||
| Lens Type-Thermal | 7.0 mm | 3.2 mm | 10.0 mm |
| DORI | |||
| DORI Distance (Detect)-Optical | 135.0m(442.9ft) | 90.0m(295.3ft) | 180.0m(590.6ft) |
| DORI Distance (Observe)-Optical | 54.0m(177.2ft) | 36.0m(118.1ft) | 72.0m(236.2ft) |
| DORI Distance (Recognize)-Optical | 27.0m(88.6ft) | 18.0m(59.1ft) | 36.0m(118.1ft) |
| DORI Distance (Identify)-Optical | 13.5m(44.3ft) | 9.0m(29.5ft) | 18.0m(59.1ft) |
| Illuminator | |||
| IR Range-Optical | 50m | 50m | 40m |
| Light On/Off Control | Auto/Manual | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| Video Resolution-Optical | 4MP(2688*1520), Max 30fps | ||
| Video Resolution-Thermal | 960P(1280*960), Max 30fps | ||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | ||
| U-code | Support | ||
| ROI | Up to 8 areas | ||
| Video Stream | Triple Streams | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | ||
| Image | |||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise | ||
| Defog | Digital Defog | ||
| Palette-Thermal | white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce | ||
| Intelligent | |||
| Smart Intrusion Prevention | Thermal or Optical channel: Support False Alarm Filtering: Line Crossing Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection | ||
| Smoke and Fire Detection | Optical channel support detecting smoke directly or helping in double-check the fire alarm | ||
| Temperature Measurement Accuracy | ±8°C (±14.4°F) or ±8% (whichever is greater) | ||
| Temperature Range | Selectable between -20°C ~ 150°C (-4°F ~ 302°F) and 100°C ~ 550°C (212°F ~ 1022°F) | ||
| Temperature Detection-Thermal | Thermal channel supports rule-based temperature measurements.Supports real-time display of the highest, lowest, and average temperatures in the rule-defined area on the screen | ||
| Smoking Detection-Thermal | Thermal channel supports the detection of smoking behavior in the environment | ||
| Events | |||
| Fire Detection | Thermal channel supports the detection of fire point in the environment | ||
| Basic Detection-Optical | Motion Detection, Tampering Alarm, Audio Detection | ||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | ||
| Audio | |||
| Audio Compression | G.711U, G.711A | ||
| Audio Bitrate | 128 Kbps | ||
| Two-way Audio | Support | ||
| Suppression | Support | ||
| Sampling Rate | 16KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 512 GB | ||
| Network Storage | ANR | ||
| Network | |||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||
| Client | EZStation, EZLive, EZView | ||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||
| Interface | |||
| Audio I/O | 1/1 | ||
| Alarm I/O | 2/2 | ||
| Serial Port | 1 channel RS485 interface | ||
| Built-in Mic | Support | ||
| Built-in Speaker | Support | ||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||
| Video Output | Supported (Thermal module) | ||
| General | |||
| Power | DC12V(±25%), PoE(IEEE802.3af) | ||
| Power Consumption | Max 12W | ||
| Power Interface | Ø 5.5 mm coaxial power plug | ||
| Dimensions | 269.1 x 95.7 x 83mm(10.6″ x 3.75″ x 3.25″) | ||
| Weight | 0.95kg(2.1lb) | ||
| Working Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) | ||
| Surge Protection | 6KV | ||
| Certification | |||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||
| Safety | CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||
