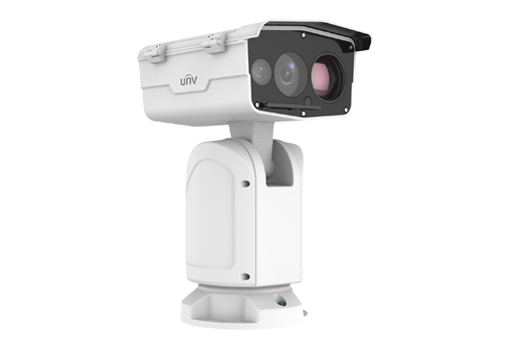

TIC7626EL-GAF75-4X56-VH1
Thermal & Optical Dual-spectrum Positioning System
- Hình ảnh quang phổ kép (module nhiệt và camera)
- Hình ảnh nhiệt hồng ngoại thụ động, đáp ứng yêu cầu giám sát ẩn và không bị ảnh hưởng bởi điều kiện thời tiết xấu như sương mù, khói, mưa, tuyết và đêm, v.v.
- Module cảm biến nhiệt hỗ trợ phát hiện cháy, kênh camera có thể liên kết với vị trí cháy và phóng to, đánh giá tình hình chính xác hơn
- Camera độ phân giải 4MP (2688*1520)@60fps
- Camera hỗ trợ ổn định con quay hồi chuyển để có hình ảnh ổn định
- Camera hỗ trợ giảm sóng nhiệt có thể làm giảm hiện tượng sóng nhiệt và cải thiện chất lượng hình ảnh
- Laser tiêu cự thay đổi: khoảng cách 800m (2624,7ft), tỷ lệ thuận với zoom quang của camera
- Gạt nước tự động cảm biến mưa, cung cấp hình ảnh rõ nét trong thời tiết khắc nghiệt
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| TIC7626EL-GAF75-4X56-VH1 | |
| Camera | |
| Sensor-Optical | 1/1.8″ CMOS |
| Min. Illumination-Optical | Colour : 0.0003lux(F1.2, AGC ON) B/W : 0.0001lux(F1.2, AGC ON) 0 Lux with Laser |
| Day/Night-Optical | IR-cut filter with auto switch (ICR) |
| Sensor-Thermal | Vanadium Oxide Uncooled Focal Plane Arrays |
| Original Resolution-Thermal | 640*512 |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Lens Type-Optical | 6 ~ 336 mm |
| Optical Zoom-Optical | 56X |
| Iris-Optical | F1.2 ~ F4.6 |
| Field of View (H)-Optical | 57.9°~ 1.6° |
| Field of View (V)-Optical | 34.6°~ 0.9° |
| Field of View (D)-Optical | 71.2°~ 1.9° |
| Lens Type-Thermal | 75mm |
| Field of View (H)-Thermal | 6.1° |
| Field of View (V)-Thermal | 4.8° |
| Field of View (D)-Thermal | 7.2° |
| DORI | |
| DORI Distance (Lens)-Optical | 6~336mm |
| DORI Distance (Detect)-Optical | 155.5m(510.1ft)~4829.4m(15844.5ft) |
| DORI Distance (Observe)-Optical | 62.2m(204.0ft)~1931.8m(6337.8ft) |
| DORI Distance (Recognize)-Optical | 31.1m(102.0ft)~965.9m(3168.9ft) |
| DORI Distance (Identify)-Optical | 15.5m(51.0ft)~482.9m(1584.4ft) |
| Illuminator | |
| VF Laser Range-Optical | Up to 800m(2624.7ft) |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Resolution-Optical | Main Stream: 4MP (2688×1520): Max.60fps; Sub Stream: 2MP (1920×1080): Max.60fps; Third Stream: D1(720 x 576): Max.60fps |
| Video Resolution-Thermal | 1080P(1920*1080), Max.30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| ROI | Up to 8 areas |
| Video Stream | Triple Streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| Image | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| Defog | Digital Defog, Optical Defog |
| Palette-Thermal | white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce |
| Intelligent | |
| Smart Intrusion Prevention | Thermal or Optical channel: Support False Alarm Filtering: Line Crossing Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
| Smoke and Fire Detection | Optical channel support detecting smoke directly or helping in double-check the fire alarm |
| Auto Tracking | Thermal or Optical channel:Support tracking targets automatically, capturing detailed information at a distance |
| Events | |
| Fire Detection | Thermal channel supports the detection of fire point in the environment and link the optical camera zoom tracking and alarm |
| Basic Detection-Optical | Motion Detection, Tampering Alarm, Audio Detection |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| PTZ | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.02°/s ~ 140°/s |
| Tilt Range | -90° ~ 45° |
| Tilt Speed | 0.02° ~ 50°/s |
| Number of Presets | 1024 |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 7/2 |
| Serial Port | 1 channel RS485 interface |
| Network | 1 x RJ45 10M/100M/1000M Base-TX Ethernet + 1 x 100M/1000M SFP |
| Video Output | Supported (Thermal module) |
| General | |
| Power | DC 48V±25%、DC 24V±15%、AC 24V±25% |
| Power Consumption | Max 135W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | 526mm x 283mm x 368mm(20.7″ x 11.1″ x 14.5″) |
| Weight | 17.12kg(37.74lb) |
| Working Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
