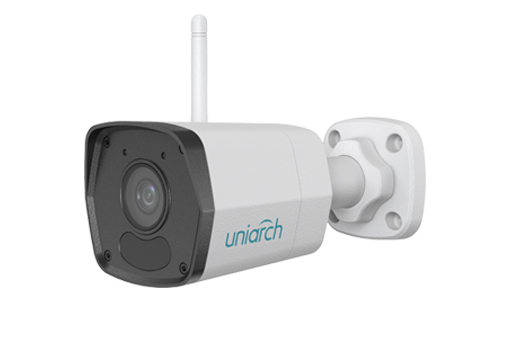

Uho-B0A-M2F3(4)
Camera Wi-Fi cố định ngoài trời 2MP
- 2MP (1920*1080)@25/20fps
- Ultra 265, H.265, H.264
- Tích hợp Micro
- Smart IR, khoảng cách hồng ngoại 30m (98ft)
Hỗ trợ tư vấn:
Hotline: 0868 527 555
Hotline: 0868 527 555
| Uho-B0A-M2F3 | Uho-B0A-M2F4 | |||||
| Camera | ||||||
| Sensor | 1/2.9″, 2.0 megapixel, progressive scan, CMOS | |||||
| Minimum Illumination | Colour: 0.01 lux (F2.1 AGC ON) 0 lux with IR on |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | |||
| S/N | >52dB | |||||
| WDR | DWDR | |||||
| Lens | ||||||
| Lens Type | 2.8mm@F2.1 | 4.0mm@F2.1 | ||||
| Iris | Fixed | |||||
| Field of View (H) | 101.1° | 83.7° | ||||
| Field of View (V) | 55.0° | 44.6° | ||||
| Field of View (D) | 111.0° | 89.1° | ||||
| DORI | ||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |
| 2.8mm | 45.0 | 18.0 | 9.0 | 4.5 | ||
| 4.0mm | 64.3 | 25.7 | 12.9 | 6.4 | ||
| Illuminator | ||||||
| IR Range | Up to 30m (98 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||
| U-code | Support | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Dual streams | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180° | |||||
| Dewarping | N/A | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Human body detection, Motion detection, Audio detection, Tampering alarm | |||||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | N/A | |||||
| Suppression | Support | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 128GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | |||||
| Compatible Integration | API , SDK | |||||
| User/Host | Up to 6 users. 2 user levels: administrator and common user | |||||
| Client | Uniarch Client Uniarch APP |
|||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||
| Wi-Fi | ||||||
| Wireless Standards | IEEE802.11b/g/n | |||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |||||
| Channel Bandwidth | 20 MHz Support | |||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
|||||
| Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | |||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps |
|||||
| Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps (Typical) |
|||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps |
|||||
| Interface | ||||||
| Audio I/O | N/A | |||||
| Alarm I/O | N/A | |||||
| Built-in Mic | Support | |||||
| Built-in Speaker | N/A | |||||
| WIFI | Support | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | N/A | |||||
| Certifications | ||||||
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
|||||
| Safety | CE LVD (EN 62368-1) | |||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||
| Protection | IP67 (IEC 60529) | |||||
| General | ||||||
| Power | DC 12V±25% | |||||
| Power consumption: Max 3.6W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (L x W x H) | 168 × 88 ×72 mm (6.6” × 3.5” × 2.8”) | |||||
| Weight | 0.28 kg (0.62 lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Reset Button | Support | |||||
| LED indicator | 1, red/green | |||||
